eikon e1s
Service and repair guide

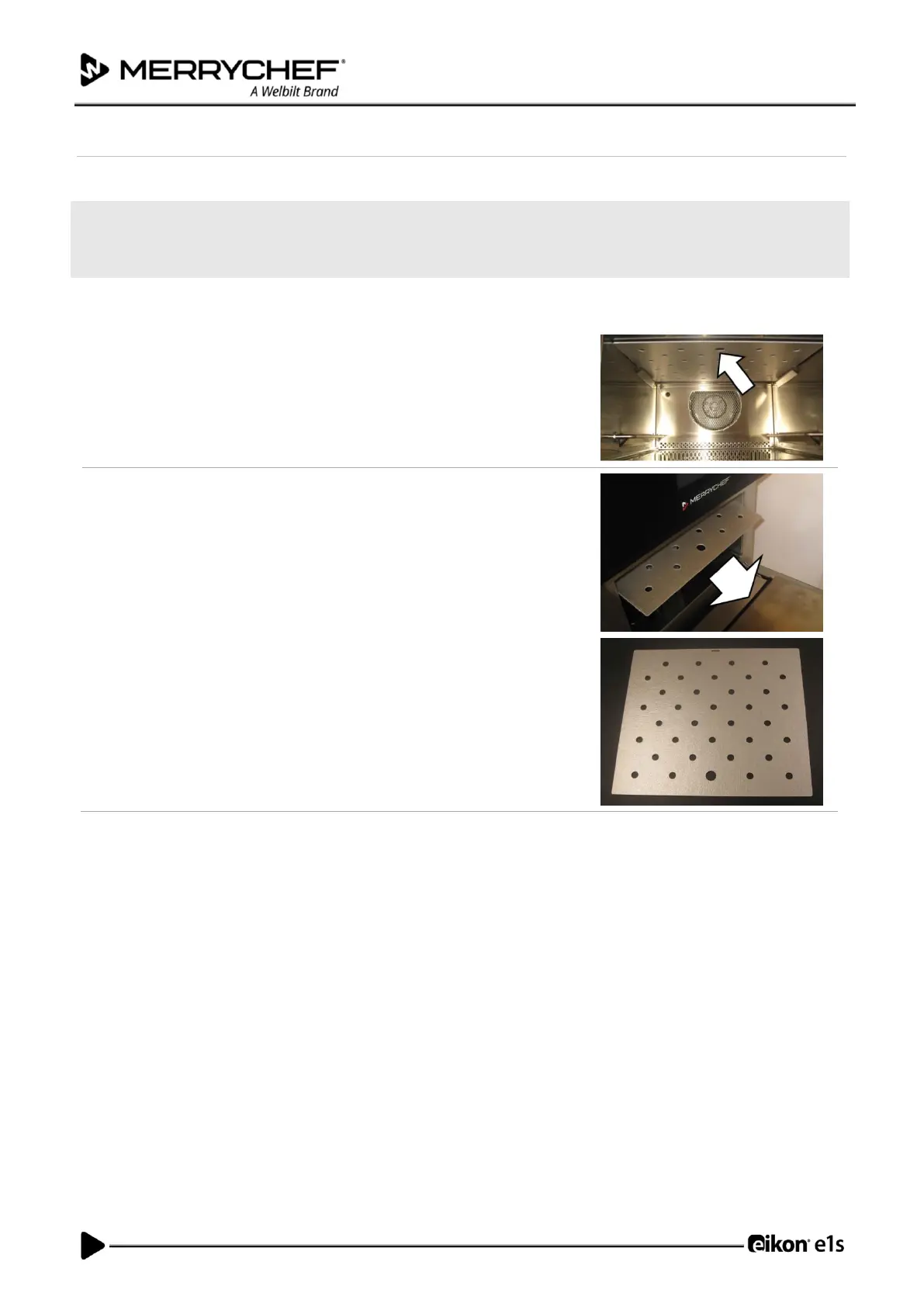

Replacing the impinger plate
Requirements and tools
Check that the following requirements have been met:
• The appliance is cool
• Tools required – none
Removing the impinge plate
1.
The impinger plate rests on brackets in the upper part of the cavity.
To assist removal, a larger hole is provided at the front of the impinger plate
big enough to insert a finger.
2.
Remove the impinger plate from the cavity by pulling forward and slightly
downward.
Fitting the impinger plate
The impinger plate is fitted with the reverse action to removal, pushing until the plate slots into place.
