eikon e1s
Service and repair guide
Replacing a transformer (high voltage)
Requirements and tools
Check that the following requirements have been met:
• The appliance has been disconnected from the power supply and protective measures have been taken to ensure
the power cannot be switched on again.
• The appliance is cool.
• The casing of the appliance is removed.
• The high voltage capacitors are discharged before commencing work.
• Anti-static precautions have been taken.
Tools required:
• M8 hex socket wrench
Component location

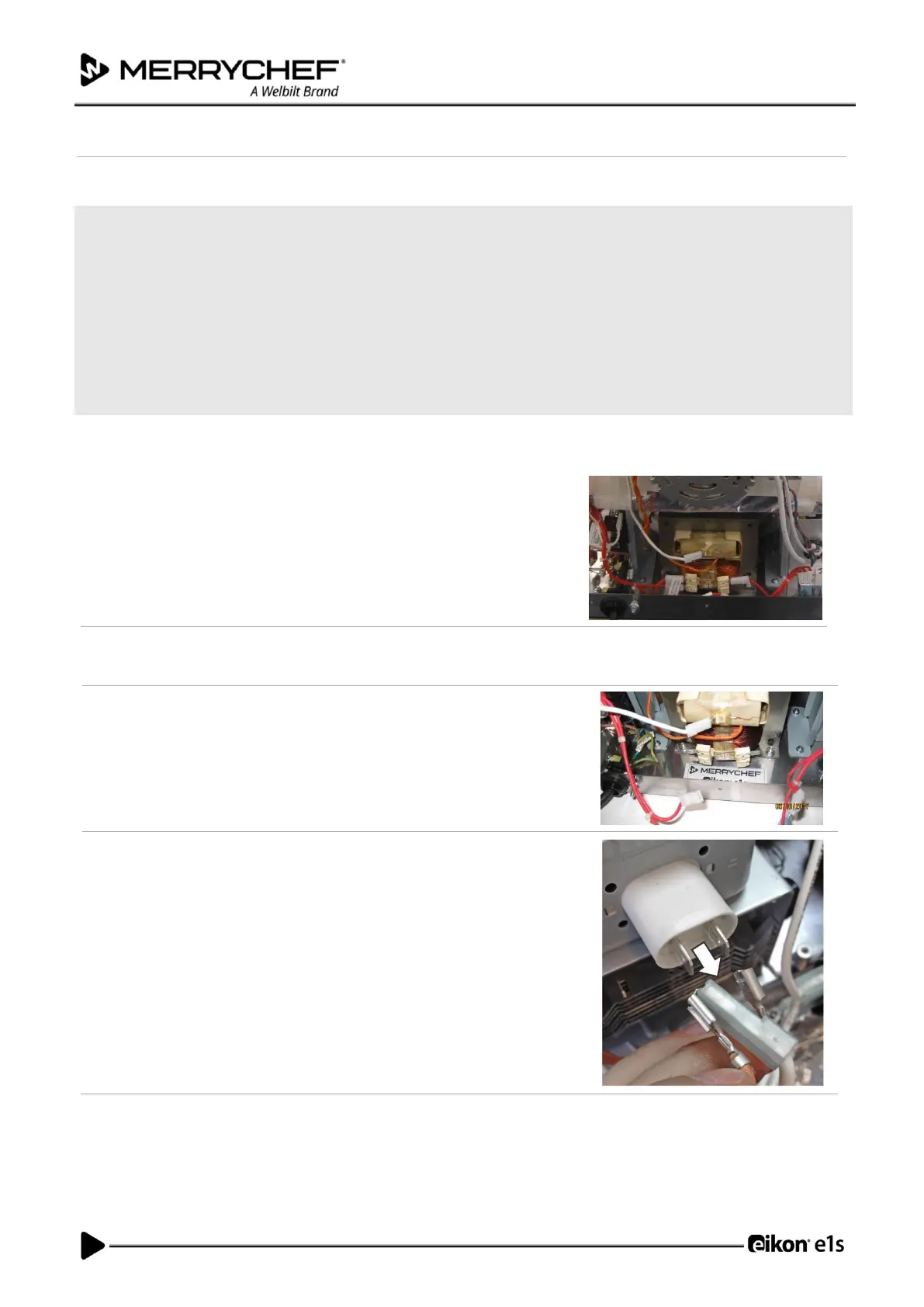

The high voltage transformer is located at the rear of the oven below the
cavity.
Removing a transformer (high voltage)
1.
Unplug all electric connections of the transformer(s).
2.
Disconnect the transformer(s) from the magnetron(s) by unplugging the
orange cables at the magnetron(s).
