Removing the convection motor and heating element
1.
To remove the convection motor assembly, the silver insulation blanket must
be peeled back to give access to the 10 x M7 nuts located at the positions
indicated in this picture.
Note: Any high-temperature tape compromised when peeling back the
insulation will need to be replaced.

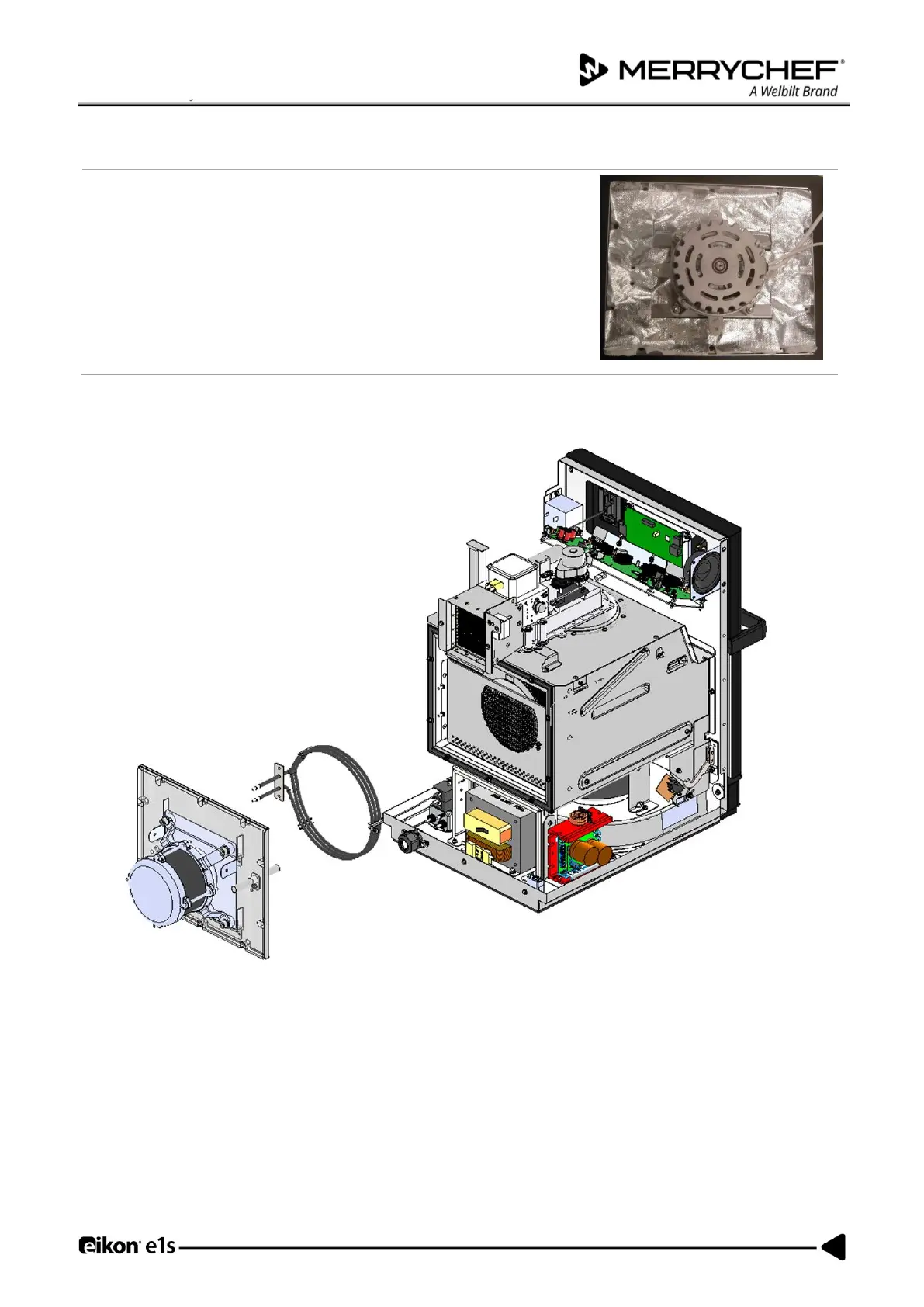

The figure below shows the convection fan assembly and element
component arrangement.
