eikon e1s
Service and repair guide

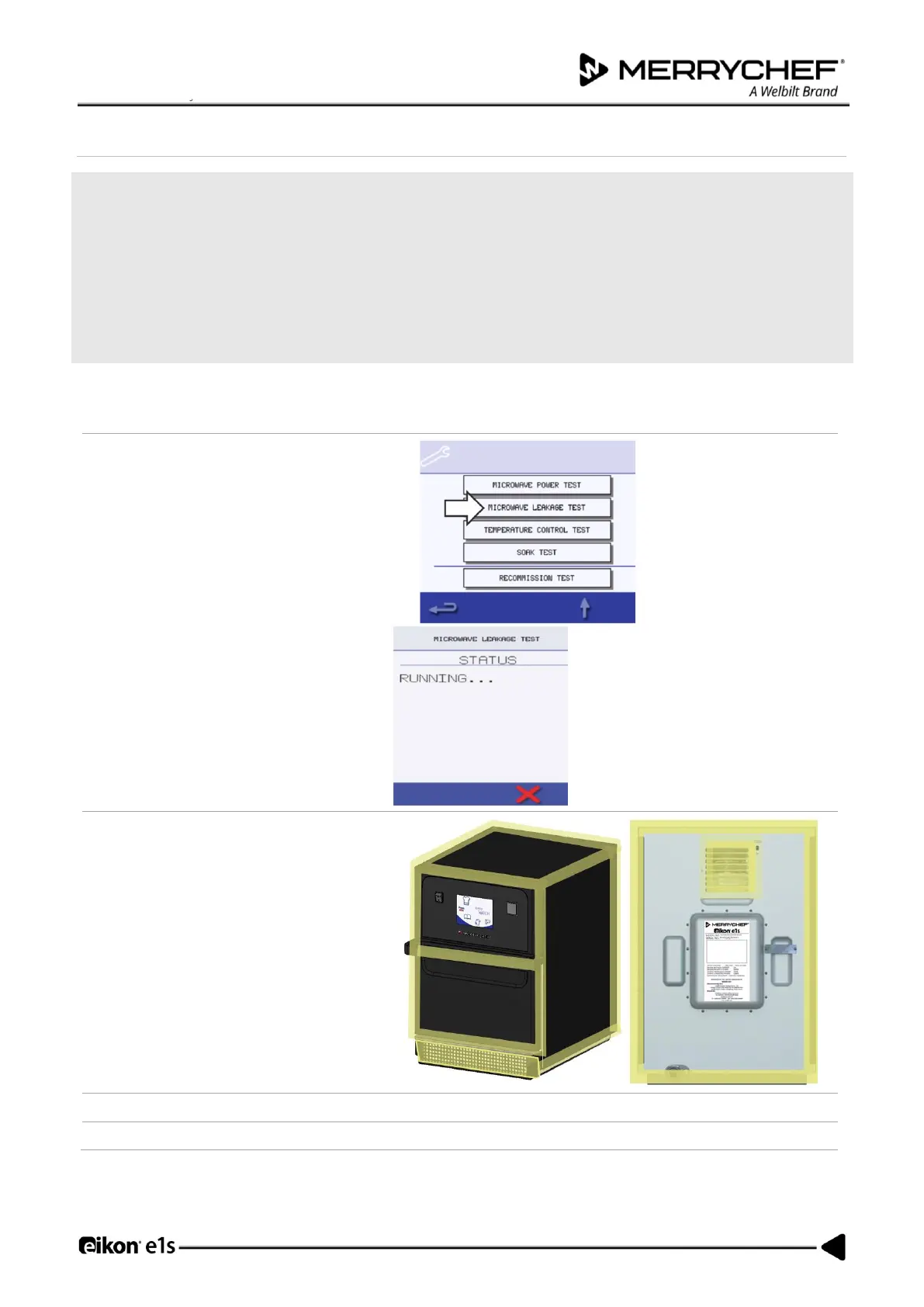

Microwave Leakage test
Follow these instructions when measuring:
• Make sure that the survey meter you are using has been calibrated and is suitable for measuring frequencies of
2,450 MHz.
• Do not exceed meter full scale deflection. The leakage meter should initially be set to the highest scale, then
adjusted down as necessary to ensure that low readings are measured on the most sensitive range.
• To prevent false readings, hold the probe on the grip provided and move at 2.5 cm/second.
• Always hold the probe at right angles to the oven and point of measurement, ensuring the probe is reading 50 mm
from the test area.
• The leakage should not exceed 5 mW/cm².
1.
Add 275ml of cold water into a 600ml microwave safe container and place it in the centre of the cavity. Then close
the appliance door.
2.
Enter Service Mode on the screen and
select ‘Microwave leakage test’ from the
appliance tests.
3.
Set the leakage meter to the appropriate
scale/range.
Move the survey meter probe across all
casework joins and vent areas including
those marked in yellow.
4.
When the magnetron circuit stops after 30 seconds, change the water and re-select the test to continue.
5.
Select the red ‘X’ on the status screen to stop the test at any time.
