eikon e1s
Service and repair guide

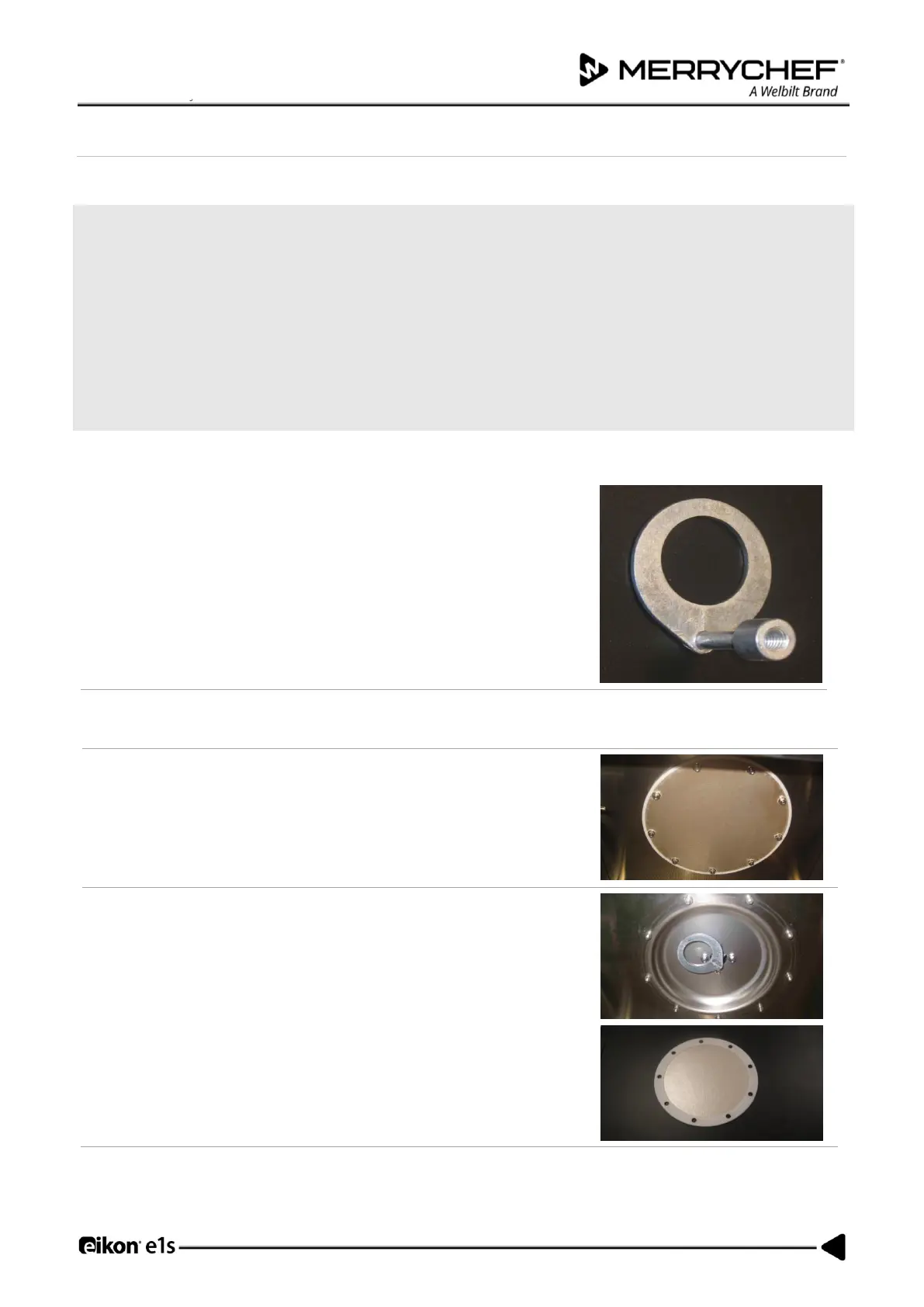

Replacing the stirrer
Requirements and tools
Check that the following requirements have been met:
• The appliance has been disconnected from the power supply and protective measures have been taken to ensure
the power cannot be switched on again.
• The appliance is cool.
• The upper casing panel of the appliance has been removed.
• The high voltage capacitors are discharged before commencing work.
• Anti-static precautions have been taken.
Tools required:
• M7 hex socket wrench
• Replacement partition plate
Component location
The stirrer is positioned inside the top of the oven cavity. To access the
stirrer the impinger plate is first removed (see above).
Removing the impinger plate (see above) reveals the partition plate.
Unfasten the nine M7 hex nuts that secure the partition plate.
The partition plate features a rubber gasket on its upper side which adheres
to the upper surface of the cavity.
The rubber gasket prevents grease-laden air from entering the space around
the cavity and so needs to be intact.
To remove the partition plate, it is necessary to first prise the gasket from
the silver mica board with a flat edge screwdriver. This will compromise the
gasket and so a replacement partition plate is required to complete the
stirrer replacement procedure.
