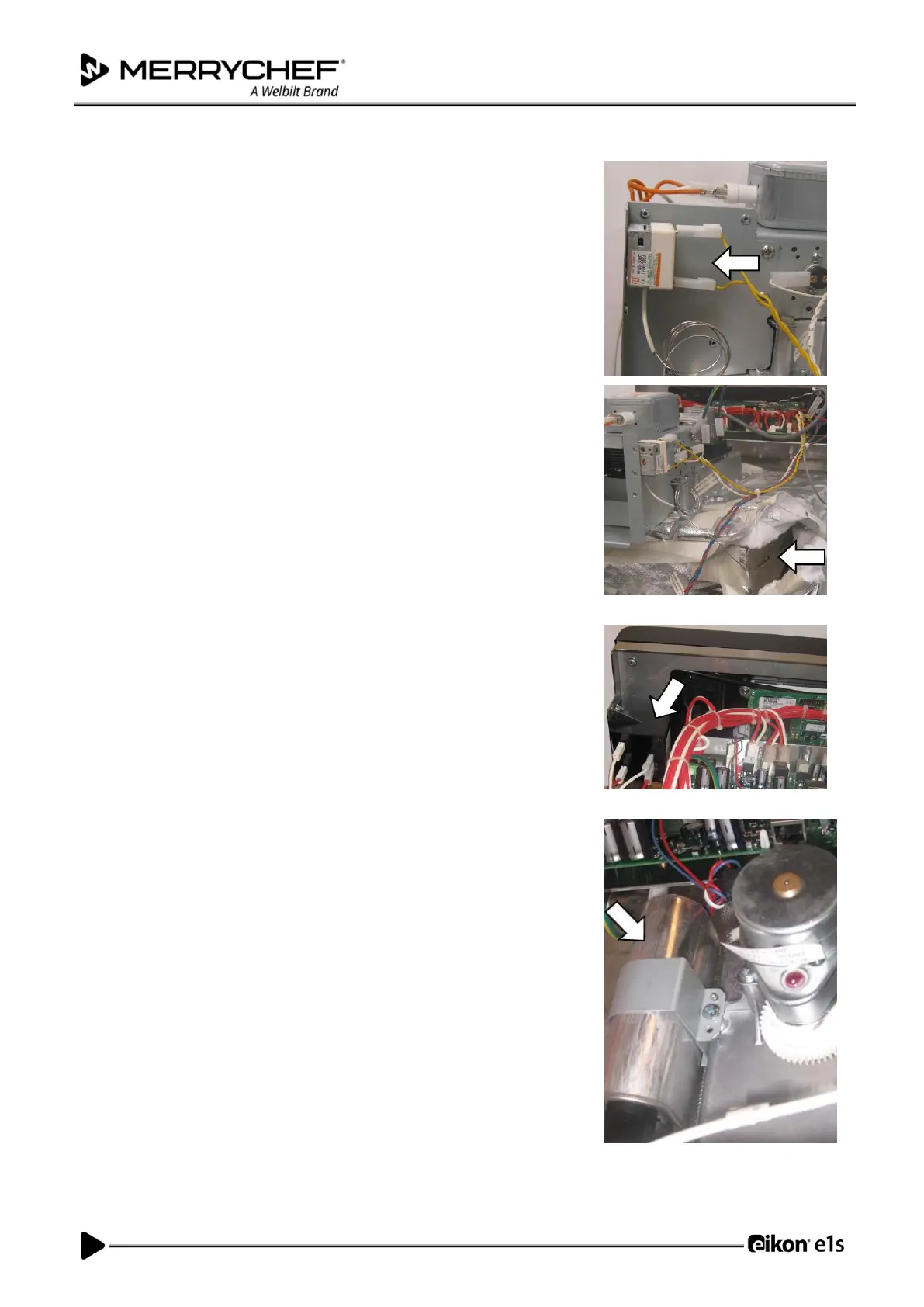

Cavity high limit
The cavity thermostat is located besides the cooling duct on the left hand side of
the oven (when looking at the oven from the rear). It continuously measures the
temperature of the cavity and switches the oven off should overheating occur.
The thermostat uses a temperature sensor which is pinned within a holder located
towards the rear of the top left edge of the cavity.
Transformer (low voltage)
The low voltage transformer is located behind the front panel in the top right
corner of the appliance.
Capacitor(s) (high voltage)
The high voltage capacitor is located on top of the cavity behind the magnetron
and is fixed by a sheet metal bracket.
