Welch Allyn CP 100 Service Manual

18 Overview Welch Allyn CP 100 and CP 200 Electrocardiograph
Moving Through the Menus

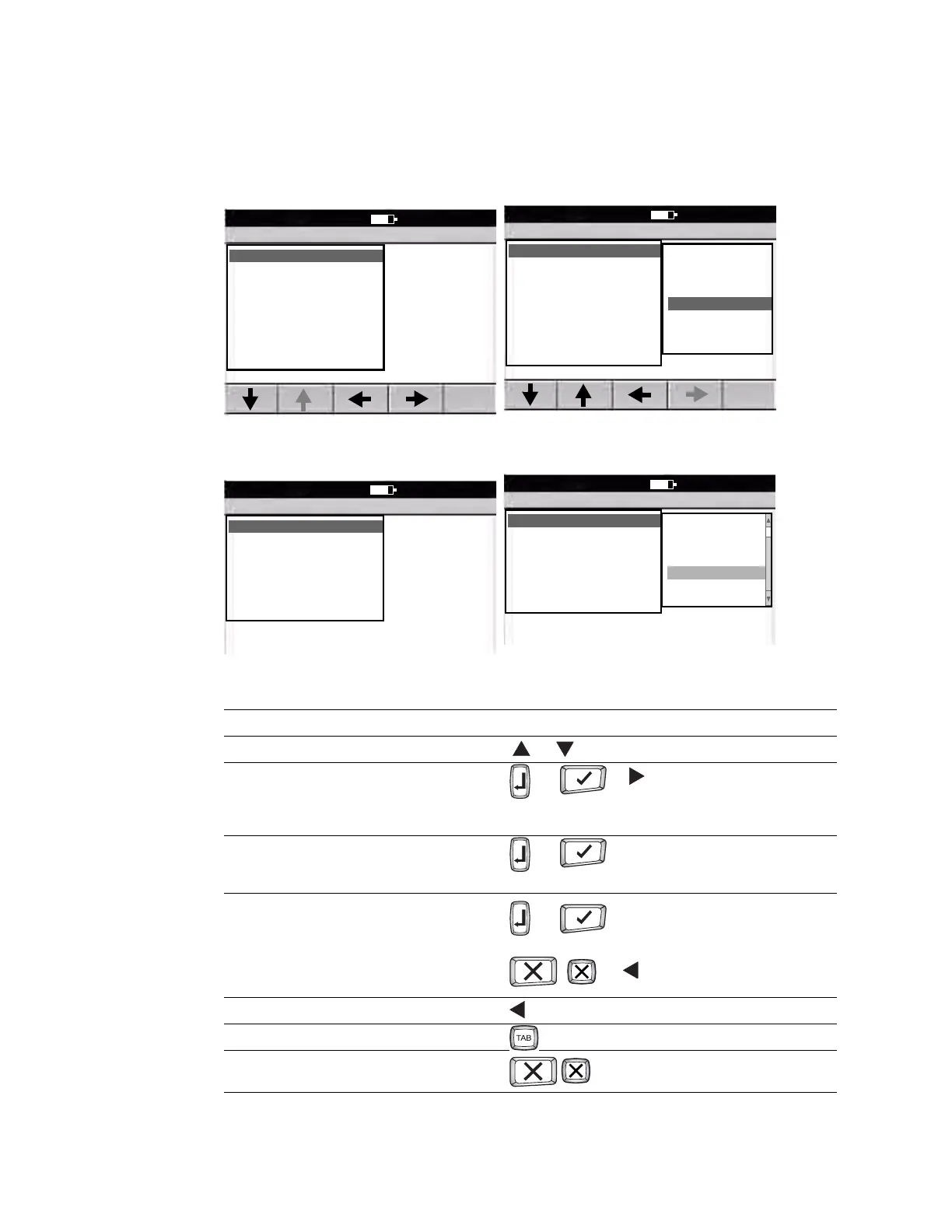

Figure 13. CP 200 Standard Menu Figure 15. CP 200 Parent Menu With Submenu
Desired Actions Keys to Press
To move up or down a list or (keyboard or softkey arrows)
To open a standard menu (Figure 13)
To move from parent menu to submenu on same
screen (Figure 15)
or or
or item’s number or letter
To perform an action
To accept data
To check or uncheck a checkbox
or
To return to parent menu from submenu on same
screen (Figure 15) or
or
To move back through the menus or zero key
To move through data-entry fields
To return to the “Main Screen” from a standard menu
(Figure 13)
Note
Keyboard and softkey arrows work the same way.
ECG Setup : Edit Auto Report 1
9:17AM Mar 16 05
1 Format
2 Interp Settings
3 Patient Data
0 Previous Menu
Edit Auto Report
9:17AM Mar 16 05
1 Format
2 Interp Settings
3 Patient Data
0 Previous Menu
Figure 14. CP 100 Standard Menu
Edit Auto Report 1 : Format
9:17AM Mar 16 05
1 Lead Arrangement
2 Rhythm Lead 1
3 Rhythm Lead 2
4 Rhythm Lead 3
5 Extended Measurements
6 Average Cycles
0 Previous Menu
3x4
3x4 +1R
3x4 +3R
6x2
12x1
6x2 50 mm/s
6x2 10 Ext.
No Print
Format
9:17AM Mar 16 05
1 Lead Arrangement
2 Rhythm Lead 1
3 Rhythm Lead 2
4 Rhythm Lead 3
5 Extended Measurements
6 Average Cycles
0 Previous Menu
3x4 +1R
3x4 +3R
6x2
12x1
6x2 50 mm/s
6x2 10 Ext.
No Print
Figure 16. CP 100 Parent Menu with Submenu
(To select the highlighted submenu
item.)
(To make no change.)
