Service Manual CP 100 and CP 200 Electrocardiograph 65
Replacing the Function Keypad Assembly (CP 200)
Procedure
1. Open unit using the Disassembly
Procedures (page 49) directions.
2. Disconnect the cables to the LCD and the
Function Keyboard. See Figure 56.
3. Remove the 5 screws holding the Function
Keypad Assembly. See Figure 58.
4. Gently lift out the Function Keypad
Assembly.

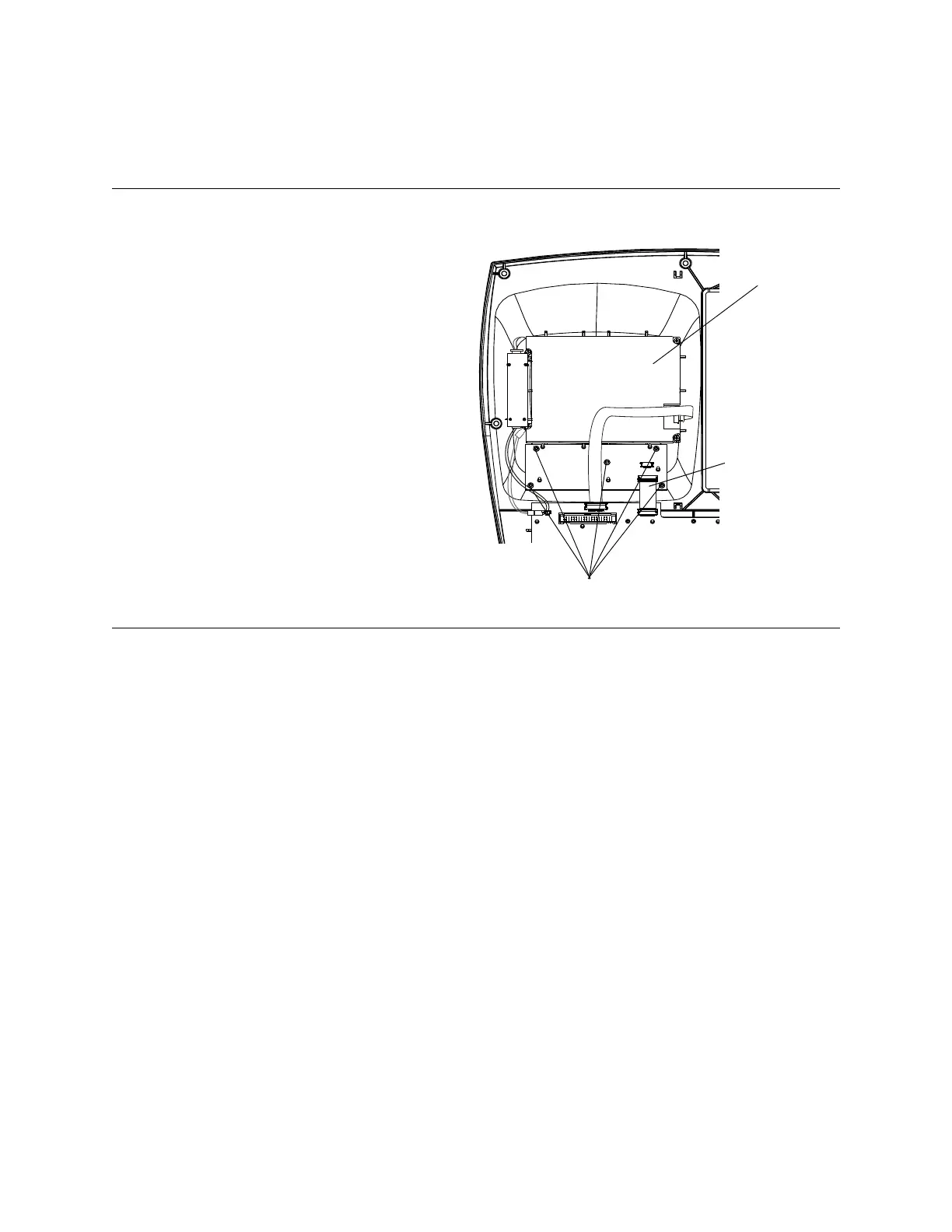

Figure 55. Replacing the Keypad Assembly
LCD Assembly
Phillips Screws
Cable connection LCD
the and Function
Keypad
