Welch Allyn CP 100 Service Manual

A
77
Specifications
.
Item Specification

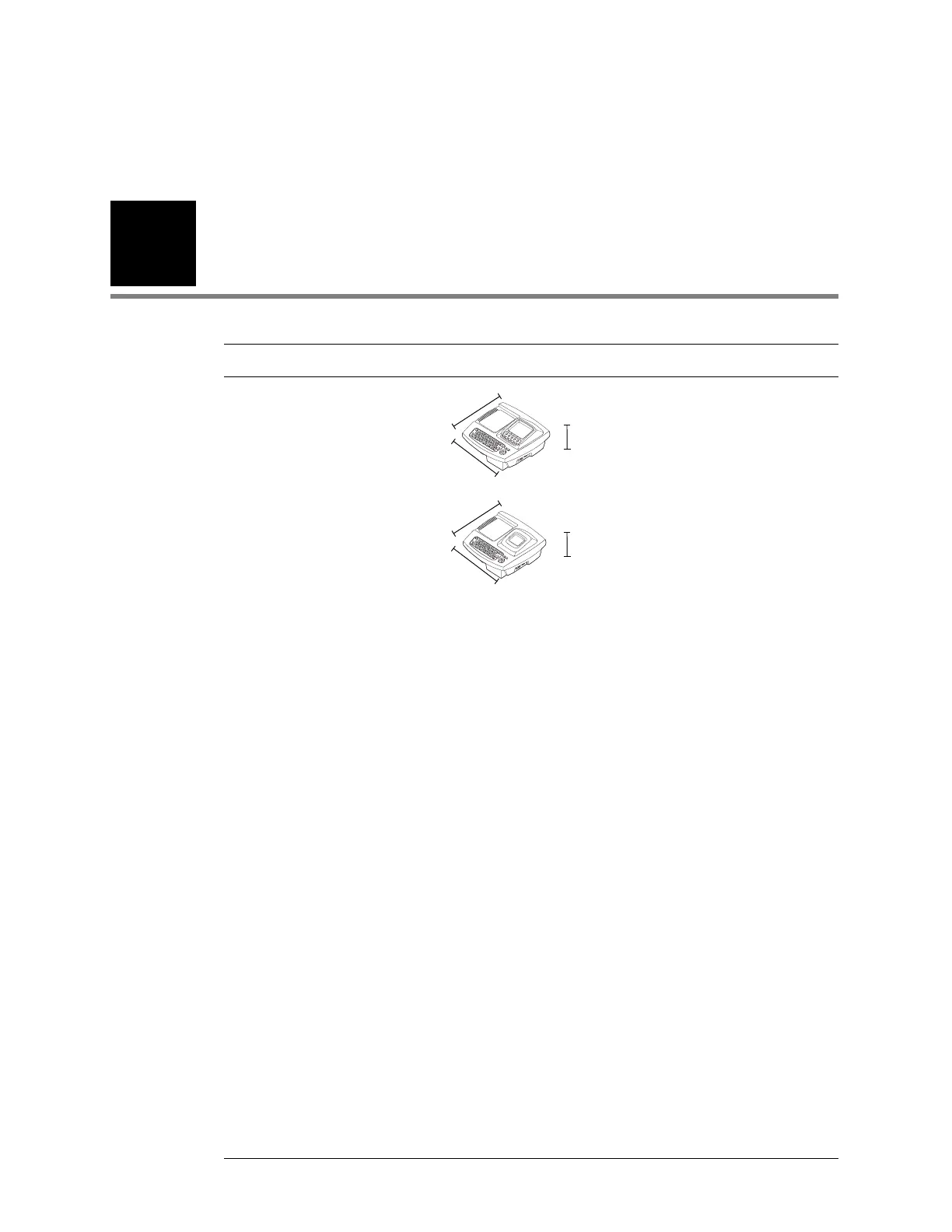

Dimensions
Weight 11.6 lb (5.3 kg)
Keyboard type Elastomer keypad with complete alphanumeric keys
Soft-key menu and dedicated function keys (CP 200 Only)
Paper type 8.25 x 11 inches (21 x 28 cm), Z-fold thermal paper, 200 sheets
Thermal printer (internal) Computer-controlled dot array, 8 dots/mm
Thermal paper speeds 10, 25, 50 mm/s
Gain settings:
Auto ECGs
Rhythm ECGs
5, 10, 20 mm/mV, AUTO
5, 10, 20 mm/mV
Report print formats:
Auto ECGs
Rhythm ECGs
Average cycles
3x4, 3x4+ 1R, 3x4 +3R, 6x2, 12x1, 6x2 50 mm/s, 6x2 Ext.
3, 6, or 12 leads at a time (CP 200) 3 leads at a time (CP 100)
3x4 50 mm/s + 3R, 6x2 50 mm/s + 6R
ECG storage Up to 50 ECGs (CP 200 Only)
Frequency range 0.3 to 150 Hz
Digital sampling rate > 1,000 samples/second/channel
Pacemaker detection ANSI/AAMI EC11
Power requirement Universal AC power supply 100/240 V ~, 50/60 Hz ~, 2.2 A maximum
Fuses
AC
DC (battery fuse)
Time-delay type, 2 amp 250 V rating, Littlefuse 0215002 or equivalent.
Fast-acting type, 10 amp 32 V rating, Bussman ATC-10 or equivalent.
15.6 in
(39.7 cm)
6.2 in
(15.7 cm)
16.2
i
n
(41.1 cm)
15.6 in
(39.7 cm)
6.2 in
(15.7 cm)
16.2
i
n
(41.1 cm)
