6. Slide the paper tray cover until it locks into
place before lifting the paper tray assembly.
7. Slowly lift the paper tray assembly and
remove the connections. See Figure 35

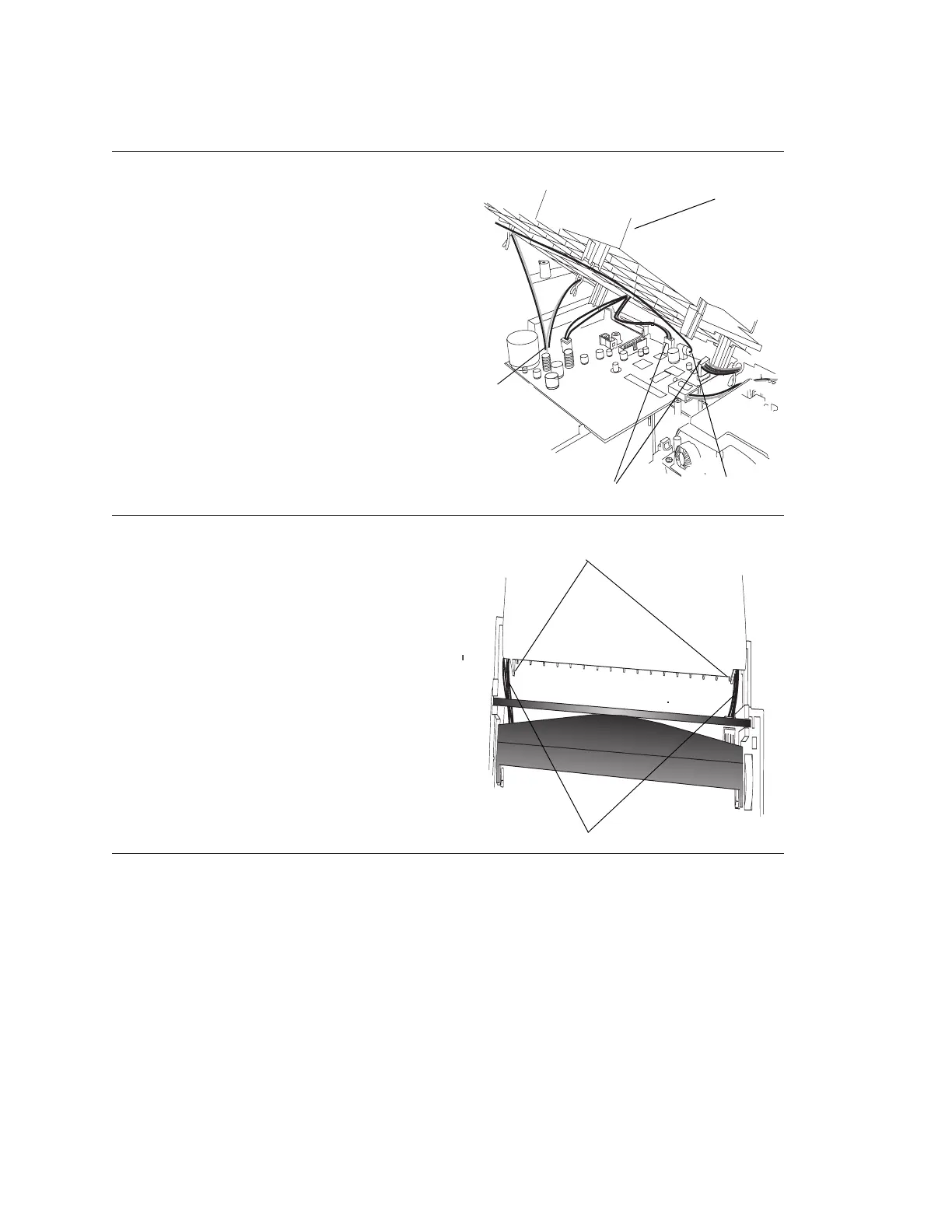

Figure 35. Lifting the Paper Tray Assembly
Reassembly Note
1. Keep the black printhead harness wires
behind the tabs on the auxiliary tray cover as
you place the cover into the assembly.
2. When pressing the auxiliary paper cover into
place, listen for two distinct clicks when the
tabs lock into place.
Figure 36.
Procedure
Paper Tray
Assembly
Connections
Printhead
Harness
Ground
Printhead Harness Wires
Tabs
