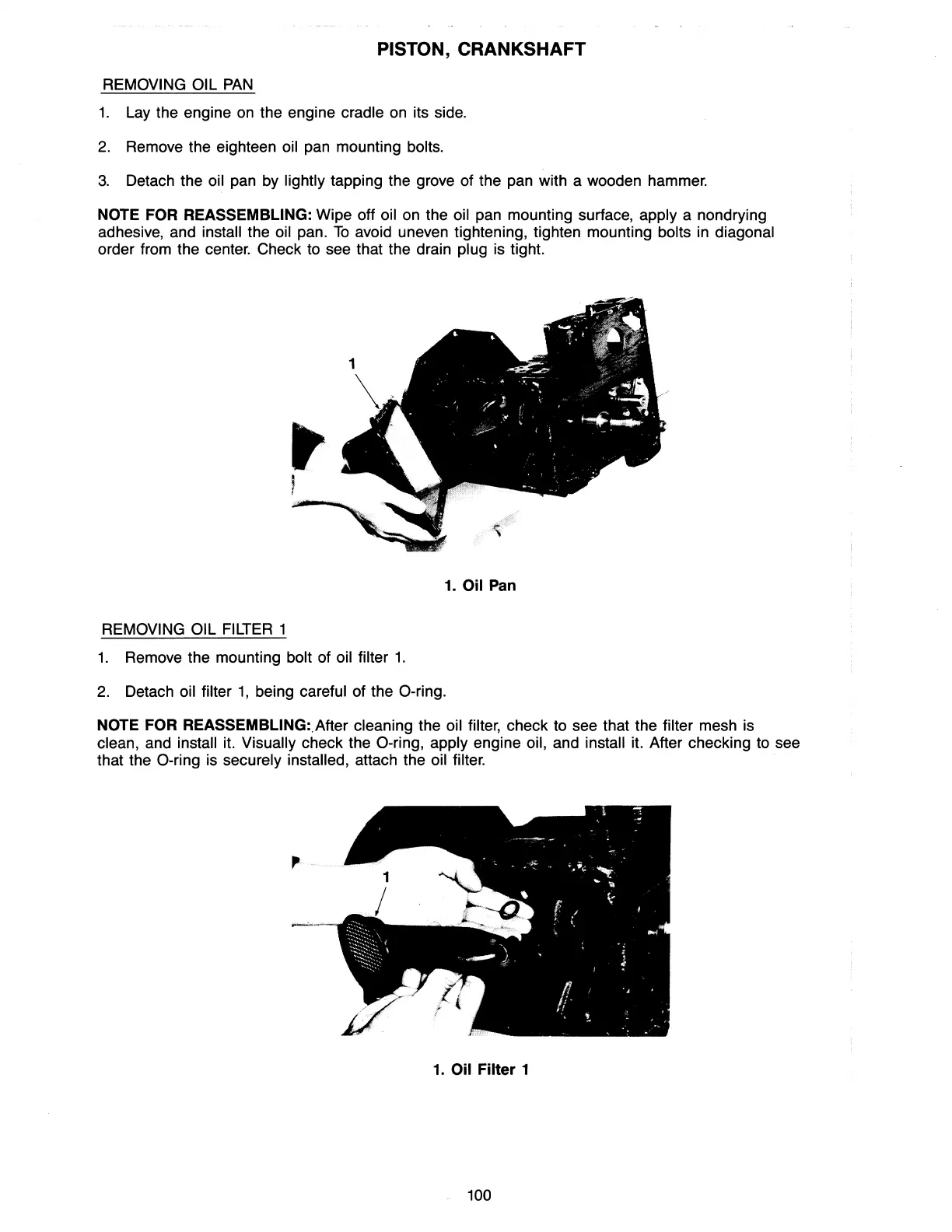

PISTON, CRANKSHAFT
REMOVING OIL
PAN
1.
Lay
the engine
on
the engine cradle
on
its side.
2.
Remove the eighteen oil
pan
mounting bolts.
3.
Detach the oil
pan
by lightly tapping the grove of the
pan
with a wooden hammer.
NOTE FOR REASSEMBLING: Wipe off oil
on
the oil pan mounting surface, apply a nondrying
adhesive, and
install the oil pan.
To
avoid uneven tightening, tighten mounting bolts
in
diagonal
order from the
center.
Check
to
see
that the drain plug is tight.
t
,
1.
Oil
Pan
REMOVING OIL
FILTER
1
1.
Remove the mounting bolt of oil filter
1.
2.
Detach oil filter
1,
being careful of the O-ring.
NOTE FOR REASSEMBLlNG:,After cleaning the oil filter, check
to
see
that the filter mesh
is
clean, and install
it.
Visually check the O-ring, apply engine oil, and install it. After checking
to
see
that the
O-ring
is
securely installed, attach the oil filter.
Jl
..
1.
Oil
Filter 1
100
