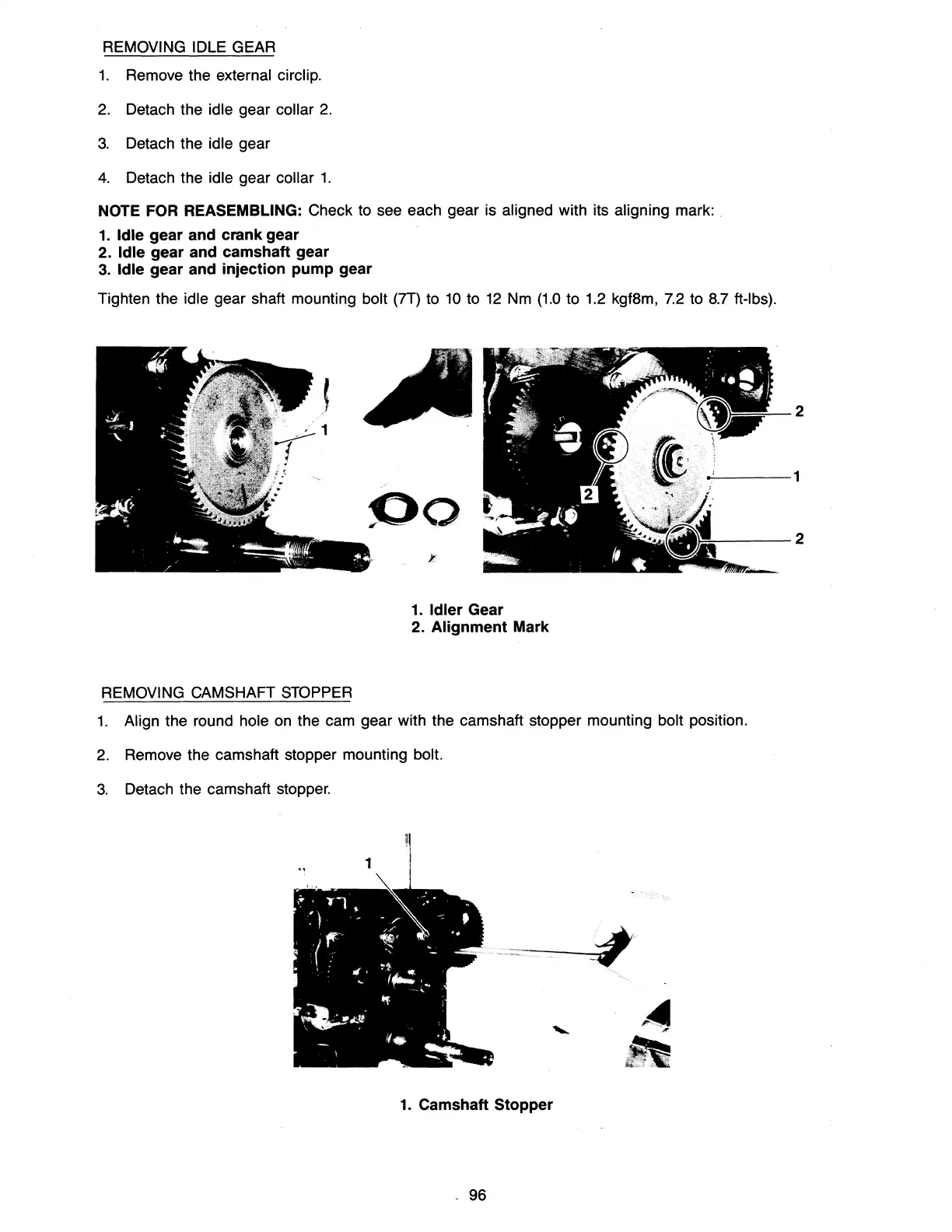

REMOVING IDLE GEAR
1.
Remove the external circlip.
2.
Detach the idle gear collar
2.
3.
Detach the idle gear
4.
Detach the idle gear collar
1.
NOTE FOR REASEMBLlNG: Check to see each gear is aligned with its aligning mark: .
1.
Idle
gear
and crank gear
2.
Idle
gear
and
camshaft
gear
3.
Idle
gear
and
injection
pump
gear
Tighten the idle gear shaft mounting bolt
(7T)
to
10
to
12
Nm
(1.0
to
1.2
kgf8m,
7.2
to
8.7
ft-Ibs).
2
----1
00
==-----2
1.
Idler
Gear
2.
Alignment
Mark
REMOVING CAMSHAFT STOPPER
1.
Align the round hole
on
the cam gear with the camshaft stopper mounting bolt position.
2.
Remove the camshaft stopper mounting bolt.
3.
Detach the camshaft stopper.
1.
Camshaft
Stopper
