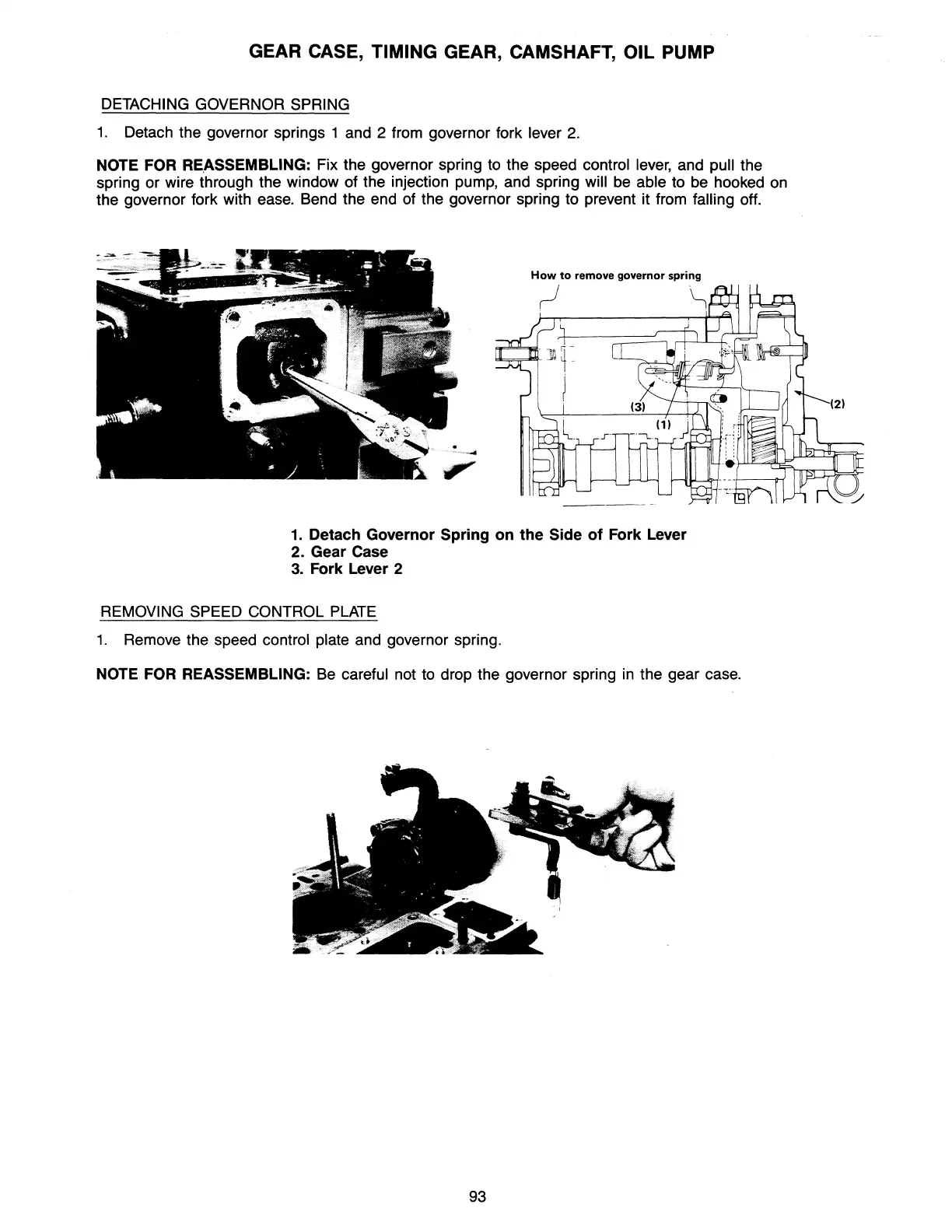

GEAR CASE, TIMING GEAR, CAMSHAFT, OIL PUMP
DETACHING GOVERNOR SPRING
1.
Detach the governor springs 1 and 2 from governor fork lever
2.
NOTE
FOR
RE,ASSEMBLING: Fix the governor spring to the speed control
lever,
and pull the
spring or wire through the window of the injection pump, and spring will
be
able to
be
hooked
on
the governor fork with ease. Bend the end of the governor spring to prevent it from falling off.
How
to
remove governor spring
~
1.
Detach Governor Spring on
the
Side
of
Fork Lever
2. Gear Case
3.
Fork Lever 2
REMOVING SPEED CONTROL PLATE
1.
Remove the speed control plate and governor spring.
NOTE
FOR
REASSEMBLING:
Be
careful not to drop the governor spring
in
the gear
case.
93
(2)
