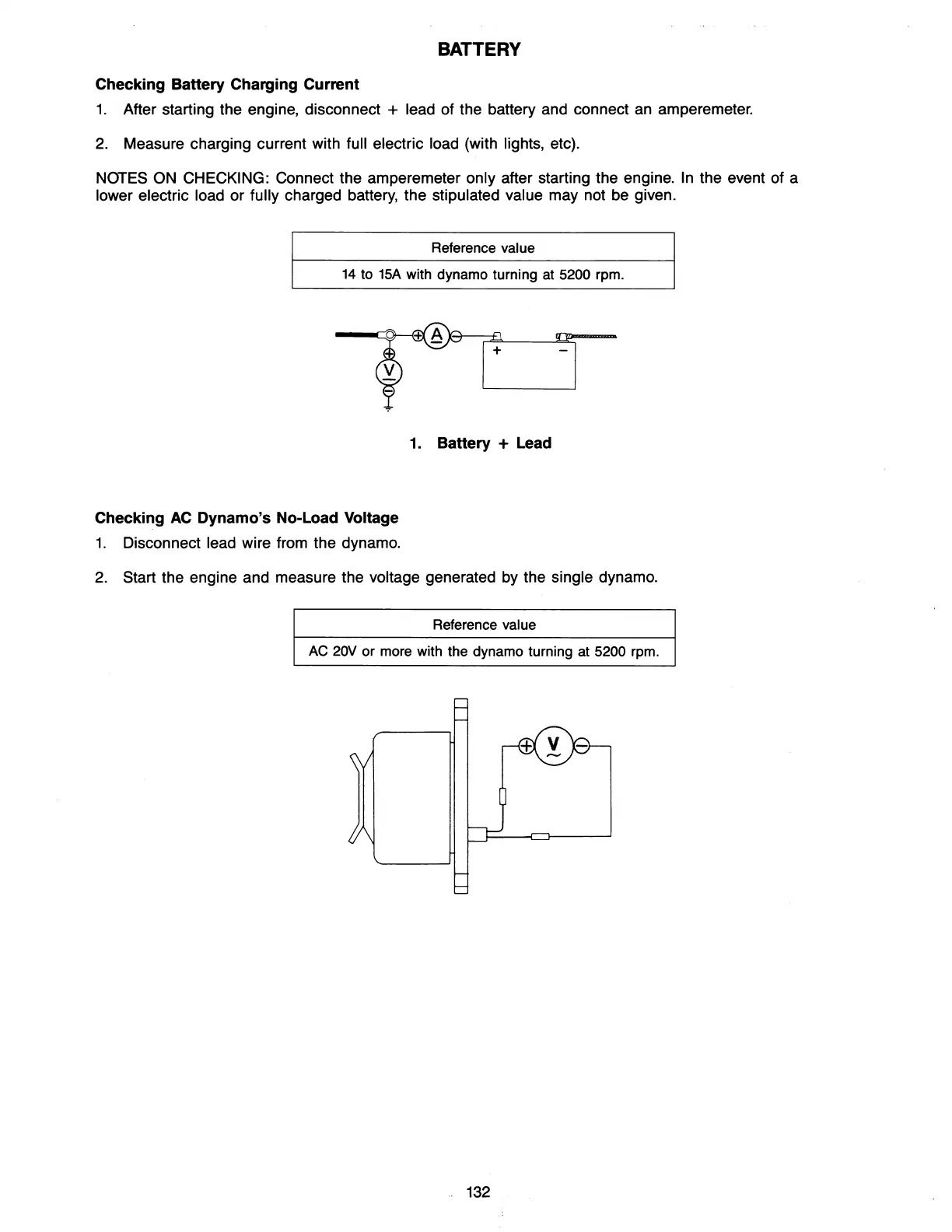

BATTERY
Checking Battery Charging Current
1.
After starting the engine, disconnect + lead of the battery and connect
an
amperemeter.
2. Measure charging current with full electric load (with lights, etc).
NOTES
ON
CHECKING: Connect the amperemeter only after starting the engine.
In
the event of a
lower electric load or fully charged battery, the stipulated value may not
be
given.
Reference value
14
to
15A
with dynamo turning at 5200 rpm.
Checking
AC
Dynamo's No-Load Voltage
1.
Disconnect lead wire from the dynamo.
1.
Battery + Lead
2.
Start the engine and measure the voltage generated by the single dynamo.
Reference value
AC
20V
or more with the dynamo turning at 5200 rpm.
132
