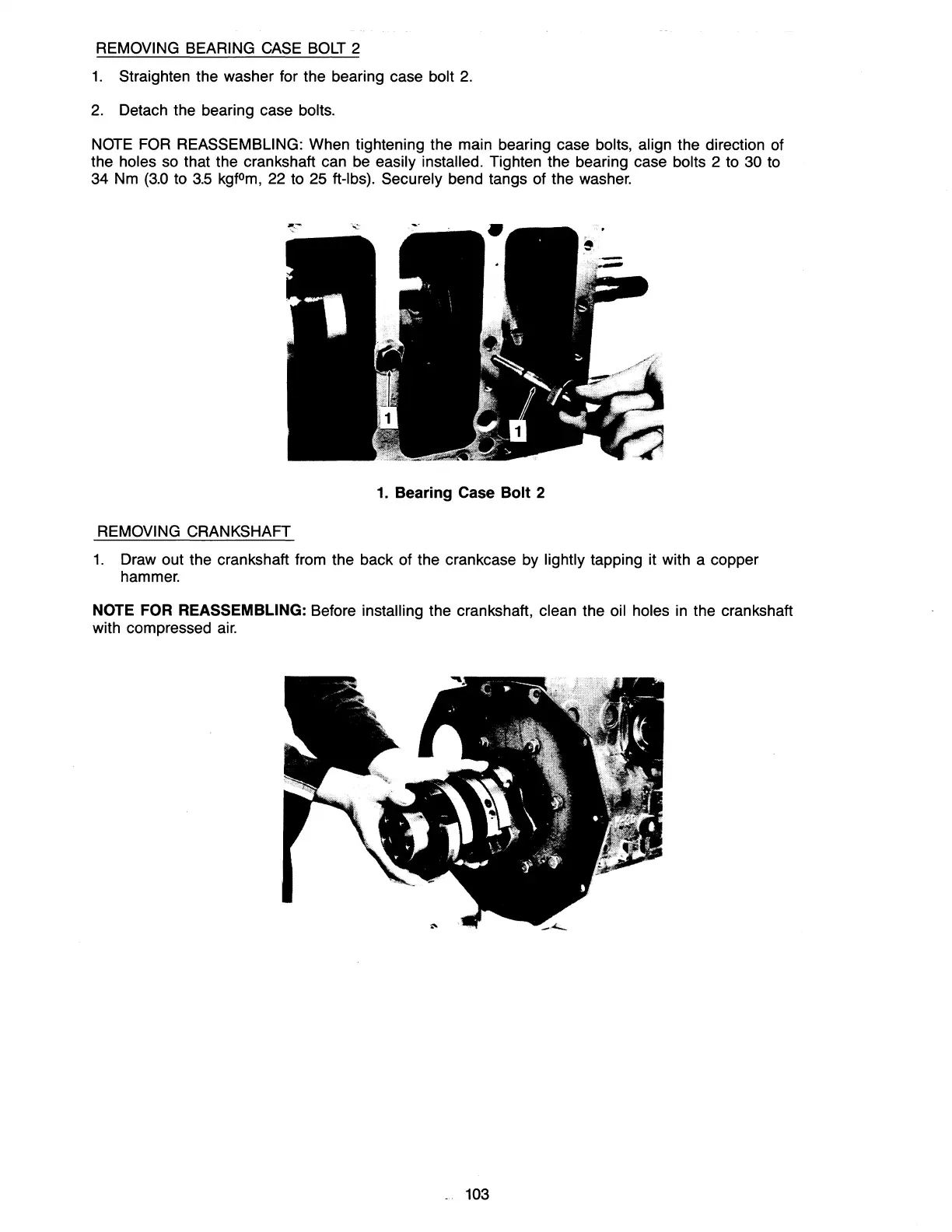

Westerbeke Universal M-50 - Removing Bearing Case Bolt 2; Removing Crankshaft

REMOVING BEARING CASE BOLT 2
1. Straighten the washer for the bearing case bolt 2.
2.
Detach the bearing case bolts.
NOTE FOR REASSEMBLING: When tightening the main bearing case bolts, align the direction of
the
holes so that the crankshaft can be easily installed. Tighten the bearing case bolts 2 to 30 to
34 Nm
(3.0 to 3.5 kgfOm, 22 to 25 ft-Ibs). Securely bend tangs of the washer.
1. Bearing Case Bolt 2
REMOVING CRANKSHAFT
1. Draw out the crankshaft from the back of the crankcase by lightly tapping it with a copper
hammer.
NOTE FOR REASSEMBLING: Before installing the crankshaft, clean the oil holes in the crankshaft
with compressed
air.
.. 103
