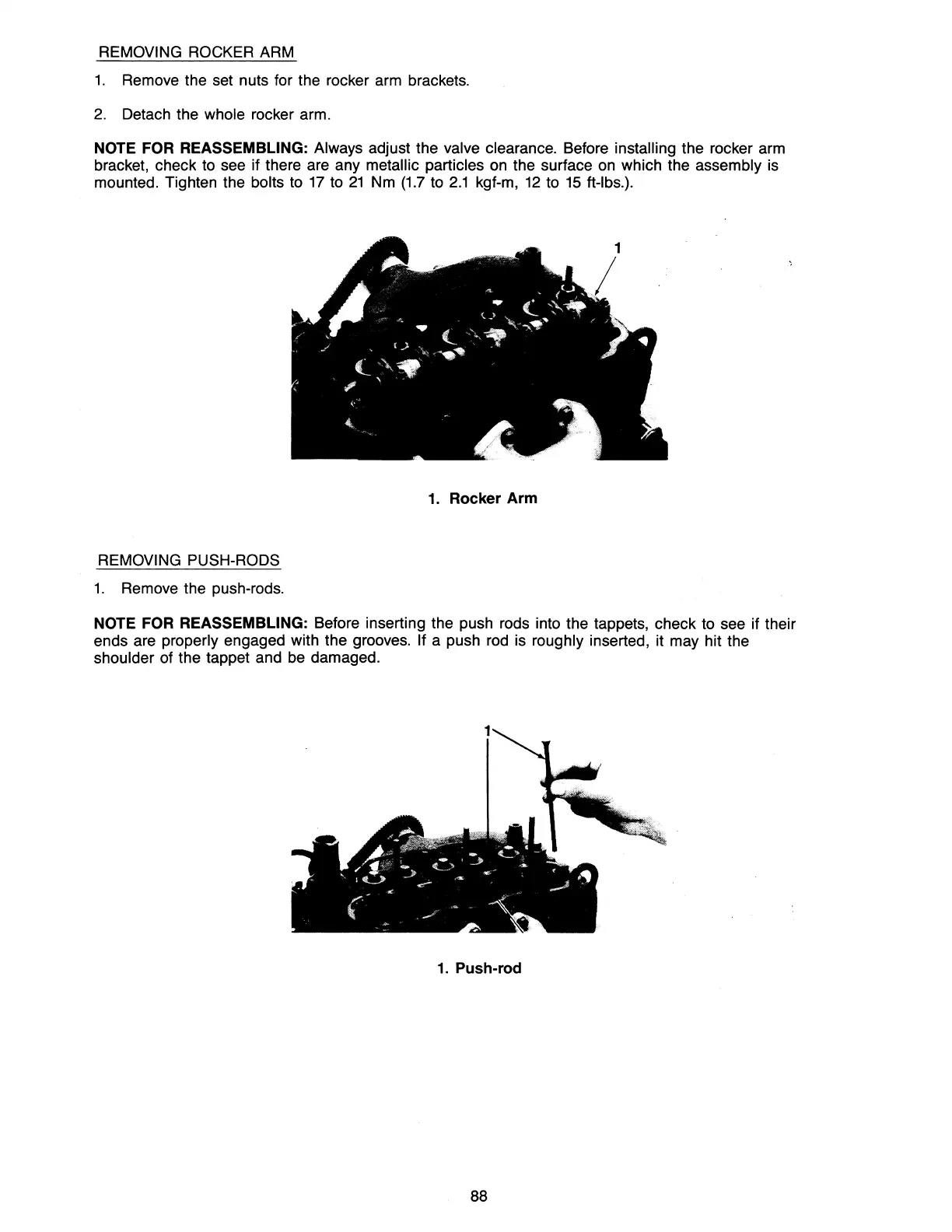

REMOVING ROCKER
ARM
1.
Remove the set nuts for the rocker
arm
brackets.
2.
Detach the whole rocker arm.
NOTE FOR REASSEMBLING: Always adjust the valve clearance. Before installing the rocker arm
bracket, check
to
see if there are any metallic particles
on
the surface
on
which the assembly
is
mounted. Tighten the bolts to
17
to
21
Nm
(1.7
to
2.1
kgf-m,
12
to
15
ft-Ibs.).
1. Rocker Arm
REMOVING PUSH-RODS
1.
Remove the push-rods.
NOTE FOR REASSEMBLING: Before inserting the push rods into the tappets, check
to
see
if their
ends are
properly engaged with the grooves. If a push
rod
is
roughly inserted, it may hit the
shoulder of the tappet and
be
damaged.
1.
Push-rod
88
