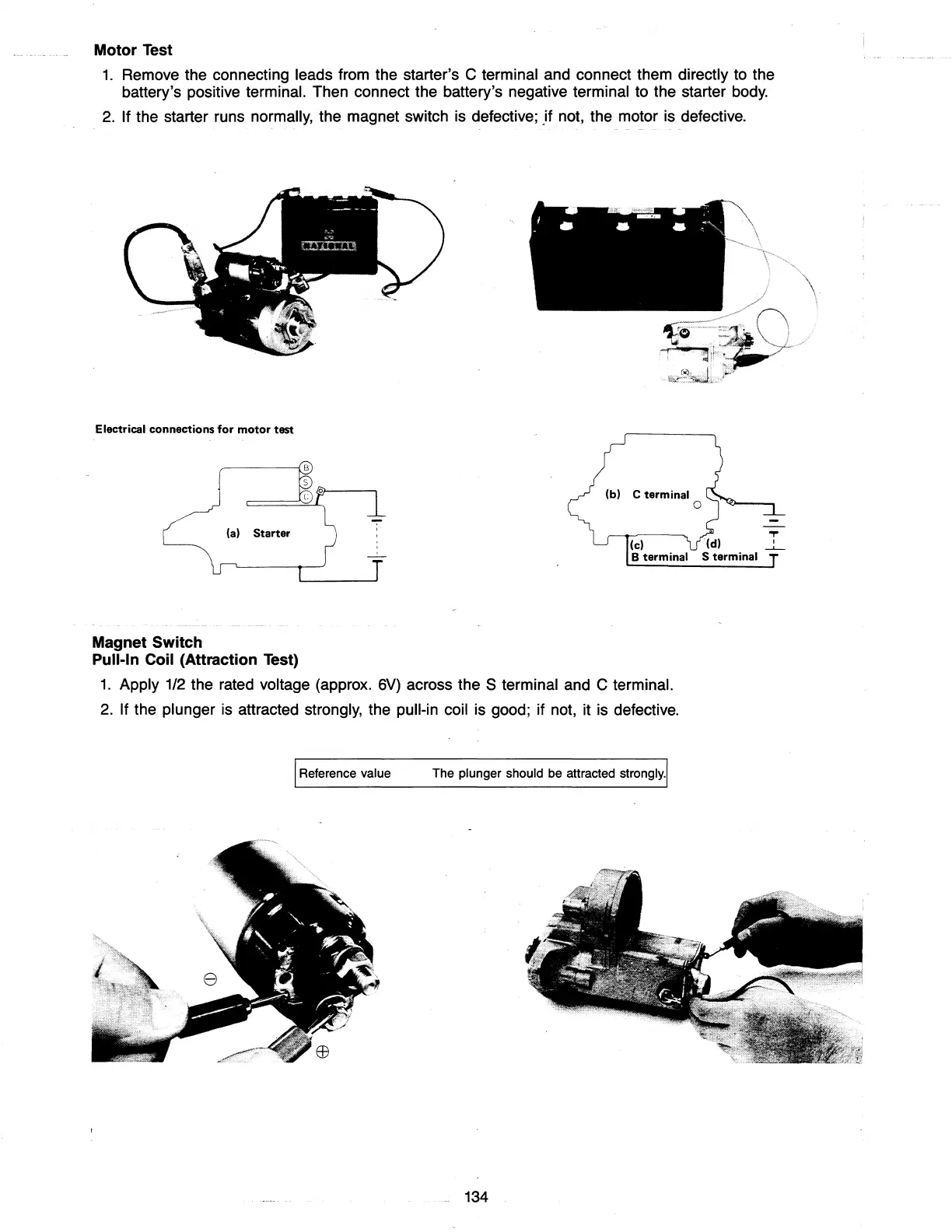

Motor Test
1.
Remove the connecting leads from the starter's C terminal and connect them directly to the
battery's positive
terminal. Then connect the battery's negative terminal to the starter
body.
2.
If the starter runs normally, the magnet switch is defective;
.if
not, the motor is defective.
Electrical
connections
for
motor
test
Magnet Switch
Pull-In Coil (Attraction Test)
(b) C terminal
o
1.
Apply
1/2
the rated voltage (approx.
6V)
across the S terminal and C terminal.
2.
If the plunger
is
attracted strongly, the pull-in coil is good; if not, it
is
defective.
Reference value
The plunger should be attracted strongly.
