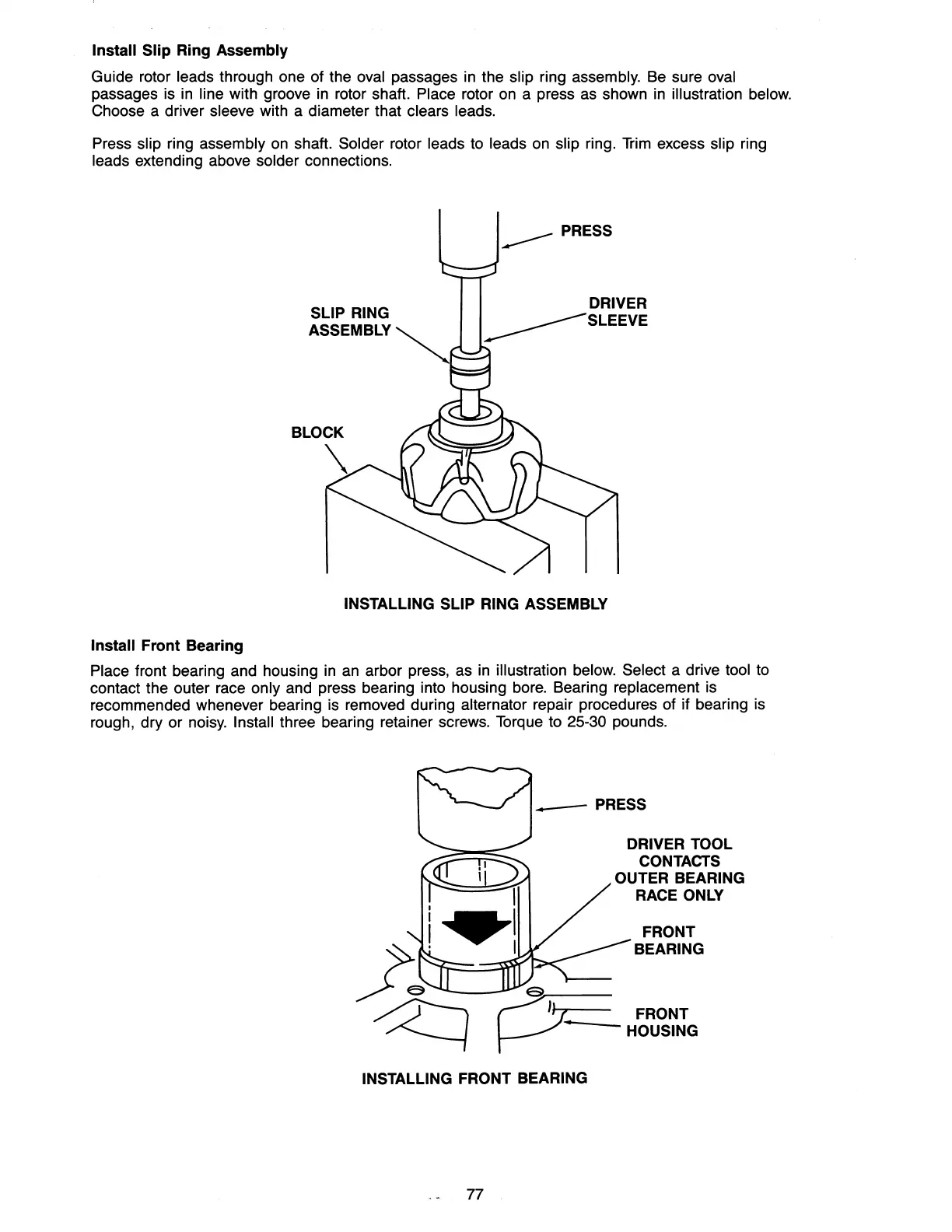

Install Slip Ring Assembly
Guide rotor leads through one of the oval passages
in
the slip ring assembly.
Be
sure oval
passages is
in
line with groove
in
rotor shaft. Place rotor
on
a press as shown
in
illustration
below.
Choose a driver sleeve with a diameter that clears leads.
Press slip ring assembly
on
shaft. Solder rotor leads to leads on slip ring.
Trim
excess slip ring
leads extending above solder connections.
Install Front Bearing
SLIP
RING
ASSEMBLY~
____
PRESS
DRIVER
__________
SLEEVE
INSTALLING SLIP RING ASSEMBLY
Place front bearing and housing
in
an
arbor press, as
in
illustration below. Select a drive tool to
contact the outer race only and press bearing into housing bore. Bearing replacement is
recommended whenever bearing is removed during alternator repair procedures of if bearing is
rough, dry or
noisy.
Install three bearing retainer screws.
Torque
to 25-30 pounds.
_----
PRESS
INSTALLING FRONT BEARING
77
DRIVER TOOL
CONTACTS
OUTER BEARING
RACE ONLY
FRONT
BEARING
FRONT
HOUSING
