Operation
93081/A1
Winterthur Gas & Diesel Ltd.
5/ 10
The cylinder pressure raw data of each unit is taken as an analogue input signal from
the pressure transducer into the WECS9520 as shown in the ICC installation
overview below (see Fig. 3).
TC compressor inlet temperatures
Scavenge air temperatures
Barometric
pressure
Dynamic cylinder pressure signals

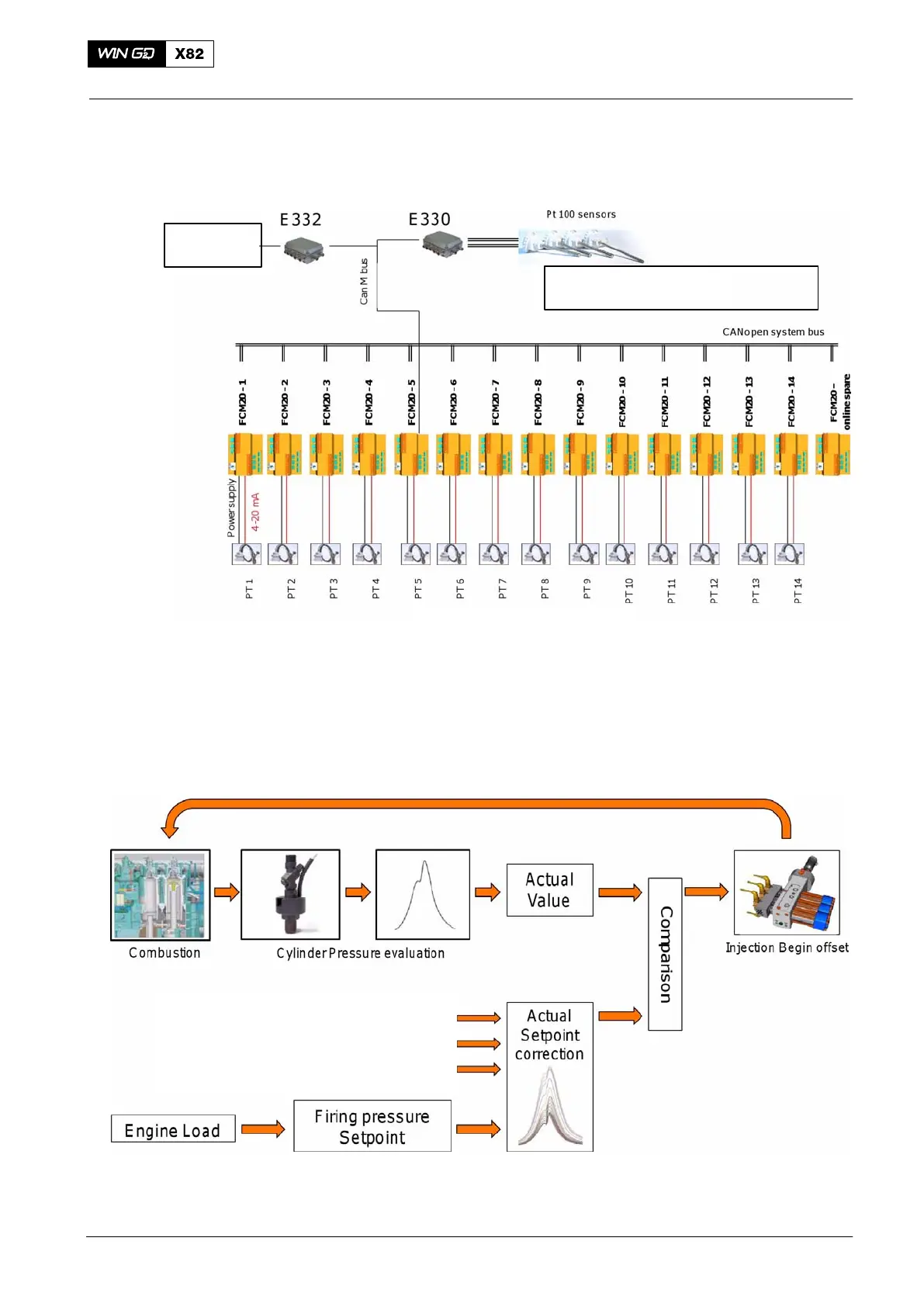

Fig. 3: Installation Schematic of the ICC System
Initially, the signal is filtered in the WECS9520 then routed to a controller.
Adjustments of this actual measured pressure value to its corrected set-point value at
a certain engine load are done accordingly. This real-time site correction and
comparison, shown in the pressure control strategy (see Fig. 4), is done for each
individual engine cycle.
TC compressor inlet air temperature
Scavenge air temperature
TC compressor inlet pressure
Fig. 4: Control schematic of the ICC System
