Operation
9314−2/A1
Winterthur Gas & Diesel Ltd.
3/ 3
WCH02857
ENGINE ROOM CONTROL ROOM
3
8
PS
11
10
2
4
6
9
PS
AM
SS
7
9
7
9
7

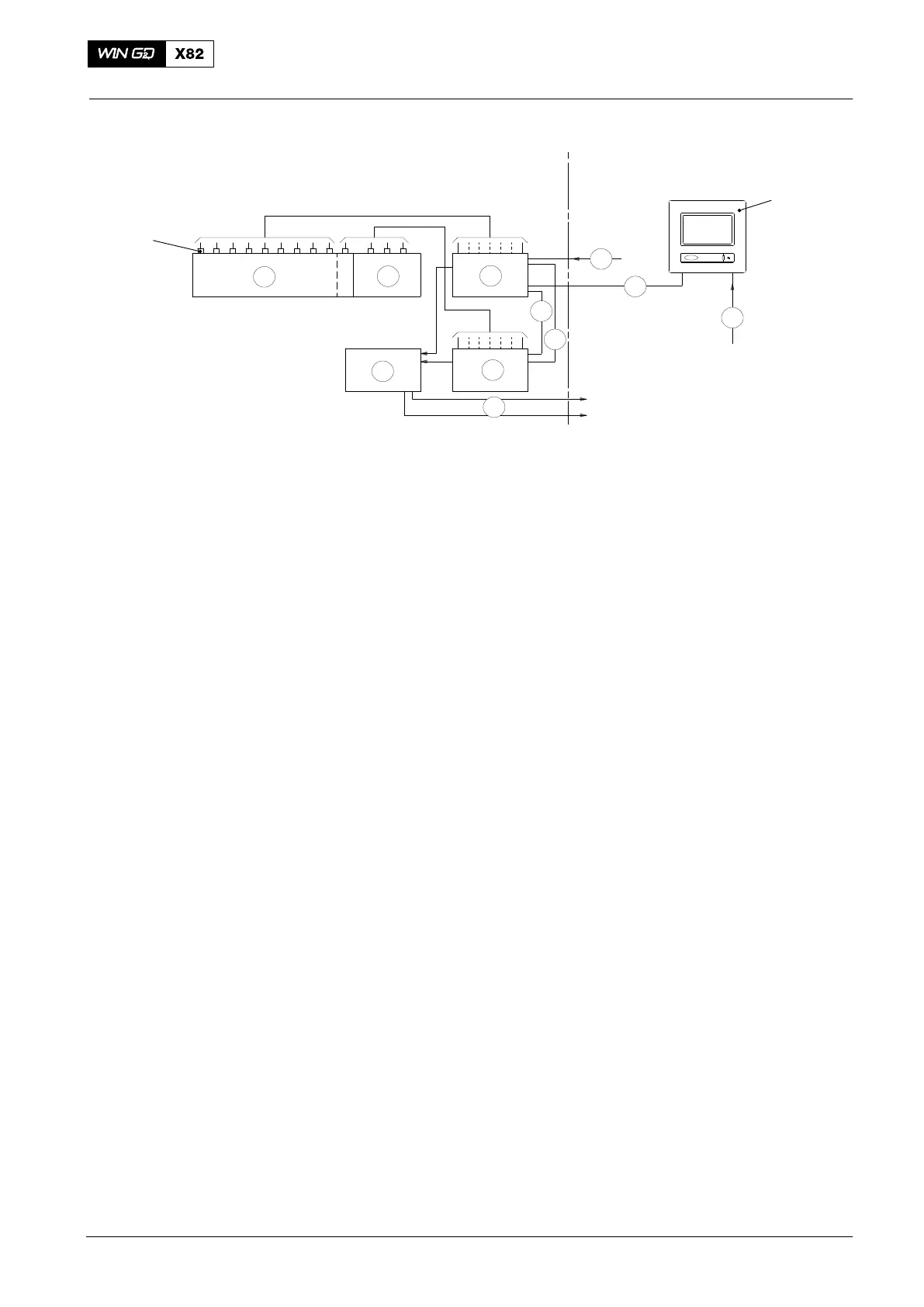

Fig. 2: Schematic Diagram
2 Control unit E15.1 9 Communications cable (Modbus)
3 Sensor 10 Control unit E15.2
4 Fuel pump unit 11 Terminal box E15.0
6 Crankcase and gearbox PS Power supply
7 Power cable AM to alarm and monitoring system
8 Control panel SS to safety system
2014-09
Oil Mist Detector 9-cylinders
