Maintenance7218−1/A2
RT-flex58T-D
Winterthur Gas & Diesel Ltd.
4/ 4

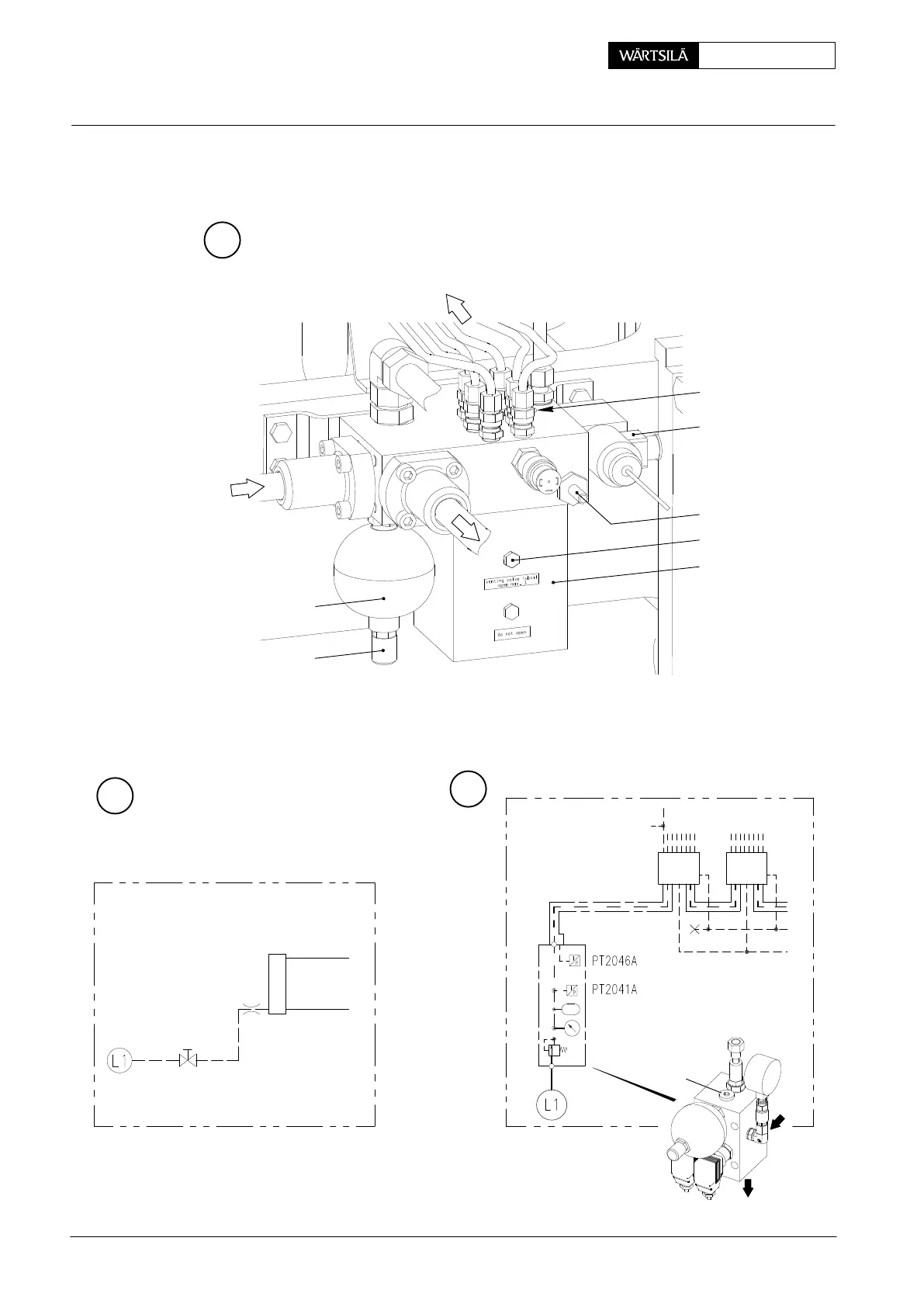

Lubricating pump (CLU4−C):
C
018.211/09
9
SERVO
OIL
TO LUBRICATING
QUILLS
10
12
11
8
1
2
Details of servo oil rail 4.11 −> lubricating pump 8.06:
D
E
DRAWN FROM CONTROL
DIAGRAM 4003−2
4.30−5
4.11
WCH00205
8.11−1
PI2041L
13
WCH00852
8.06
PRESSURE REDUCING
UNIT
2013 / CLU4−C
Lubricating Pump CLU4−C: Checking the Gas Pre-charge Pressure
