WinGD WARTSILA RT-flex58T-D User Manual

Maintenance1132−2/A1
RT-flex58T-D
Winterthur Gas & Diesel Ltd.
2/ 14
A
FUEL SIDE
4
10
2
1
7
I - I
II - II
2
2
11
6
12 6
11
9126
3
I
I
II
II
004.212/99
004.212/99
004.212/99

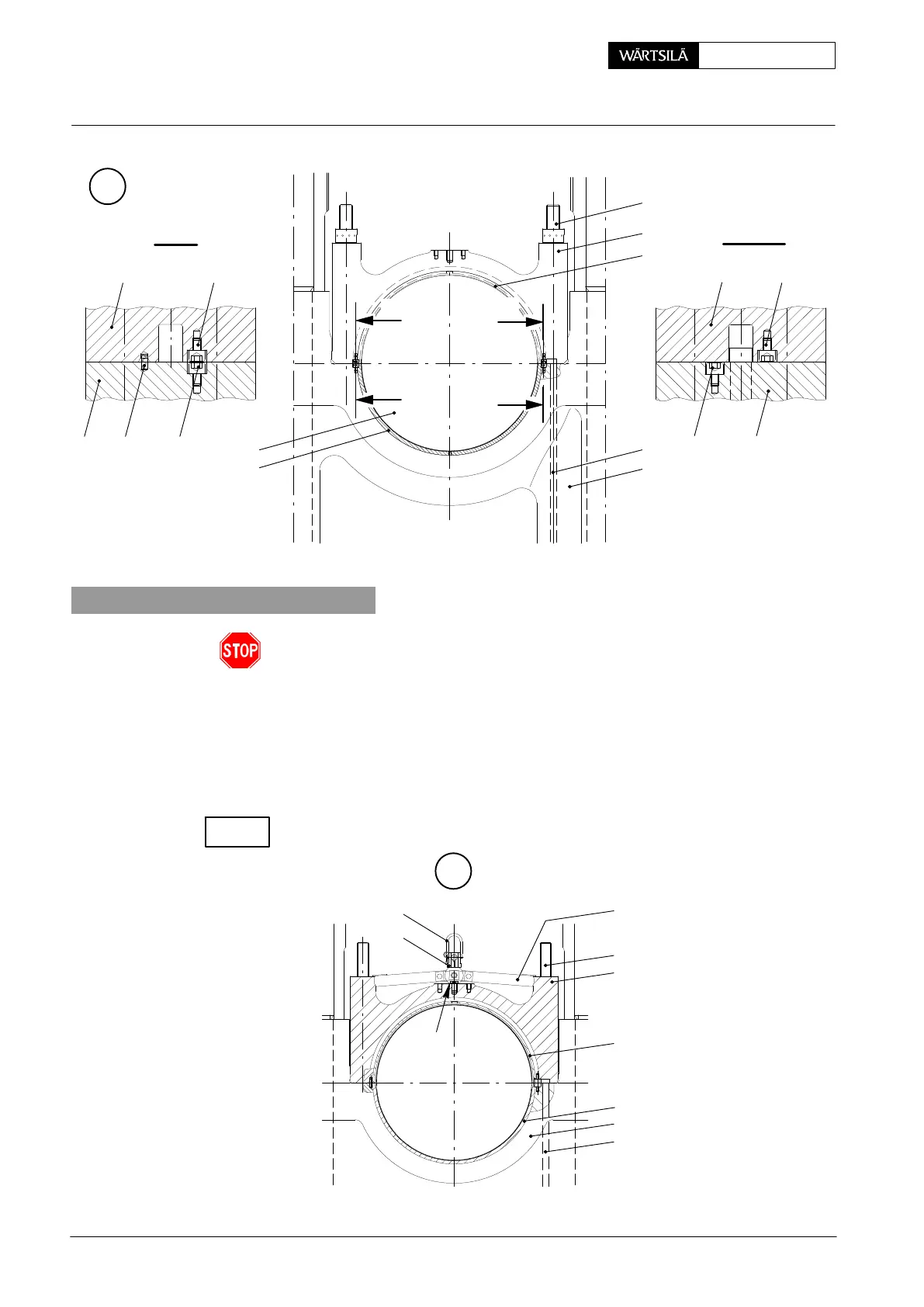

2. Placing of device 94111
Attention! Device 94111 must only be fastened onto the bearing cover with elastic
studs 4 loosened and their nuts removed!
Device 94111 must always be used for removal and fitting of the bearing covers;
and handled carefully and not be changed as its arm lengths correspond to a spe-
cified dimension.
Eyelet 94120 must be used for the removal and fitting of the bearing cover No. 1.
⇒ Fit device 94111 onto bearing cover 2 as shown below.
⇒ Screw down lifting screw 5 fully onto the bearing cover.
There must be no clearance ’S’ between bearing cover and lifting screw.
B
7
6
006.006/00
3
10
2
4
5
94120
94111
S
Removal and Fitting of a Main Bearing
2013
CHECK
