Operation Manual simco
®
drive
en-12 4022-D033499 Revision: 11a

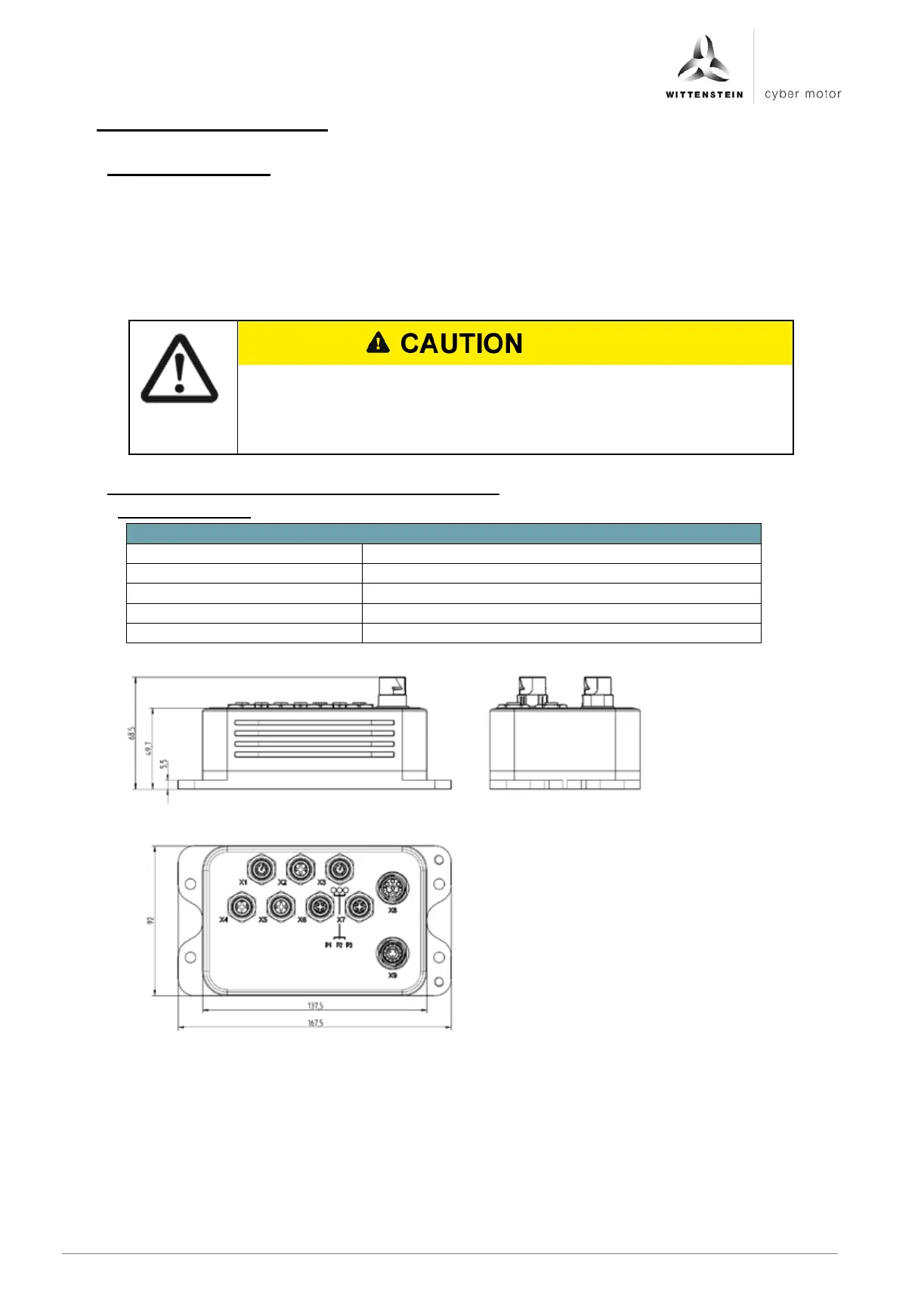

5 Mechanical installation
5.1 Safety instructions
• For the mechanical installation, the ESD instructions must be observed.
• The drive amplifier (control cabinet version) must be protected from fog, water and
penetration of metallic dust in the electrical cabinet.
• The drive amplifier must be checked for mechanical damage before installation. Only
install undamaged drive amplifiers.
• During installation in a control cabinet, sufficient ventilation must be provided.
• The operation of drive amplifiers exposed to condensation is not permitted.
• Installation may only be performed in a de-energized state!
•
Systems that are electrically connected must be properly secured
so they cannot be switched back on and warning signs must be
put up. Assembly may only be performed by trained personnel.
5.2 Device version IP65 decentral SIM20xxD-FC...
5.2.1 Dimensions IP65
Mechanical specifications
Weight (kg)
0,85
Height [mm]
92
Width [mm]
167,5
Depth without plug [mm]
49,7 / 68,5
Depth with plug [mm]
Approx. 150
