Operation Manual simco
®
drive
en-24 4022-D033499 Revision: 11a
6.4 Connection assignments device version IP20 central SIM20xxD-CC...
6.4.1 Overview of plug connections IP20

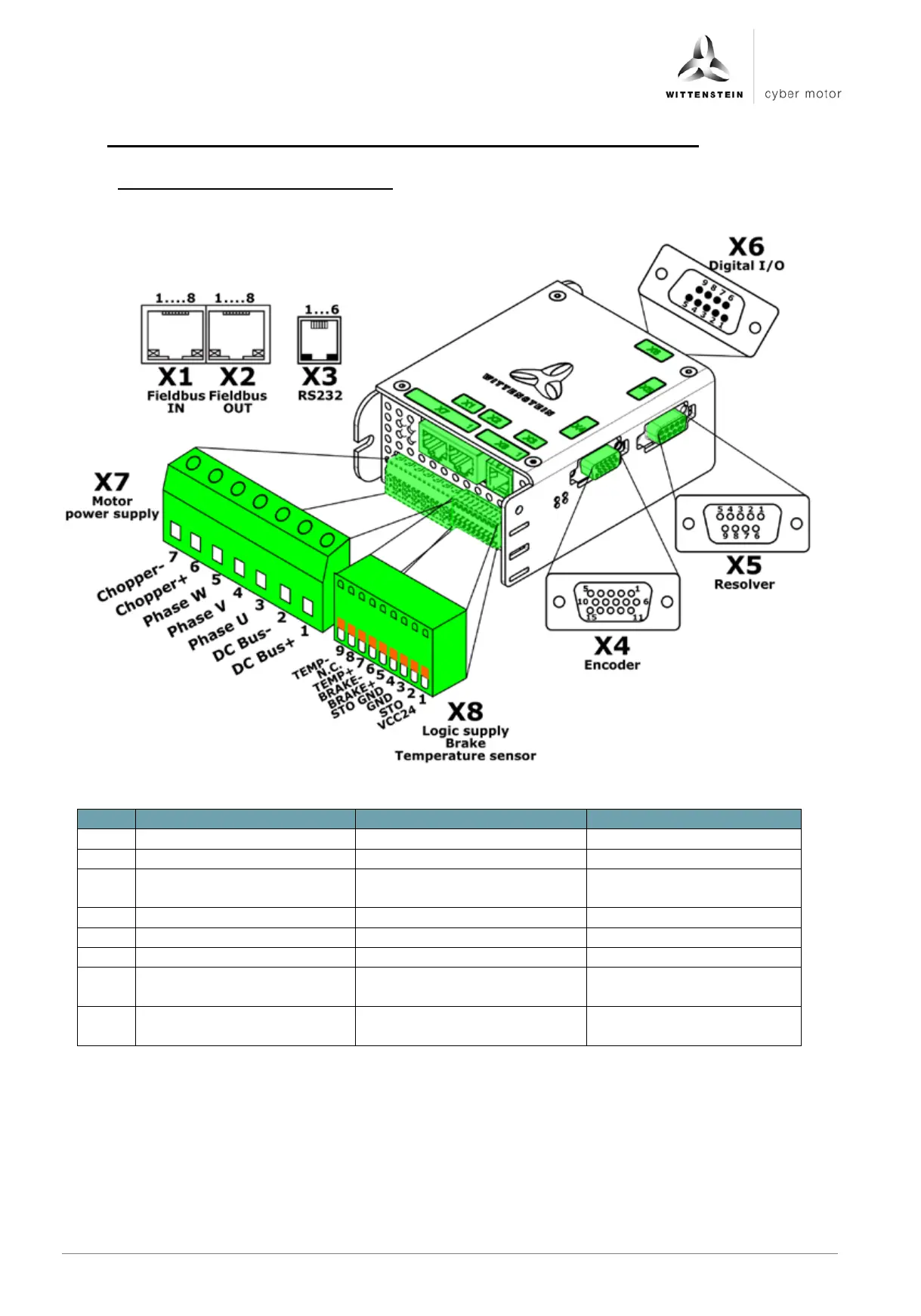

The following illustration shows the arrangement of the plug connections with associated label
on the drive amplifier:
No.
Function
Connector type at device
Connector type at cable
X1
Fieldbus interface input
RJ45 socket
RJ45 plug
X2
Fieldbus interface output
RJ45 socket
RJ45 plug
X3
Diagnostic interface
RS232
RJ12 socket
RJ12 plug
X4
Encoder interface
D-Sub 15-pole female
D-Sub 15-pole male
X5
Resolver interface
D-Sub 9-pole female
D-Sub 9-pole male
X6
Digital inputs/outputs
D-Sub 9-pole male
D-Sub 9-pole female
X7
Motor connection
Phoenix Contact
MSTBA 2,5 HC/7-G
Phoenix Contact
MSTBT 2,5 HC/ 7-ST
X8
Power supply
Phoenix Contact
MC 0,5/9-G-2,5
Phoenix Contact
FK-MC 0,5/ 9-ST-2,5
