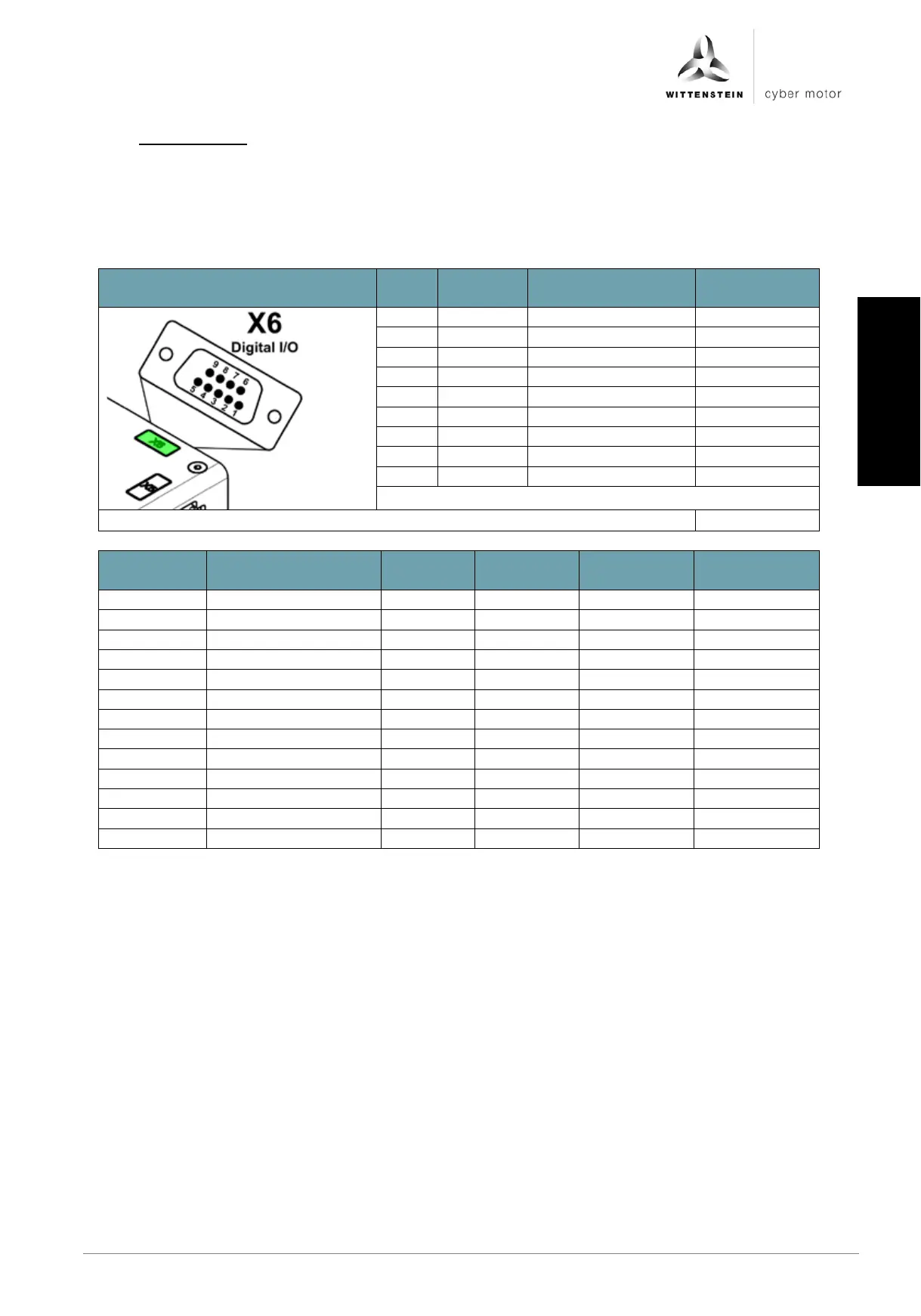

6.4.10 X6: Digital I/O
• An external power supply most be connected to supply the digital outputs.
− The digital outputs are galvanically isolated from the logic and power of the drive
amplifier.
− The digital outputs are short-circuit proof.
Figure
Pin
no.
Signal
Function
Input/output
1
DIN1
Digital input 1
Input
2
DIN2
Digital input 2
Input
3
DIN3
Digital input 3
Input
4
DIN4
Digital input 4
Input
5
GND
Reference ground
6
DOUT1
Digital output 1
Output
7
DOUT2
Digital output 2
Output
8
VCC24
Digital output supply
Input
9
GND
Reference ground
Plug type on drive amplifier: D-sub 9-pin male
Connection
Properties
Unit
Minimum
value
Nominal
value
Maximum
value
DINx
Input voltage
V DC
20
24
28
Input current
mA DC
3
4
5
Input resistance
kOhm
5,6
Sample time
msec
1
GND
Reference ground
DOUTx
Output voltage
V DC
18
24
26
Output current
mA DC
40
Output resistance
kOhm
1
1,5
2
Refresh rate
Hz
1
VCC24
Voltage
V DC
20
24
28
Current
mA DC
80
GND
