Operation Manual simco
®
drive
en-36 4022-D033499 Revision: 11a

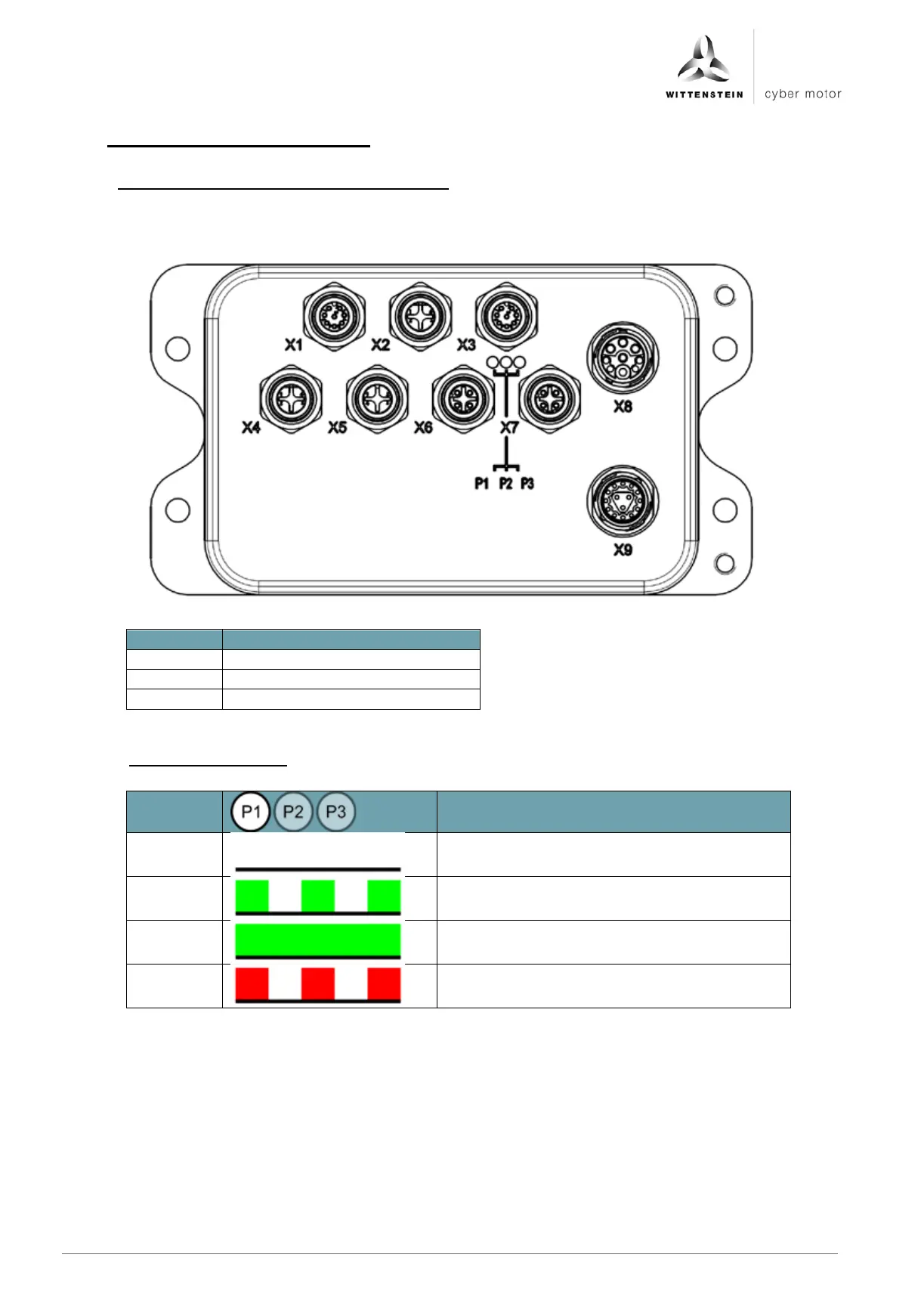

7.3 Displays on the drive amplifier
7.3.1 Displays on device version decentral IP65
Three multicolor LEDs (P1-P3) in the colors green and red are available on the drive
amplifier for status and fault messages.
LED
Function
P1
Status of the drive
P2
Status of the fieldbus
P3
Fault status of the fieldbus
7.3.1.1 LED P1 Status drive
Status
LED
Meaning
Off
Drive amplifier has no power supply or is
defective
Flashes
green
Drive amplifier is in functional state and
output stage disabled
Green
Drive amplifier is in functional state and
output stage enabled
Flashes
red
Drive amplifier is in defective state and
output stage disabled
