Operation Manual simco
®
drive
en-16 4022-D033499 Revision: 11a

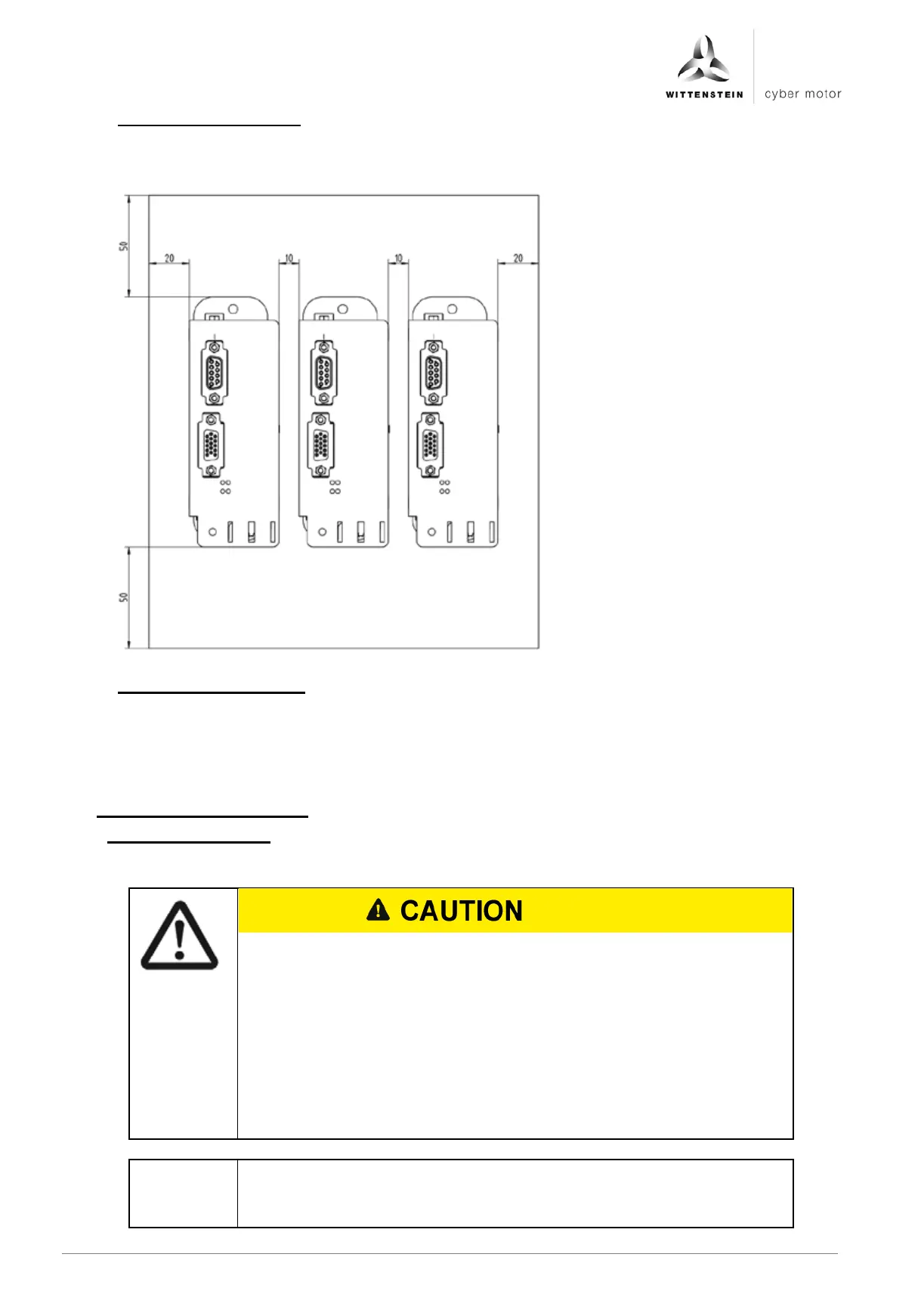

5.3.6 Mounting position IP20
The mounting position and minimum clearance must be established as in the following
figure:
5.3.7 Ventilation/cooling IP20
Ensure that there is sufficient air circulation in the closed control cabinet.
The airflow at the bottom air intake of the device has to be at least 0.8 m/s so that the device is
sufficiently cooled under standard operational conditions.
6 Electrical installation
6.1 Safety instructions
• For the electrical installation, the ESD instructions must be observed.
• Systems that are electrically connected must be properly secured so
they cannot be switched back on and warning signs must be put up.
Installation may only be performed by trained personnel.
Before startup, it must be checked that the wiring is correct and is
free of mechanical damage. Only drive amplifiers with wiring in
perfect condition may be put into operation.
Incorrect voltage, reverse polarity and defective wiring can damage
or destroy the drive amplifier.
Excessive or inadequate protection of the power supply can damage
the cables or the drive amplifier.
• Observe the separate instructions for the STO safety function (see
Chapter 10 "Instructions for STO safety function")
