Wittenstein cyber motor simco SIM2002D - LED P3 Fault Status Fieldbus

Operation Manual simco
®
drive
en-38 4022-D033499 Revision: 11a

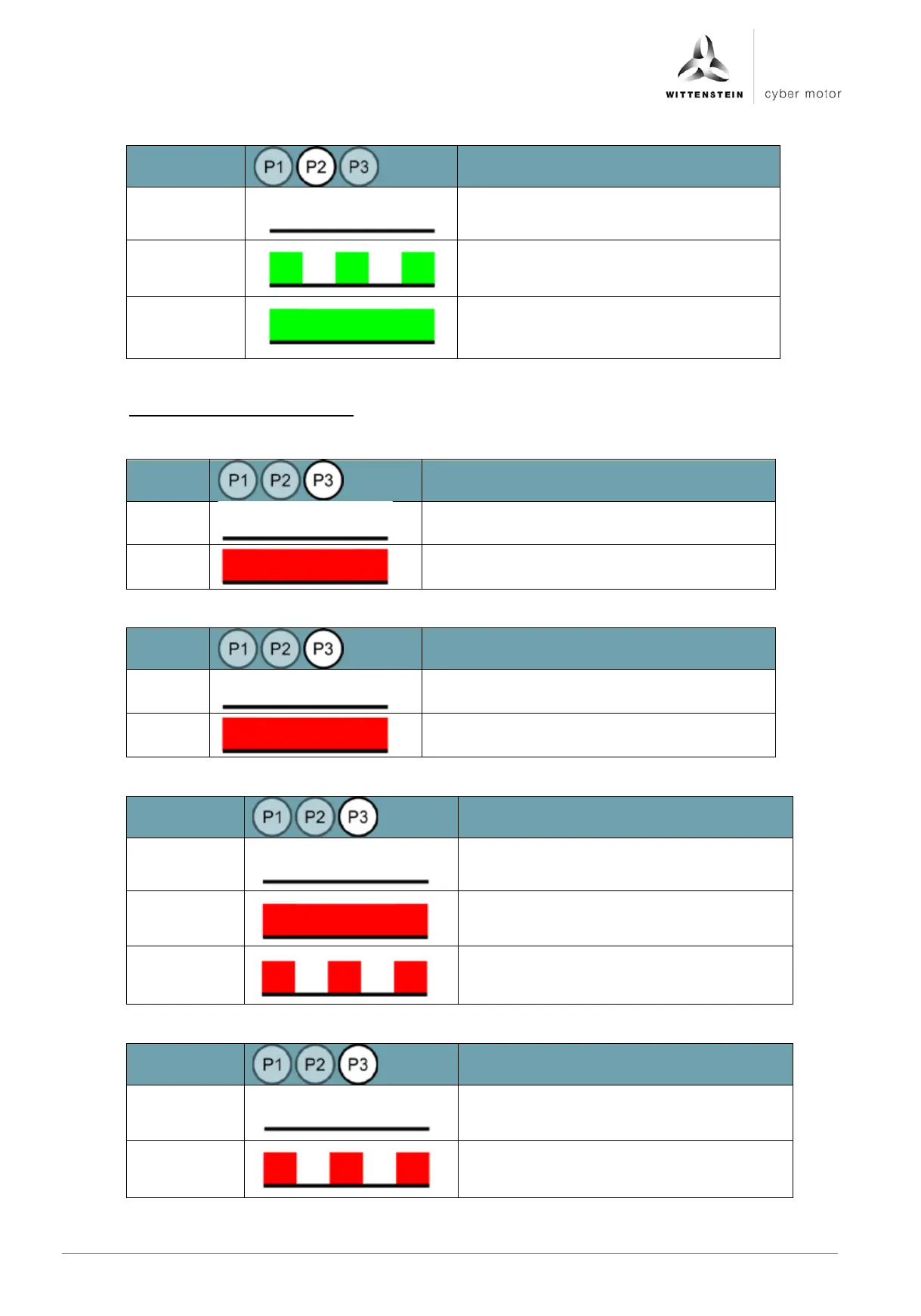

SERCOS III:
State LED
Meaning
off
Sercos communication not available
flashes
green
SERCOS communication will be
established
glows
green
Sercos phase 4 attained
7.3.1.3 LED P3 Fault status fieldbus
CANopen:
Status
LED
Meaning
Off
The CAN node is ready for operation
Red
The CAN node is defective
EtherCAT:
Status
LED
Meaning
Off
The bus is ready for operation
Red
The bus is defective
PROFINET:
State LED
Meaning
off
Existing communication with a Profinet
Controller
glows red
No connection available
flashes
red
Connection available, but no active
communication with an I/O controller
EtherNet/IP:
State LED
Meaning
off
Existing communication with
EtherNet/IP-Controller
flashes
red
Connection-timeout.
A former active connection is has been
interrupted.
