Wittenstein cyber motor simco SIM2002D - X3: Rs232

Operation Manual simco
®
drive
en-28 4022-D033499 Revision: 11a

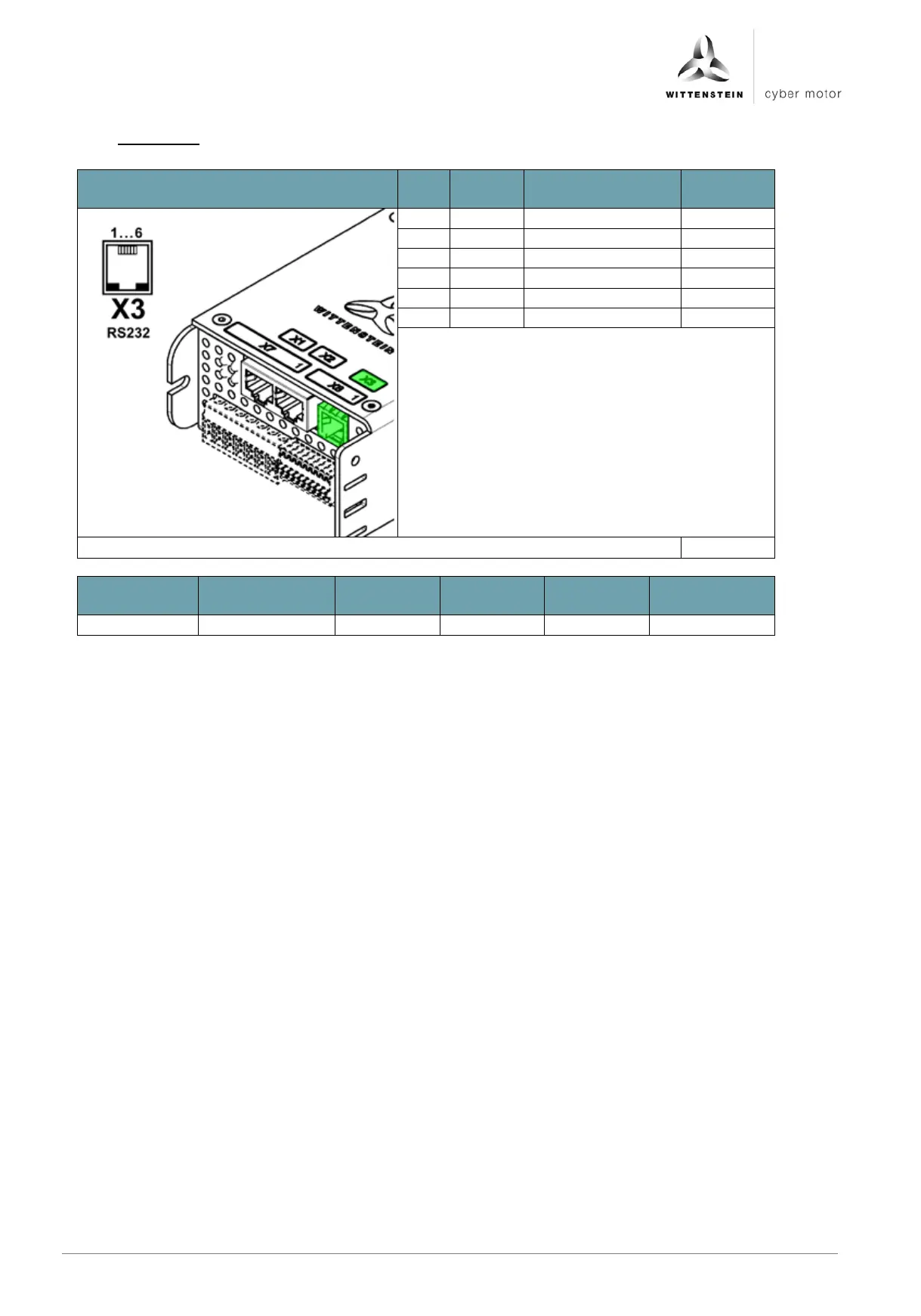

6.4.7 X3: RS232
Figure
Pin
no.
Signal
Function
Input/
output
1
TxD
Transmit Data
Output
2
RxD
Receive Data
Input
3
GND
Reference ground
4
N.C.
5
N.C
6
N.C
Plug type on drive amplifier: MOD JACK – MJLS 6P6C
Connection
Properties
Unit
Minimum
value
Nominal
value
Maximum
value
TxD / RxD
Baud rate
baud
115200
