Wittenstein cyber motor simco SIM2002D - LED P1 Status Drive; LED P2 Fault Status Drive; LED P3 Status Fieldbus

Operation Manual simco
®
drive
en-40 4022-D033499 Revision: 11a

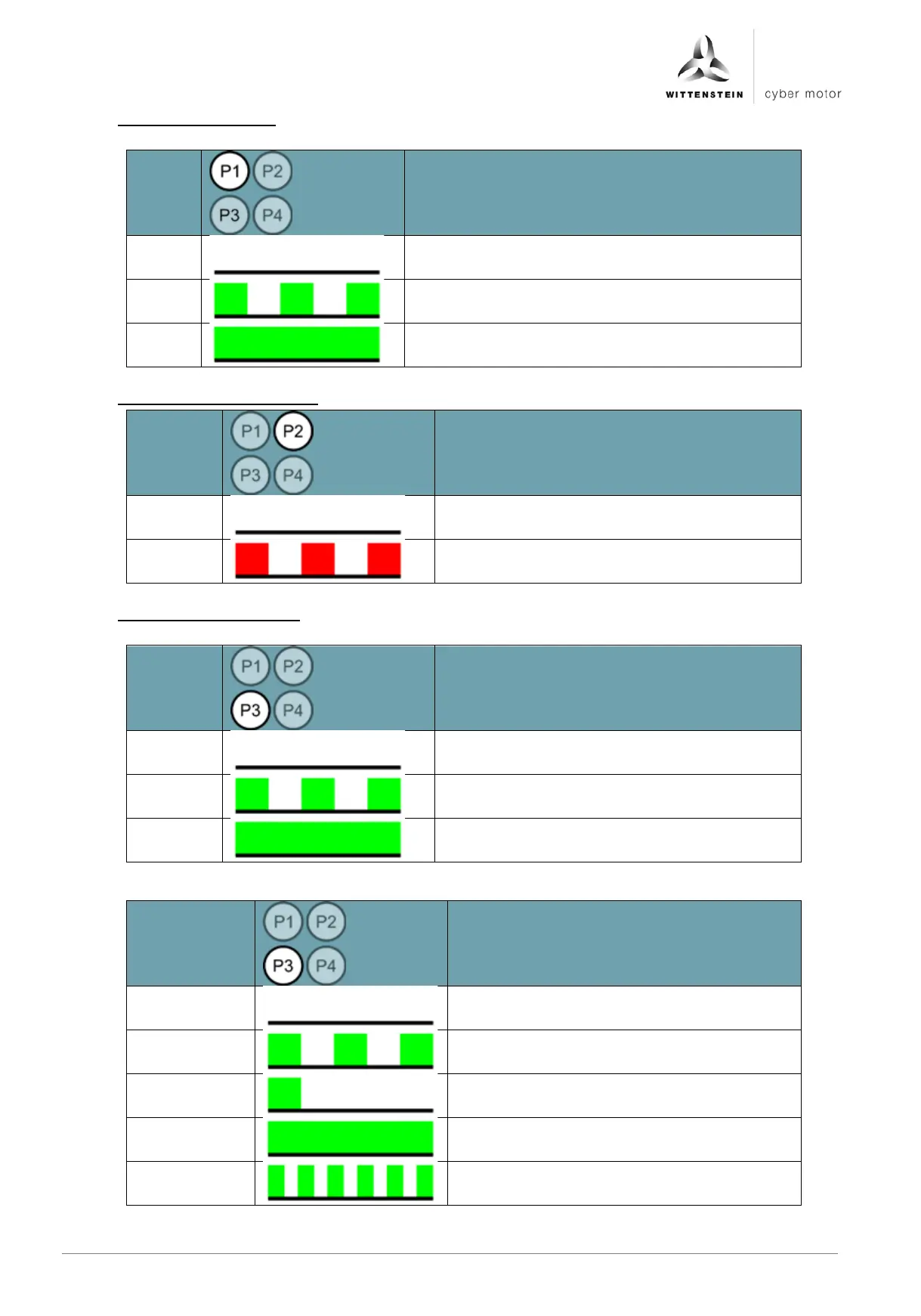

7.3.3 LED P1 Status drive
Status
LED
Meaning
Off
Drive amplifier has no power supply or is defective
Flashes
green
Drive amplifier is in functional state and output
stage disabled
Green
Drive amplifier is in functional state and output
stage enabled
7.3.4 LED P2 Fault status drive
Status
LED
Meaning
Off
Drive amplifier is in functional state
Flashes
red
Drive amplifier is in defective state and
output stage disabled
7.3.5 LED P3 Status fieldbus
CANopen:
Status
LED
Meaning
Off
Drive amplifier has no power supply or is
defective
Flashes
green
The CAN node is in the status PRE-
OPERATIONAL
Green
The CAN node is in the status
OPERATIONAL
EtherCAT:
Status LED
Meaning
Off
Drive amplifier is in the status INIT
Flashes green
(slowly)
The drive amplifier is in the status PRE-
OPERATIONAL
Lights up
green once
The drive amplifier is in the status SAFE-
OPERATIONAL
Lights up
green
The drive amplifier is in the status
OPERATIONAL
Flashes green
(rapidly)
Drive amplifier is in the status
BOOTSTRAP
