Wittenstein cyber motor simco SIM2002D - X3: Encoder; X4: Digital Outputs

Operation Manual simco
®
drive
en-20 4022-D033499 Revision: 11a

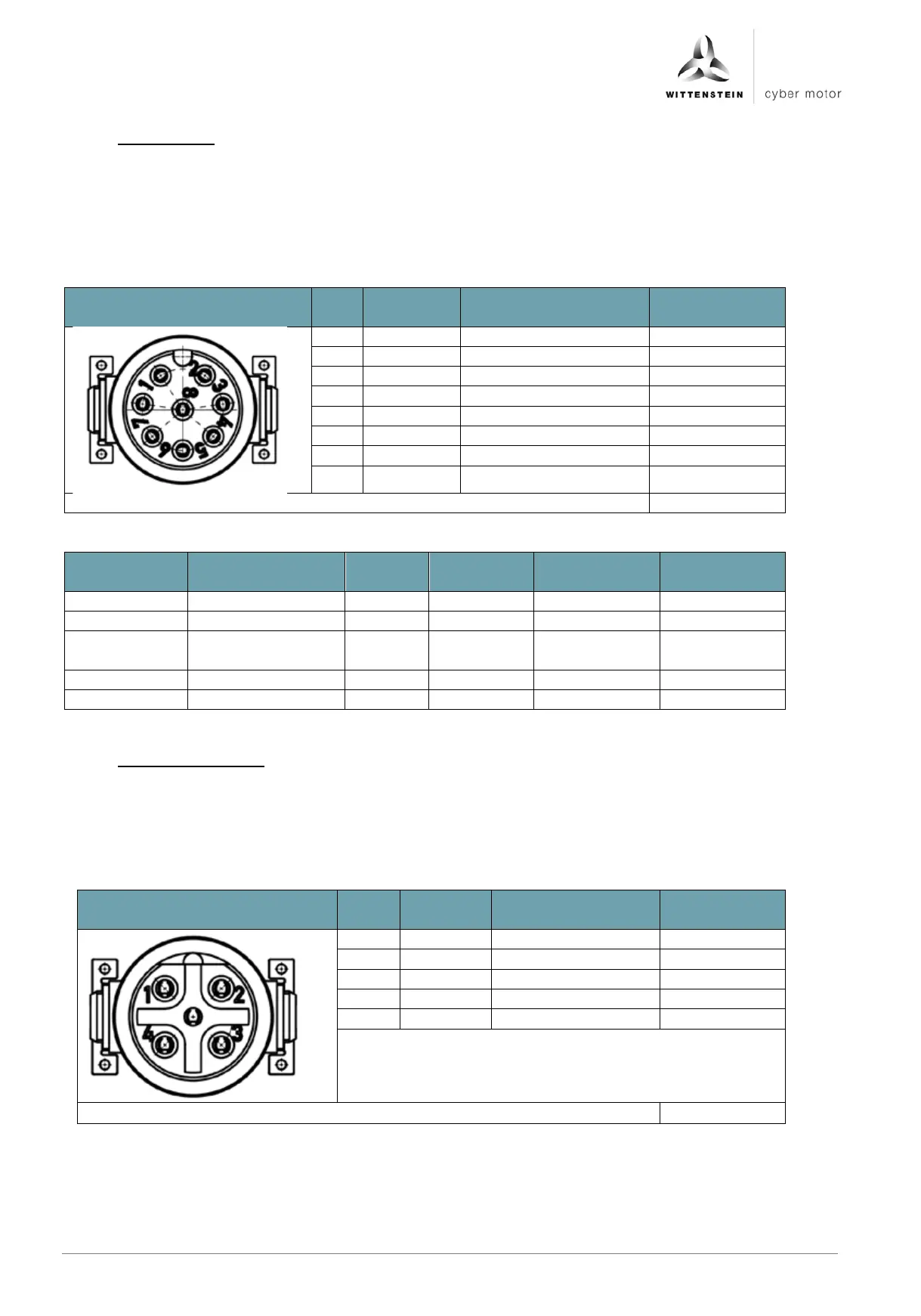

6.3.5 X3: Encoder
• The plug may only be inserted when the drive amplifier is in a de-energized state.
− Via the encoder interface X3, fully digital encoder systems with the protocols EnDat
2.2 and BISS C are supported.
− The encoder interface has a 5 V power supply, secured with a self-resetting fuse, with
a current rating of 250 mA.
Figure
Pin
no.
Signal
name
Function
Input/output
1
GND
Reference ground
Output
2
VCC
Encoder power supply
Output
3
CLOCK+
Clock output
Output
4
CLOCK-
Clock output inverted
Output
5
DATA+
Data channel
Input
6
DATA-
Data channel inverted
Input
7
N.C.
8
N.C.
Plug type on drive amplifier: M12, 8-pin, female, A-coded
Connection
Properties
Unit
Minimum
value
Nominal
value
Maximum
value
VCC
Output voltage
V DC
4,5
5
5,5
Output current
mA DC
250
A+, A-, B+,
B-, Z+, Z-
Input voltage
V DC
5
Input current
mA DC
42
Input resistance
ohm
120
6.3.6 X4: Digital outputs
• An external power supply most be connected to supply the digital outputs.
− The digital outputs are galvanically isolated from the logic and power of the drive
amplifier.
− The digital outputs are short-circuit proof.
Figure
Pin
no.
Signal
Function
Input/output
1
DOUT1
Digital output 1
Output
2
DOUT2
Digital output 2
Output
3
N.C.
4
VCC24
Digital output supply
Input
5
GND
Reference ground
Plug type on drive amplifier: M12, 5-pin, female, B-coded
