5.3 Device version IP20 decentral SIM20xxD-CC...

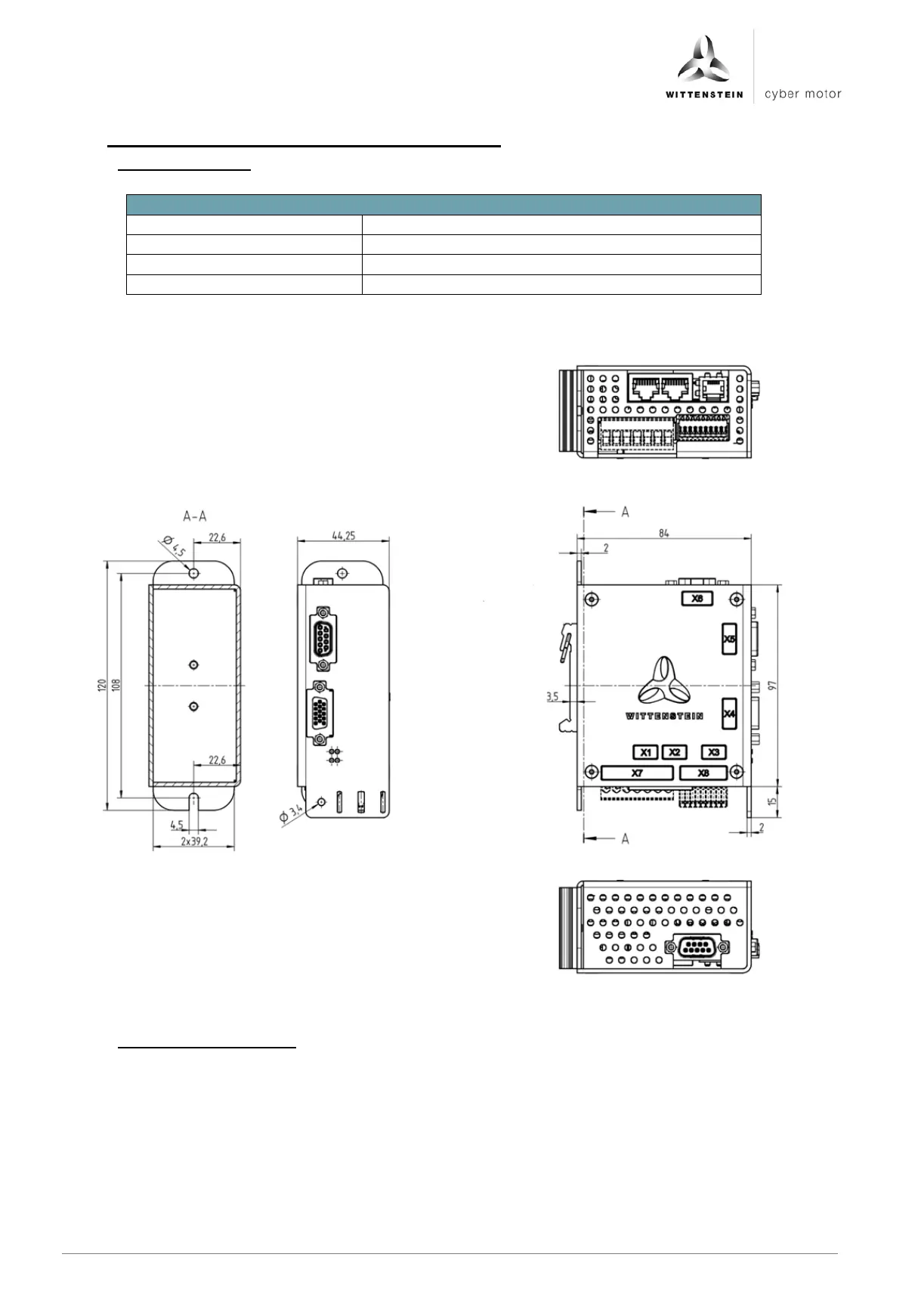

5.3.1 Dimensions IP20
Mechanical specifications
Weight (kg)
0,3
Height without plug [mm]
120
Width [mm]
44,25
Depth without plug [mm]
84
5.3.2 Mounting options IP20
The drive amplifier may be mounted on a top-hat rail of type TS 35 using the integrated top-
hat clip.
Alternatively the drive amplifier can be connected to the mounting plate using a screw
connection:
Mounting material: 2 cylinder head screws with hexagon socket ISO 4762 - M 4 – 8.8
Required tool: Hex key AF 3
Tightening torques see Chapter 9.1 Tightening torques
