Operation Manual simco
®
drive
Revision: 11a 4022-D033499 en-25
日本語

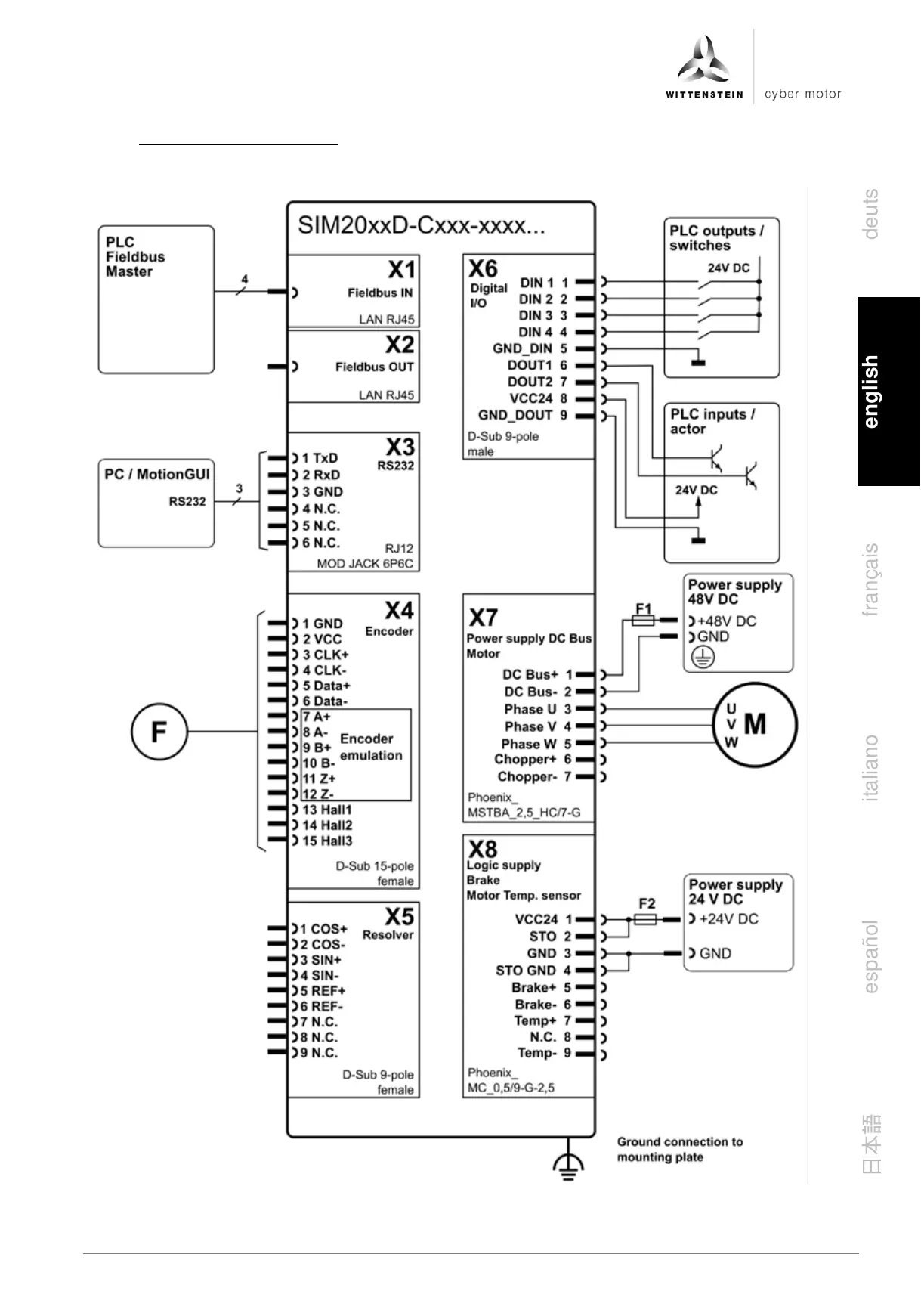

6.4.2 Connection diagram IP20
The following illustration shows the principal connection diagram of the drive amplifier:
