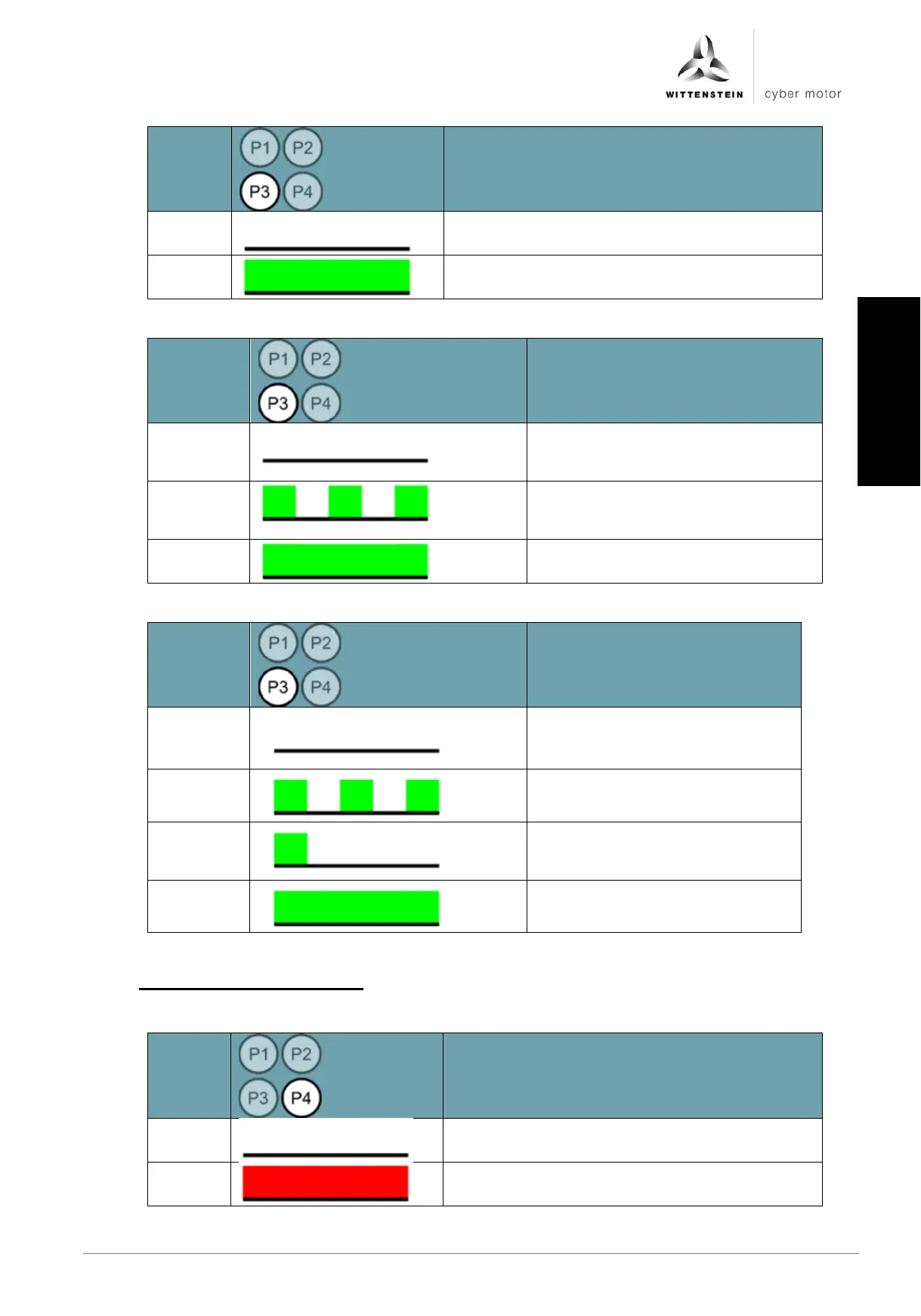

Profinet:
Status
LED
Meaning
Off
Profinet interface not ready
Green
Profinet interface is ready
EtherNet/IP:
Status
LED
Meaning
Off
Drive amplifier has no power
supply or EtherNet/IP interface not
ready
Flashes
green
EtherNet IP - Interface is ready for
communication however there is
no active communication
Green
Drive amplifier has EtherNet IP
I/O-Connection
SERCOS III:
State
LED
Meaning
off
No Sercos communication
available
flashes
green
Sercos communication will be
etablished
single
green
flash
The servo drive is in state
SAFE-OPERATIONAL
glows
green
Sercos phase 4 attained
7.3.6 LED P4 Fault status fieldbus
CANopen:
Status
LED
Meaning
Off
The CAN node is ready for operation
Red
The CAN node is defective
