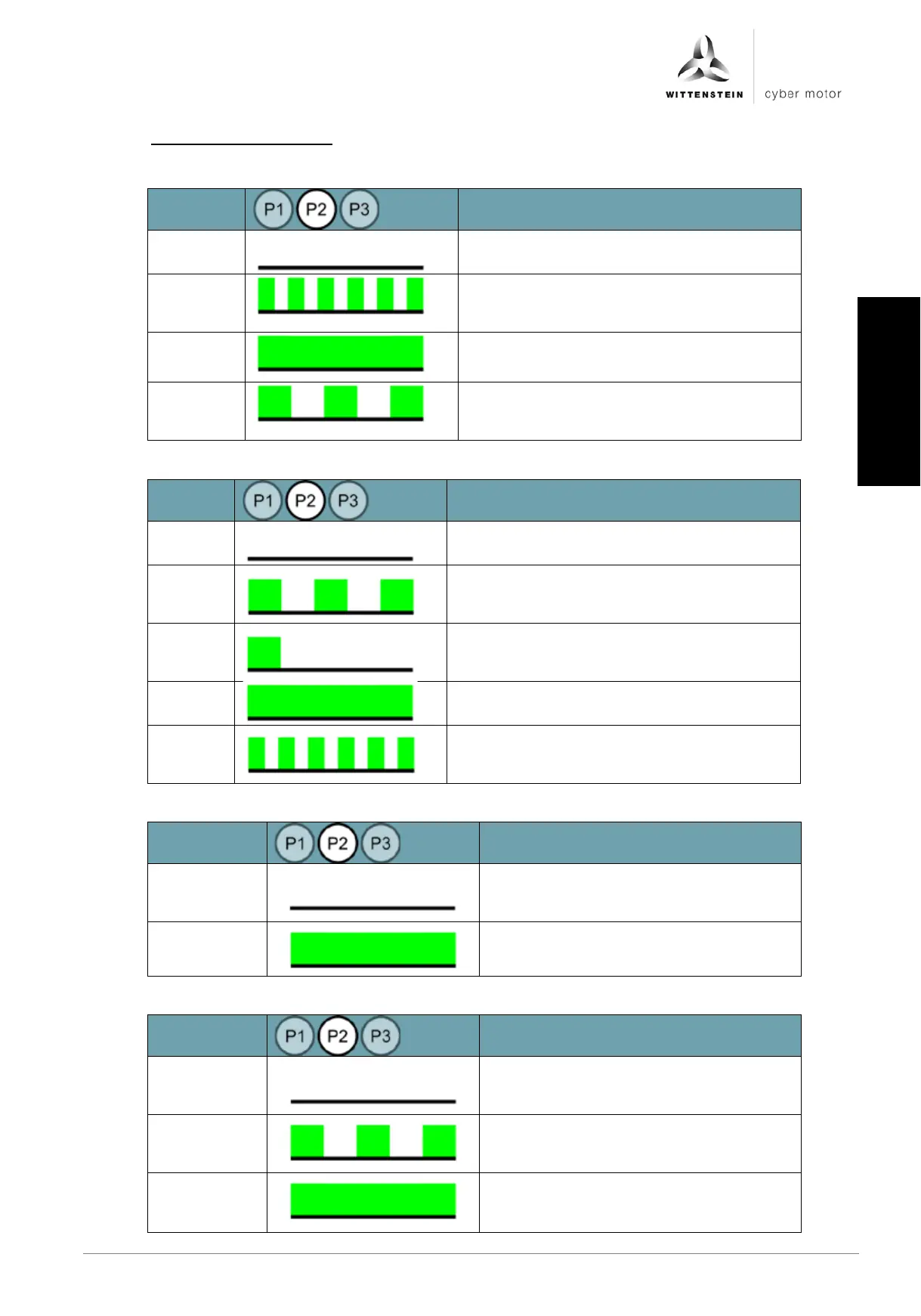

7.3.1.2 LED P2 Status fieldbus
CANopen:
Status
LED
Meaning
Off
Drive amplifier has no power supply or is
defective
Flashes
green
(rapidly)
The CAN node is in the status PRE-
OPERATIONAL
Green
The CAN node is in the status
OPERATIONAL
Flashes
green
(slowly)
The CAN node is in the status STOPPED
EtherCAT:
Status
LED
Meaning
Off
Drive amplifier is in the status INIT
Flashes
green
(slowly)
The drive amplifier is in the status PRE-
OPERATIONAL
Lights up
green
once
The drive amplifier is in the status SAFE-
OPERATIONAL
Lights up
green
The drive amplifier is in the status
OPERATIONAL
Flashes
green
(rapidly)
Drive amplifier is in the status
BOOTSTRAP
PROFINET:
State LED
Meaning
off
Profinet interface not ready
flashes
green
Profinet interface ready
EtherNET/IP:
State LED
Meaning
off
Servo drive is not connected to supply
voltage or EtherNet/IP – Interface not
ready
flashes
green
The EtherNet/IP – Interface is ready to
communicate, but has not an active
connection
glows
green
The servo drive has establihed an
active EtherNet IP I/O-connection
