Operation Manual simco
®
drive
Revision: 11a 4022-D033499 en-39
deutsch
english
français
italiano
español
日本語
SERCOS III:
State LED
Meaning
off
the fieldbus is ready
glows red
Sercos communication error or Sercos
connection is not established yet

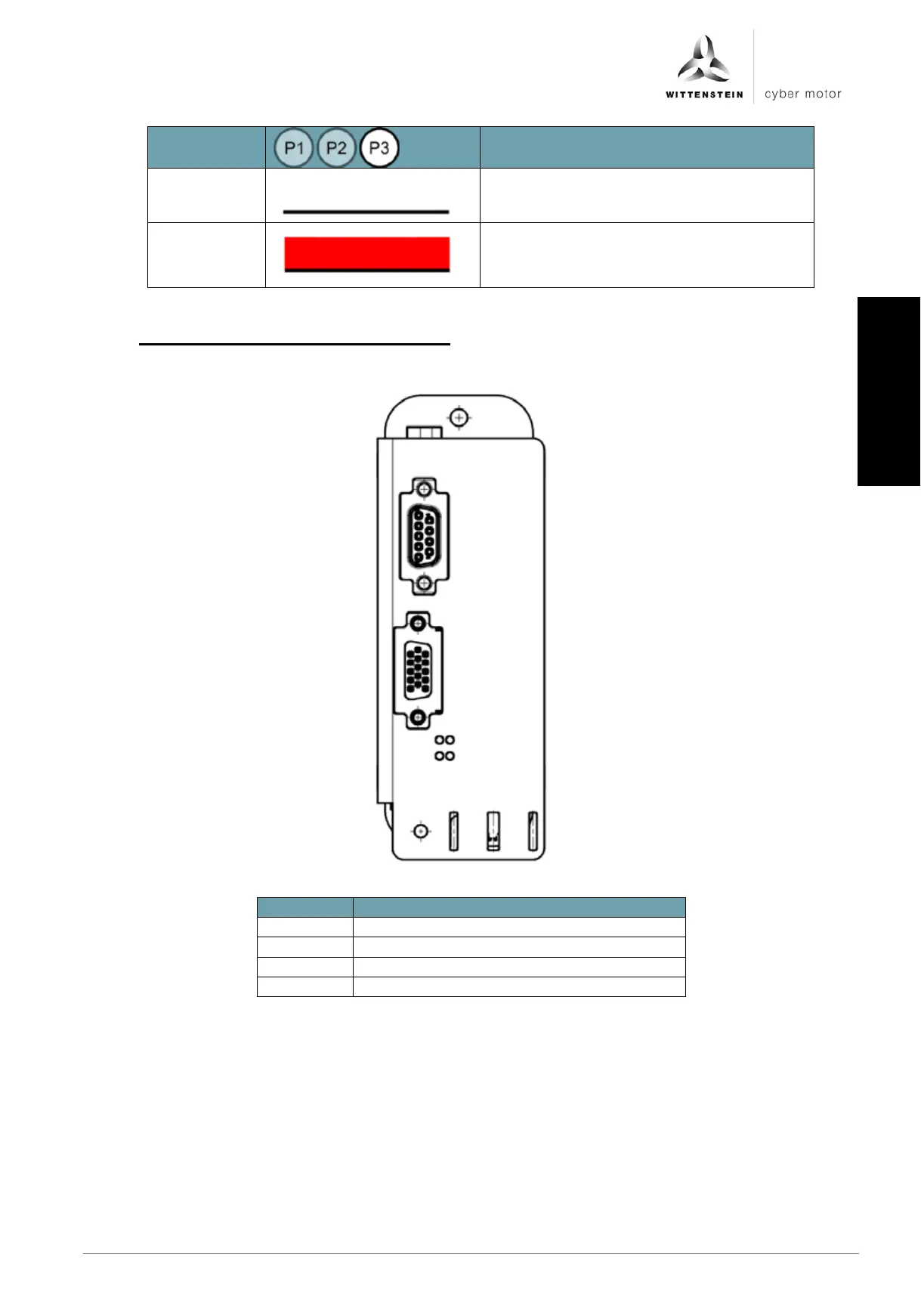

7.3.2 Displays on device version central IP20
Three multicolor LEDs (P1-P4) are available on the drive amplifier for status and fault
messages.
LED
Function
P1
Status of the drive (green)
P2
Fault status of the drive (red)
P3
Status of the fieldbus (green)
P4
Fault status of the fieldbus (red)
P1
P2
P3
P4
