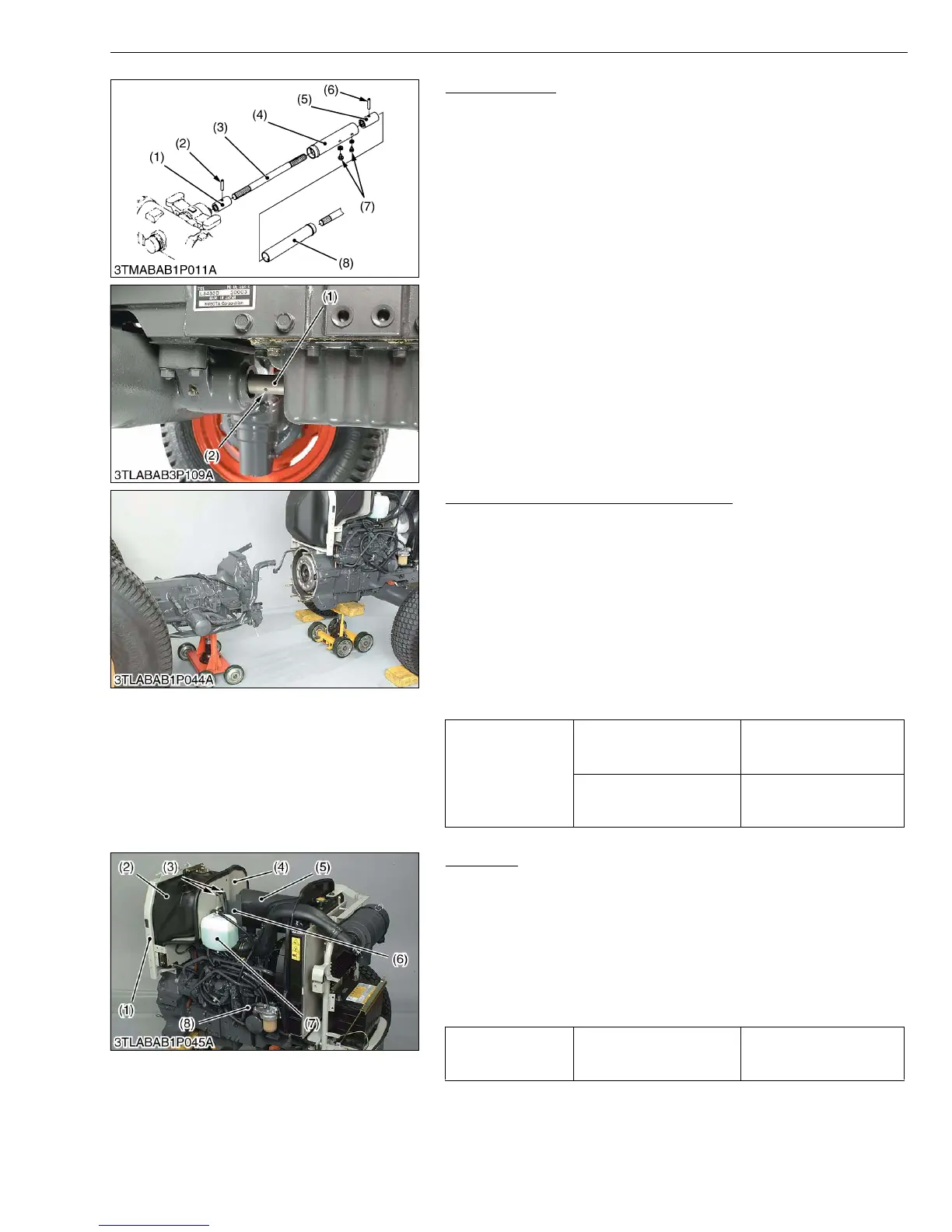

Propeller Shaft
1. Slide the propeller shaft cover (4) and (8) after removing the
screws (7).
2. Tap out the spring pins (2), (6) and slide the couplings (1), (5) and
then remove the propeller shaft with covers (4), (8).
(When reassembling)
• Apply grease to the splines of propeller shaft 1 (3).
W1068780
Separating Engine and Clutch Housing
1. Place the disassembling stand under the engine and clutch
housing case.
2. Remove the fuel tank support mounting screws.
3. Remove the engine and clutch housing mounting screws and
nuts.
4. Separate the engine and clutch housing while lifting up the tank
frame.
(When reassembling)
• Apply grease to the spline of clutch shaft.
• Apply liquid gasket (Three Bond 1211 or equivalent) to joint face
of the flywheel housing and clutch housing.
W1069132
Fuel Tank
1. Remove the muffler (5). (ROPS model)
2. Disconnect the overflow hoses (3) and fuel hose (8).
3. Remove the reserve tank bracket (6). (ROPS model)
4. Remove the compressor bracket. (Cabin model)
5. Remove the shutter plate (4).
6. Remove the tank frame mounting bolt and remove the fuel tank
(2) with frame (1).
(When reassembling)
W1015605
(1) Coupling
(2) Spring Pin
(3) Propeller Shaft 1
(4) Propeller Shaft Cover
(5) Coupling
(6) Spring Pin
(7) Screws
(8) Propeller Shaft Cover
Tightening torque
Engine and clutch housing
mounting screw and nut
77.5 to 90.2 N·m
7.9 to 9.2 kgf·m
57.1 to 66.5 ft-lbs
Engine and clutch housing
mounting stud bolt
39.2 to 49.0 N·m
4.0 to 5.0 kgf·m
28.9 to 36.2 ft-lbs
Tightening torque Muffler mounting screw
31.4 to 37.2 N·m
3.2 to 3.8 kgf·m
23.1 to 27.5 ft-lbs
(1) Fuel Tank Frame
(2) Fuel Tank
(3) Overflow Hoses
(4) Shutter Plate
(5) Muffler
(6) Reserve Tank Bracket
(7) Recovery Tank
(8) Fuel Hose
To Next Page
