1-S24
L3130 · L3430 · L3830 · L4630 · L5030, WSM
ENGINE

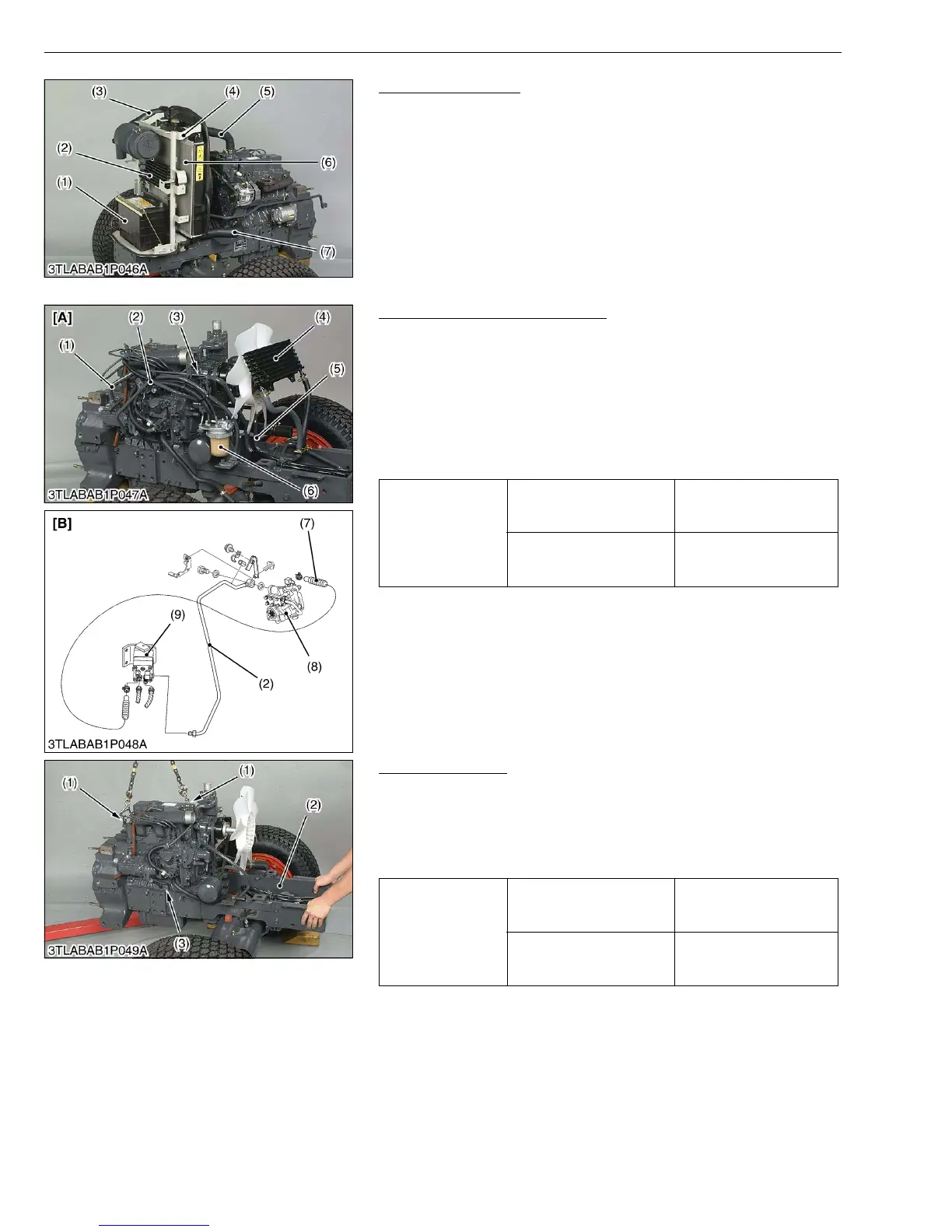

Radiator Assembly
1. Disconnect the air cleaner hose (3). (ROPS model)
2. Remove the battery (1). (ROPS model)
3. Remove the oil cooler mounting screws. (ROPS model)
4. Remove the battery stay (4). (ROPS model)
5. Disconnect the radiator hoses (5), (7).
6. Remove the radiator assembly.
W1015759
Hydraulic Pipes and Fuel Filter
1. Disconnect the hoses and remove the oil cooler (4). (HST model)
2. Remove the oil cooler outlet pipe (1) and inlet pipe (5). (HST
model)
3. Remove the power steering delivery pipe (2).
4. Disconnect the power steering return hose (7). (Except HST
model.)
5. Remove the fuel filter (6) with bracket (3).
(When reassembling)
W1015859
Front Axle Frame
1. Hoist the engine by the chain at the engine hook (1).
2. Remove the dipstick stay mounting screw (3) and front axle
frame mounting screws.
3. Separate the front axle frame (1) from engine.
(When reassembling)
W1016162
(1) Battery
(2) Oil Cooler (HST Model Only)
(3) Air Cleaner Hose
(4) Battery Stay
(5) Radiator Upper Hose
(6) Radiator
(7) Radiator Lower Hose
Tightening torque
Joint bolt for power
steering delivery pipe
39.2 to 49.0 N·m
4.0 to 5.0 kgf·m
28.9 to 36.2 ft-lbs
Cap nut of power steering
delivery pipe
49.0 to 58.8 N·m
5.0 to 6.0 kgf·m
36.1 to 43.4 ft-lbs
(1) Oil Cooler Outlet Pipe
(2) Power Steering Delivery Pipe
(3) Bracket
(4) Oil Cooler
(5) Oil Cooler Outlet Pipe
(6) Fuel Filter
(7) Power Steering Return Hose
(8) Hydraulic Pump with Regulating
Valve
(9) Steering Controller
[A] HST Model
[B] GST / Manual Transmission Model
Tightening torque
Front axle frame mounting
screw (7T)
(L3130, L3430, L3830)
77.5 to 90.2 N·m
7.9 to 9.2 kgf·m
57.1 to 66.5 ft-lbs
Front axle frame mounting
screw (9T)
(L4630, L5030)
102.9 to 117.6 N·m
10.5 to 12.0 kgf·m
76.0 to 86.8 ft-lbs
(1) Engine Hook
(2) Front Axle Frame
(3) Dipstick Stay Mounting Screw
To Next Page
