3-M27
L3130 · L3430 · L3830 · L4630 · L5030, WSM
TRANSMISSION

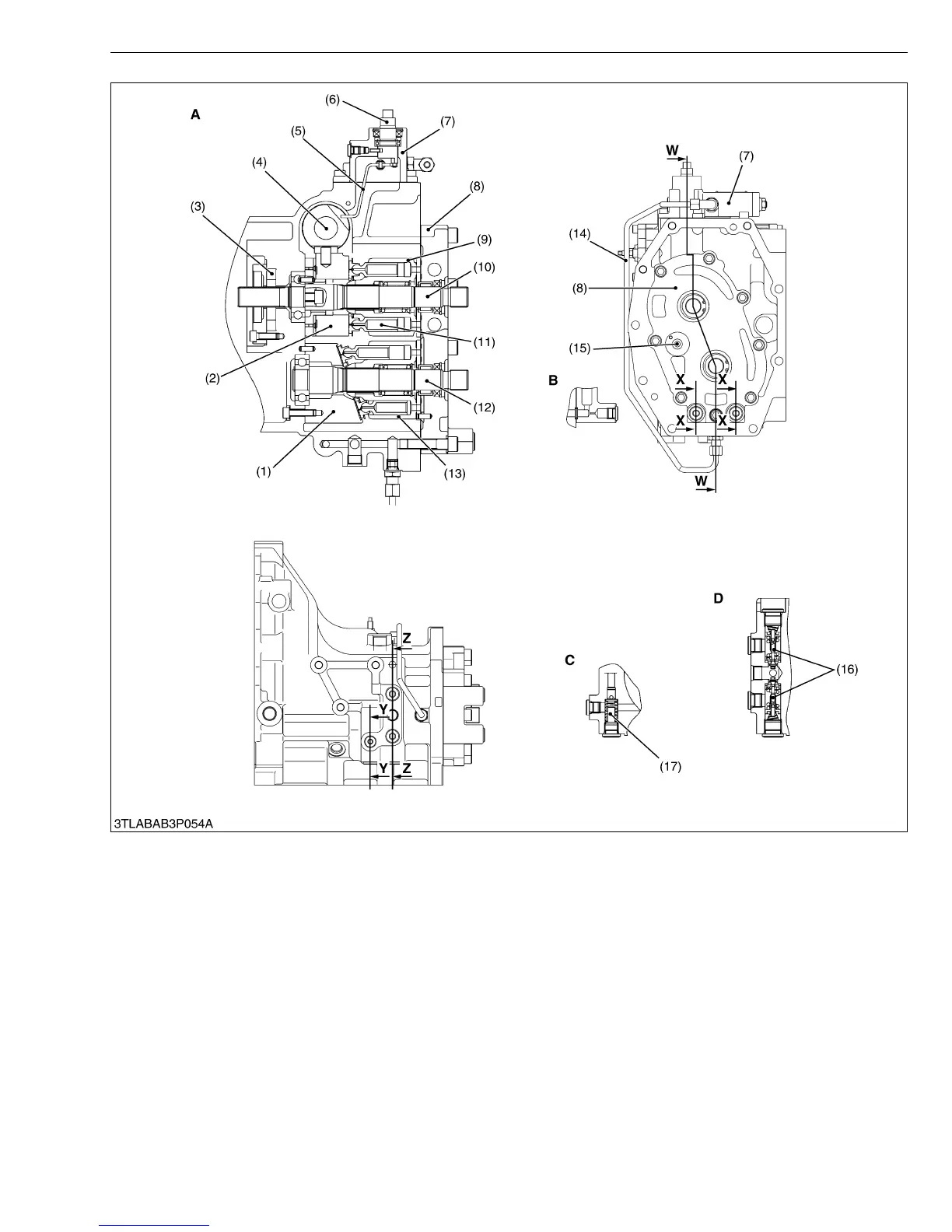

(1) Fixed Swashplate
(2) Variable Swashplate
(3) Charge Pump
(4) Servo Piston
(5) Feedback Rod
(6) Control Shaft
(7) Regulator Assembly
(8) Port Block Cover
(9) Cylinder Block (Pump)
(10) Input Shaft (Pump Shaft)
(11) Piston
(12) Output Shaft (Motor Shaft)
(13) Cylinder Block (Motor)
(14) Bypass Pipe (Servo Pipe)
(15) Case Relief Valve
(16) Check and High Pressure
Relief Valve
(17) Charge Relief Valve
A : Sectional View W-W
B : Sectional View X-X
C : Sectional View Y-Y
D : Sectional View Z-Z
To Next Page
