ELECTRICAL SYSTEM
■ Overheating Warning
The IntelliPanel perceive the rise of coolant
temperature, and has the function to display the overheat
warning on the LCD.
When the coolant temperature becomes 125 °C (257
°F) or more, “OVERHEAT” (1) and “Eng SLOW” (2) are
alternately displayed. Therefore, when these are
displayed, lower the engine speed at once according to
the message.
When the coolant temperature becomes 110 °C (230
°F) or less, “Eng STOP” (3) and “Check” (4) are
alternately displayed. Therefore, when these are
displayed, stop the engine and check the related place.
When the coolant temperature becomes 100 °C (212
°F) or less, Normal Display is displayed.
The warning lamp (6) comes on when the overheat
display-1 (1) is displayed, and it keeps being on until
water temperature is becoming 100 °C (212 °F) or less.
W1018762
■ Engine Oil Pressure and Electric Charging
Warning
If the engine oil pressure goes below the 49 kPa (0.5
kgf/cm
2
, 7.1 psi), the warning lamp (1) will come on. If
this should happen during operation, and it does not go
off when the engine is accelerated to more than 700
min
−1
(rpm), check level of engine oil.
If the alternator is not charging the battery, warning
lamp (2) will come on. If this should happen during
operation, check the charging system.
At above-mentioned the warning lamp’s lighting, and
it informs warning.
W1018641

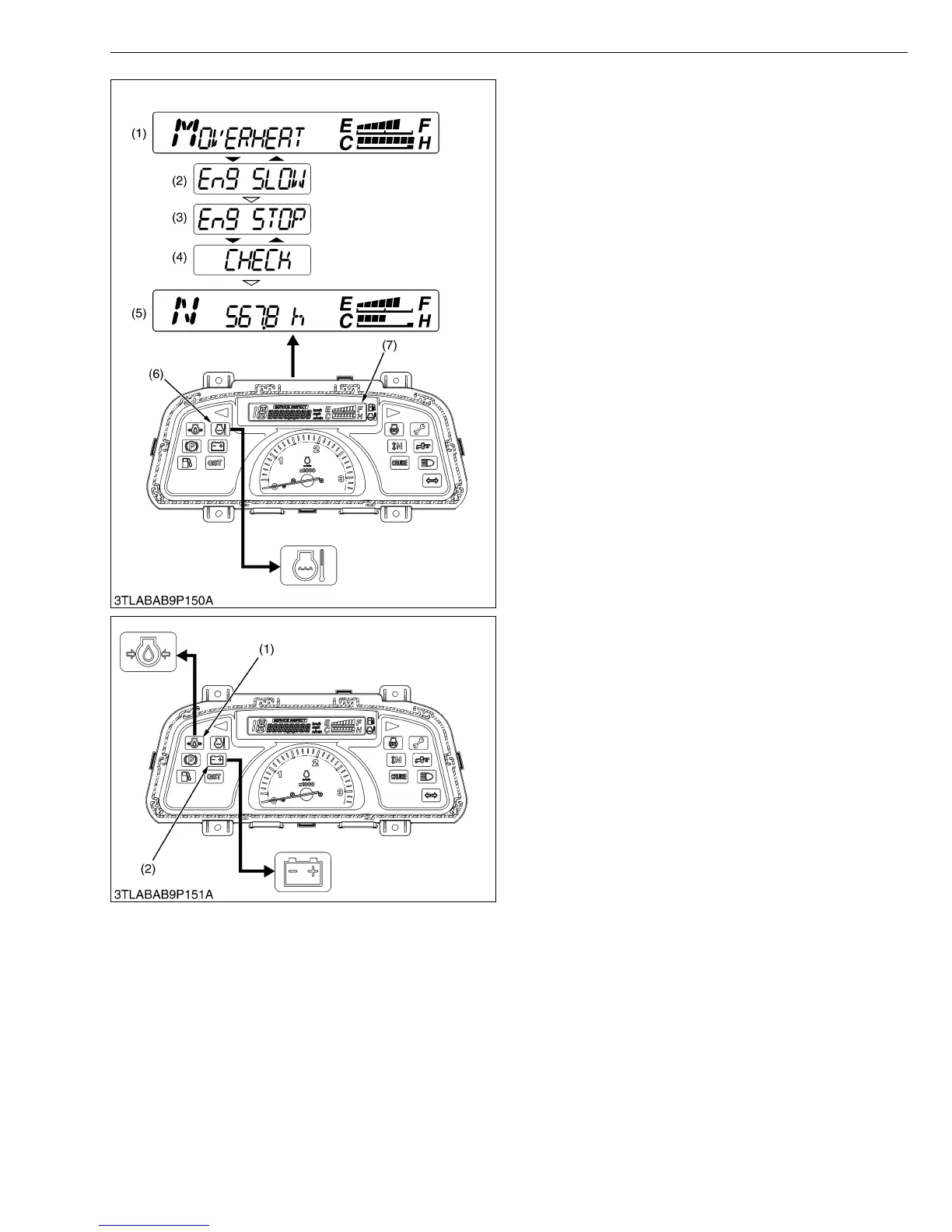

(1) Overheat Display-1
(2) Overheat Display-2
(3) Overheat Display-3
(4) Overheat Display-4
(5) Normal Display
(6) Overheat Warning Lamp
(7) Liquid Crystal Display (LCD)
(1) Engine Oil Pressure Warning
Lamp
(2) Electric Charging Warning
Lamp
