9-M24
L3130 · L3430 · L3830 · L4630 · L5030, WSM
ELECTRICAL SYSTEM
(E) Lamp Control

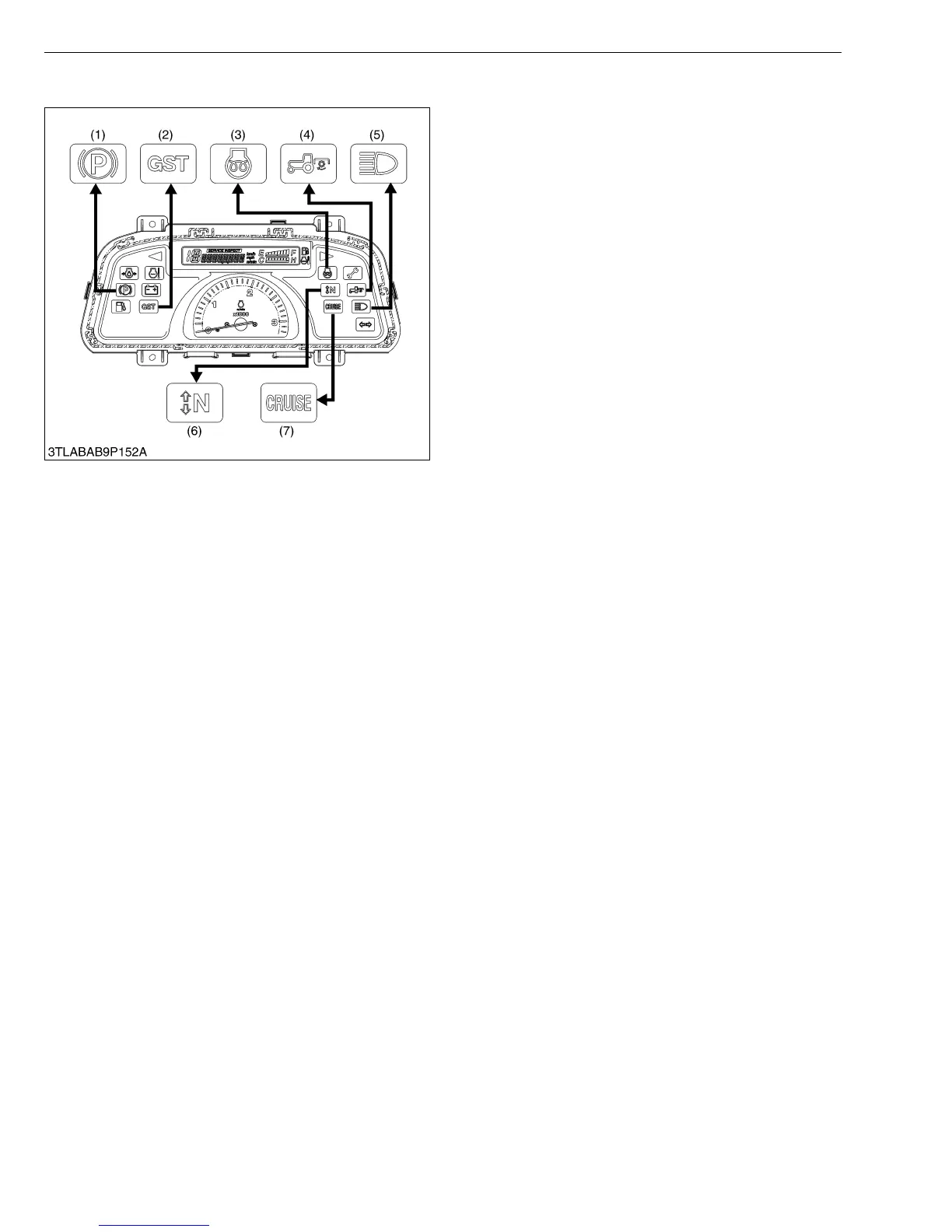

In this IntelliPanel, the control of various monitor
lamps shown in figure are equipped in addition to
warning lamps.
(1) Parking Brake Lamp
If the parking brake is applied, parking brake switch is
turned on and monitor lamp will come on.
(2) GST Warning Indicator Lamp (GST Model Only)
If there have electrically problem in GST system, the
GST warning indicator lamp will come on.
(3) Glow Indicator Lamp
If the main switch is turned to “ON” position, the glow
indicator lamp comes on, and goes off automatically
when preheating is completed.
(4) Rear PTO Lamp
If the PTO shift lever is “ON” position, PTO switch is
turned on, and monitor lamp will come on.
(5) High Beam Indicator Lamp
If the head light switch is turned to High beam
position, the indicator lamp comes on.
(6) Shuttle Neutral Lamp
(Manual and GST Model Only)
If the shuttle lever is set a Neutral position, this
monitor lamp will come on.
(7) Cruise Lamp (HST Model Only)
If the cruise control lever is at speed set position, the
cruise lamp will come on.
