10-S47
L3130 · L3430 · L3830 · L4630 · L5030, WSM
CABIN

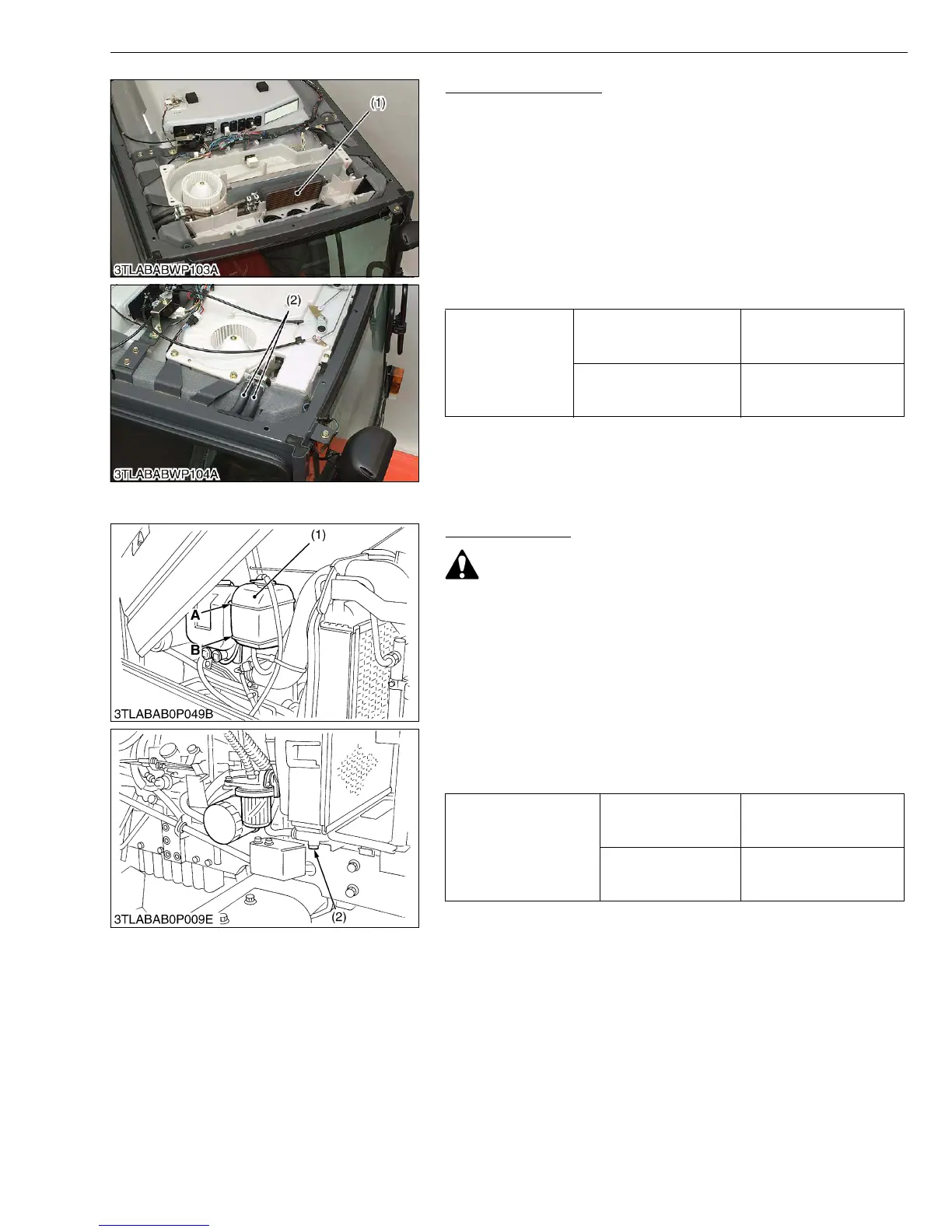

Air Conditioning Unit
1. Remove the unit cover (1).
2. Disconnect the heater hoses (5).
3. Remove the screws and take off the unit.
4. Remove the duct hoses.
(When reassembling)
• When reconnecting the cooler pipes with the unit, apply
compressor oil (DENSO.CO. OIL8 or equivalent) to O-rings.
• When remounting the unit, tighten five screws by hand and finally
retighten them after aligning the inner roof duct with the unit duct.
• When connecting the heater hose with heater unit, hose should
be put into the heater unit pipe more than 30 mm (1.2 in.)
W1035995
(E) Removing Heater Hoses
Draining Coolant
CAUTION
• Never remove the radiator cap until coolant temperature is
well below its boiling point. Then loosen cap slightly to the
stop to relieve any excess pressure before removing cap
completely.
1. Stop the engine and let cool down.
2. Loosen the drain plug (2) to drain the coolant.
3. Remove the radiator cap to completely drain the coolant.
4. After all coolant is drained, retighten the drain plug (2).
(When refilling)
• Fill the coolant between the “FULL” and “LOW” marks of
recovery tank (1).
W10652320
Tightening torque
Heater unit mounting
screw (M6)
3.92 to 6.86 N·m
0.40 to 0.70 kgf·m
2.89 to 5.06 ft-lbs
Heater unit mounting
screw (M8)
9.80 to 11.68 N·m
1.00 to 1.19 kgf·m
7.23 to 8.60 ft-lbs
(1) Heater Core (2) Heater Hoses
Coolant capacity (with
recovery tank)
L3830
L4630
8.7 L
9.2 U.S.qts
7.7 Imp.qts
L5030
9.2 L
9.7 U.S.qts
8.1 Imp.qts
(1) Recovery Tank
(2) Drain Plug
A : FULL
B : LOW
To Next Page
