10-S51
L3130 · L3430 · L3830 · L4630 · L5030, WSM
CABIN

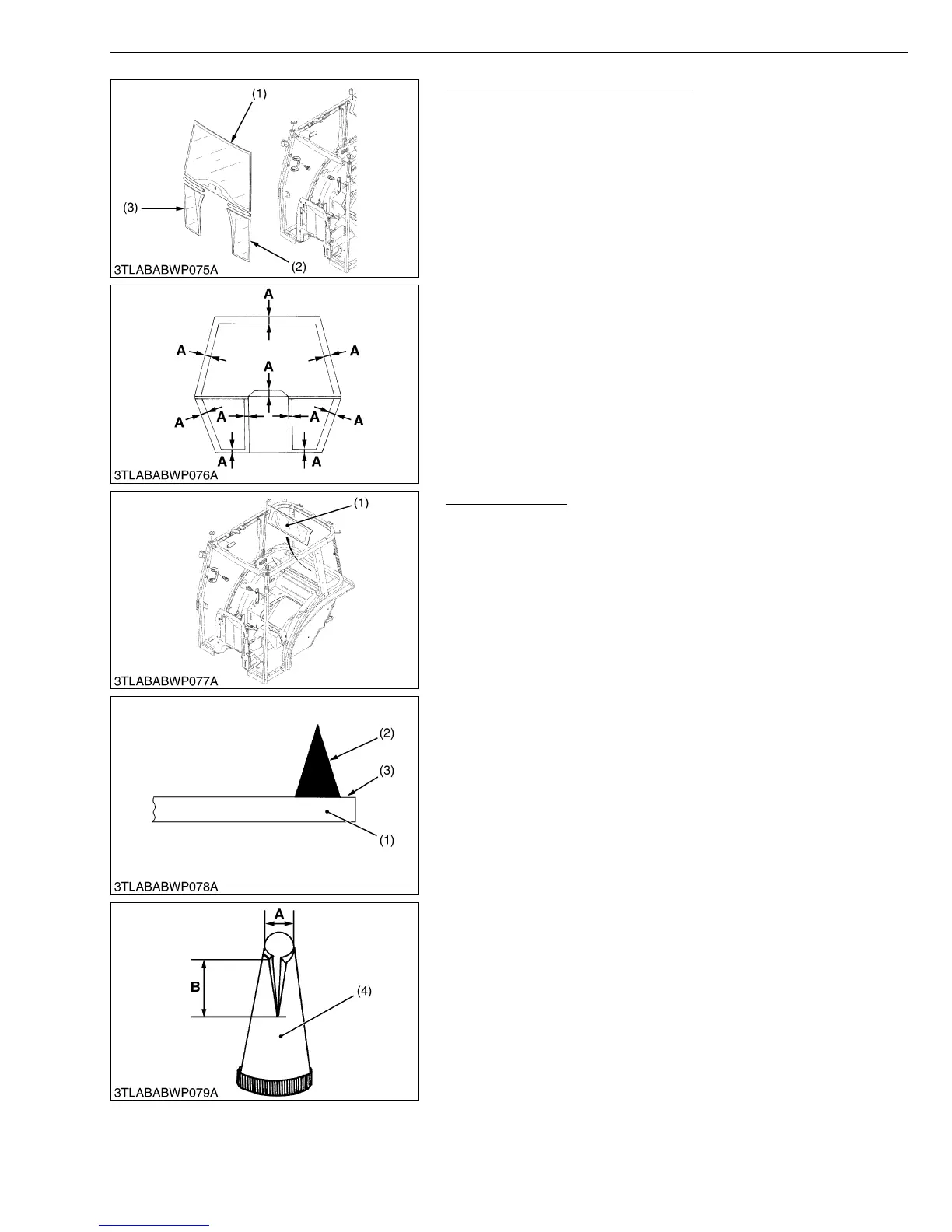

Before Replacing Windshields (3)
1. Check that the glasses are not damaged and cracked.
2. Turn over the glass and clean this surface of the glass by Sika-
Activator.
3. The cleaning area of the rear surface is indicated “A” in the
figure left.
• If not cleaning the glass, it may result in adhesive failure.
W1035931
Rear Windshield
1. Apply a Sika primer 209 on the cabin frame.
2. Apply a Sika-Activator (3) on the rear windshield shown in figure.
3. Apply a Sika Tack-Ultrafast (2) (or equivalent) on the rear
windshield (1) as shown in figure.
4. Install the rear windshield (1) to the cabin and fix tit with a
gummed tape.
5. Leave it for one hour.
• Apply the Sika Tack-Ultrafast (or equivalent) with the jig
having the specified tip shape as shown in the figure left.
• Apply it with a uniform speed to minimize unevenness.
• Follow the instruction manual of Sika Tack-Ultrafast.
• When the gummed tape is removed the rear windshield may
be displaced. In this case fix it again.
• Remove the gummed tape (adhesive tape) little by little to
confirm the bonding condition.
W1054050
(1) Upper Windshield
(2) Lower Windshield (Left)
(3) Lower Windshield (Right)
A : 18 to 22 mm (0.71 to 0.87 in.)
(1) Rear Windshield
(2) Sika Tack-Ultrafast
(3) Sika-Activator
(4) Jig
A : 8 mm dia. (0.31 in. dia.)
B : 12 mm (0.47 in.)
To Next Page
