10-S52
L3130 · L3430 · L3830 · L4630 · L5030, WSM
CABIN
Front Windshield

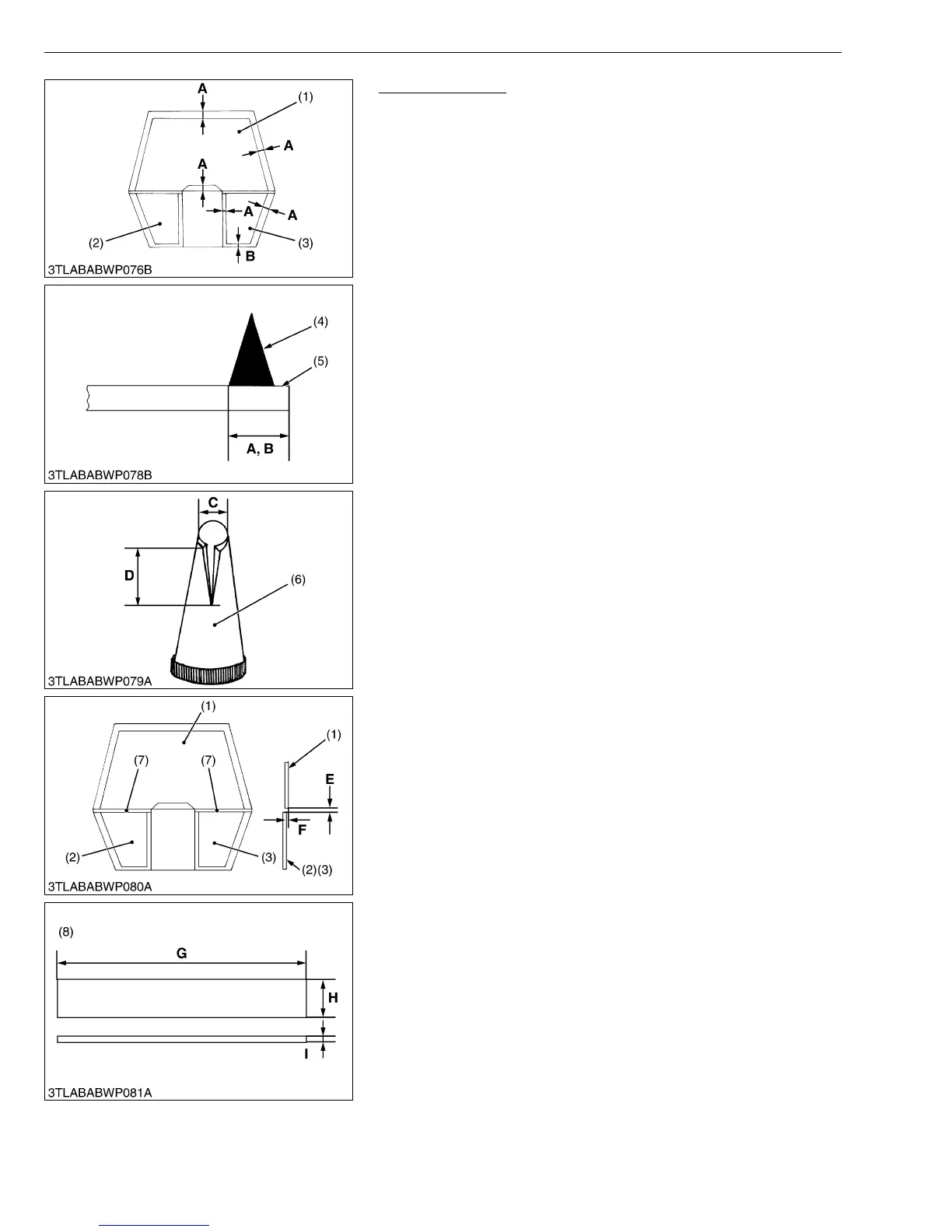

• Apply the Sika Tack-Ultrafast (or equivalent) with the jig
having the specified tip shape as shown in the figure left.
• Apply it with a uniform speed to minimize unevenness.
• Follow the instruction manual of Sika Tack-Ultrafast.
1. Apply the Sika Primer 209 on the cabin frame A and B in the
figure.
2. Apply the Sika-Activator (5) on the windshield A and B in the
figure.
3. Apply the Sika Tack-Ultrafast (4) on the windshield A and B in the
figure.
4. Install the lower (left or right) windshield to the cabin and fix it with
a gummed tape.
5. Set the upper windshield to the cabin and fix it with a gummed
tape.
• Use a jig (8) shown in the figure to create even clearance E
[approx. 5 mm (0.2 in.)] between the lower and upper
windshield.
• The level unevenness between the upper and lower
windshields should be -1 to +1 mm (−0.04 to +0.04 in.) or less
at the windshield surface.
6. Leave it for one hour.
7. Remove the jig (8).
8. Install the H rubber (7) between the lower and upper windshield
(2), (3).
9. Apply the Shin Etsu silicon KE45 in H rubber (7).
10.Apply the Shin Etsu silicon KE45 on the edge of H rubber (7).
• When the gummed tape is removed, the glass may be
displaced. In this case fix it again.
• Remove the gummed tape (adhesive tape) little by little to
confirm the bonding condition.
W1054287
(1) Upper Windshield
(2) Lower Windshield (Right)
(3) Lower Windshield (Left)
(4) Sika Tack-Ultrafast
(5) Sika Activator
(6) Jig
(7) H Rubber
(8) Jig
A : 10 mm (0.39 in.)
B : 12 mm (0.47 in.)
C : 8 mm dia. (0.31 in. dia.)
D : 12 mm (0.47 in.)
E : 5 mm (0.2 in.)
F : −1.0 to +1.0 mm (−0.04 to +0.04 in.)
G : 300 mm (11.8 in.)
H : 20 mm (0.8 in.)
I : 5 mm (0.2 in.)
To Next Page
