Commissioning Multi 3430
20
ba75865e08 06/2010
CAUTION
Make sure that the poles of the rechargeable batteries are posi-
tioned correctly.
The
± signs on the batteries must correspond to the ± signs in the
battery compartment.
3.3.2 Connecting the power pack / charging the batteries
CAUTION
The line voltage at the operating site must lie within the input volt-
age range of the original power pack (see section 7.1).
CAUTION
Use original power packs only (see section 7.1).
CAUTION
The batteries in the battery compartment are automatically
charged when the power pack is connected.
Make sure that only NiMH rechargeable batteries are in the battery
compartment. The charging process is optimized for NiMH re-
chargeable batteries. Other battery types can cause damage dur-
ing the charging process.

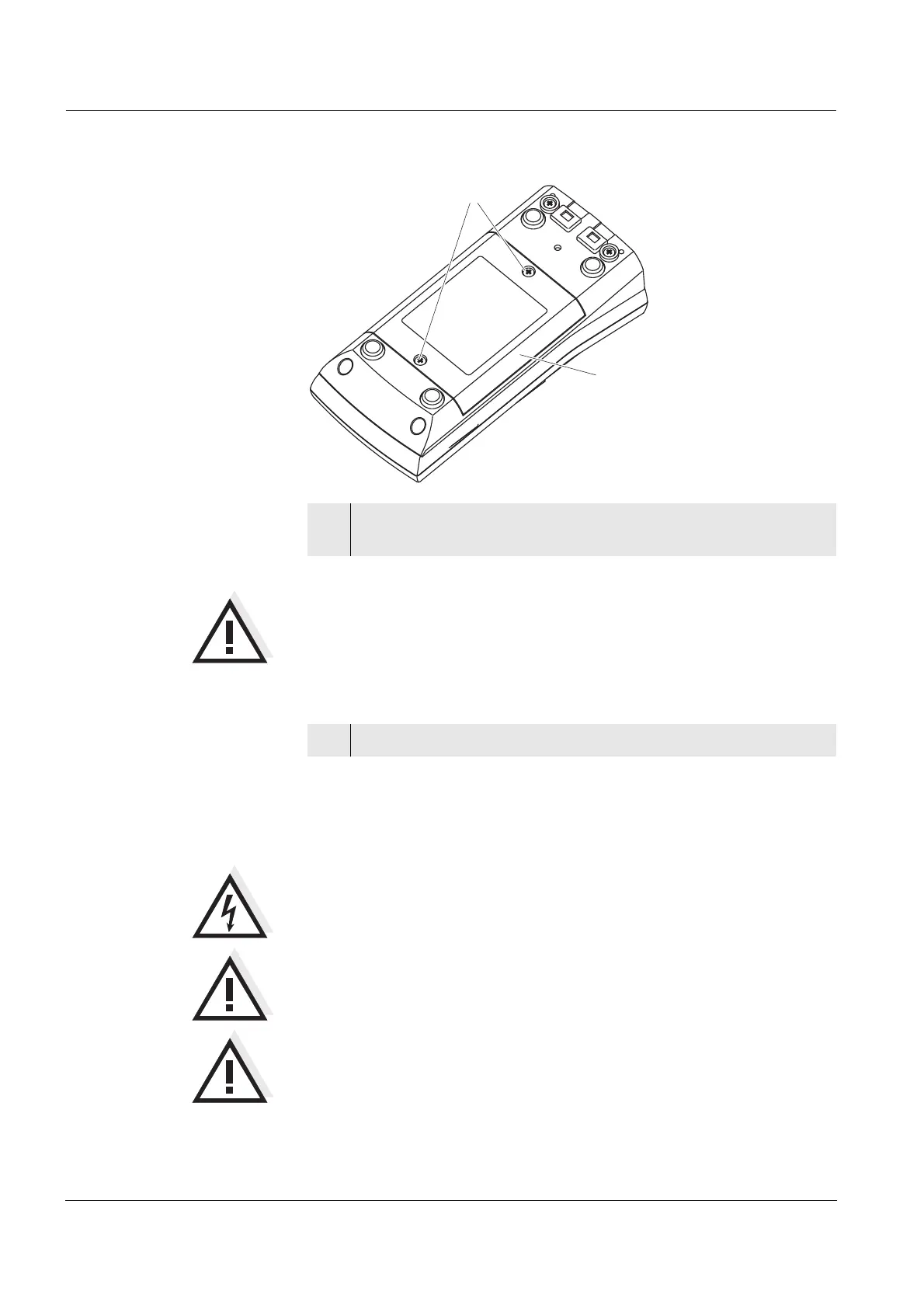

3 Place four rechargeable batteries (type Mignon AA) in the bat-
tery compartment.
4 Close the battery compartment (2) and tighten the screws (1).
