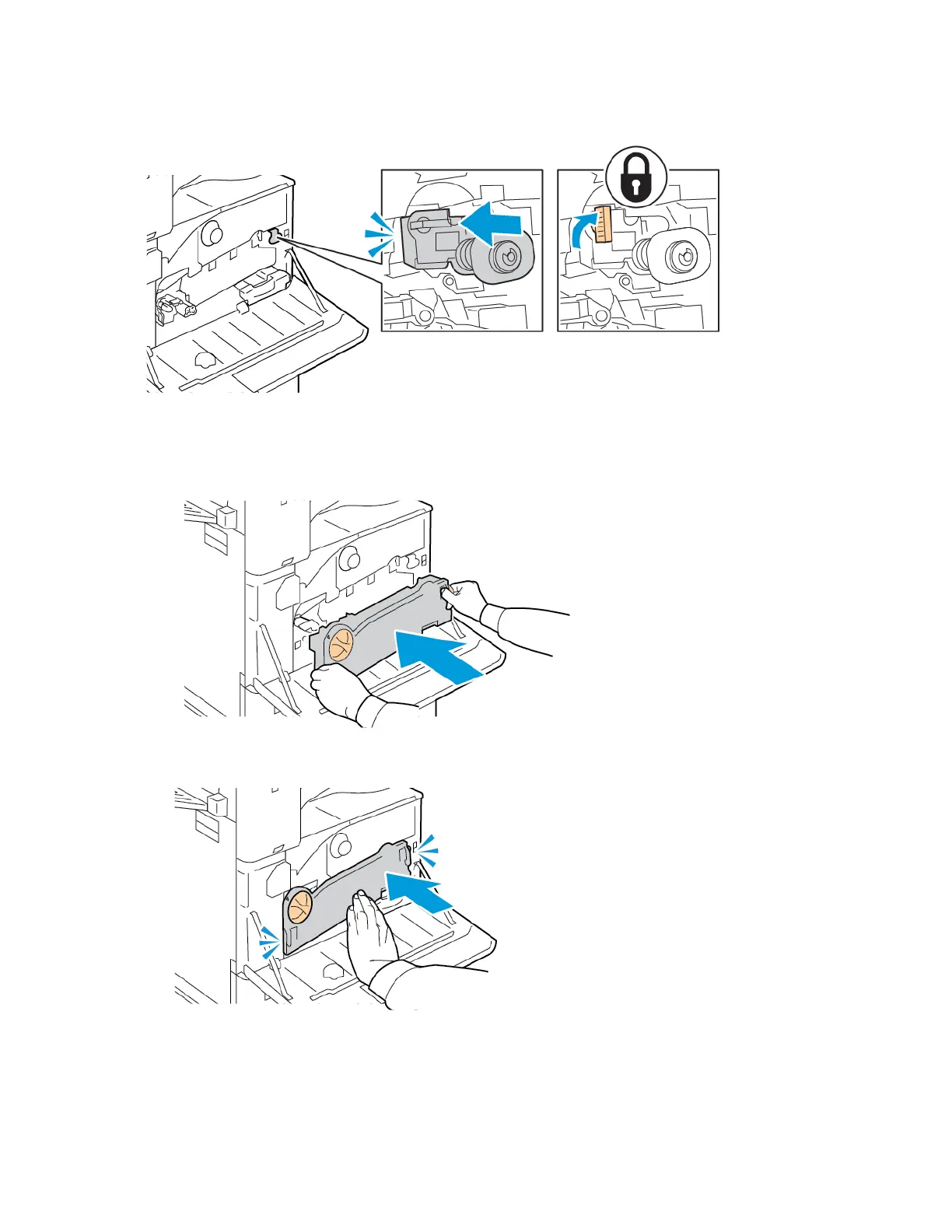

7. Push the belt cleaner until it clicks into place, then to lock the belt cleaner, turn the orange lever to the right.
8. To insert the waste toner transport unit:
a. Position the waste toner transport unit as shown.
b. Press the waste toner transport unit toward the printer, until both ends click into place.
260 Xerox
®
AltaLink
®
B8145/B8155/B8170 Series Multifunction Printer User Guide
Maintenance
