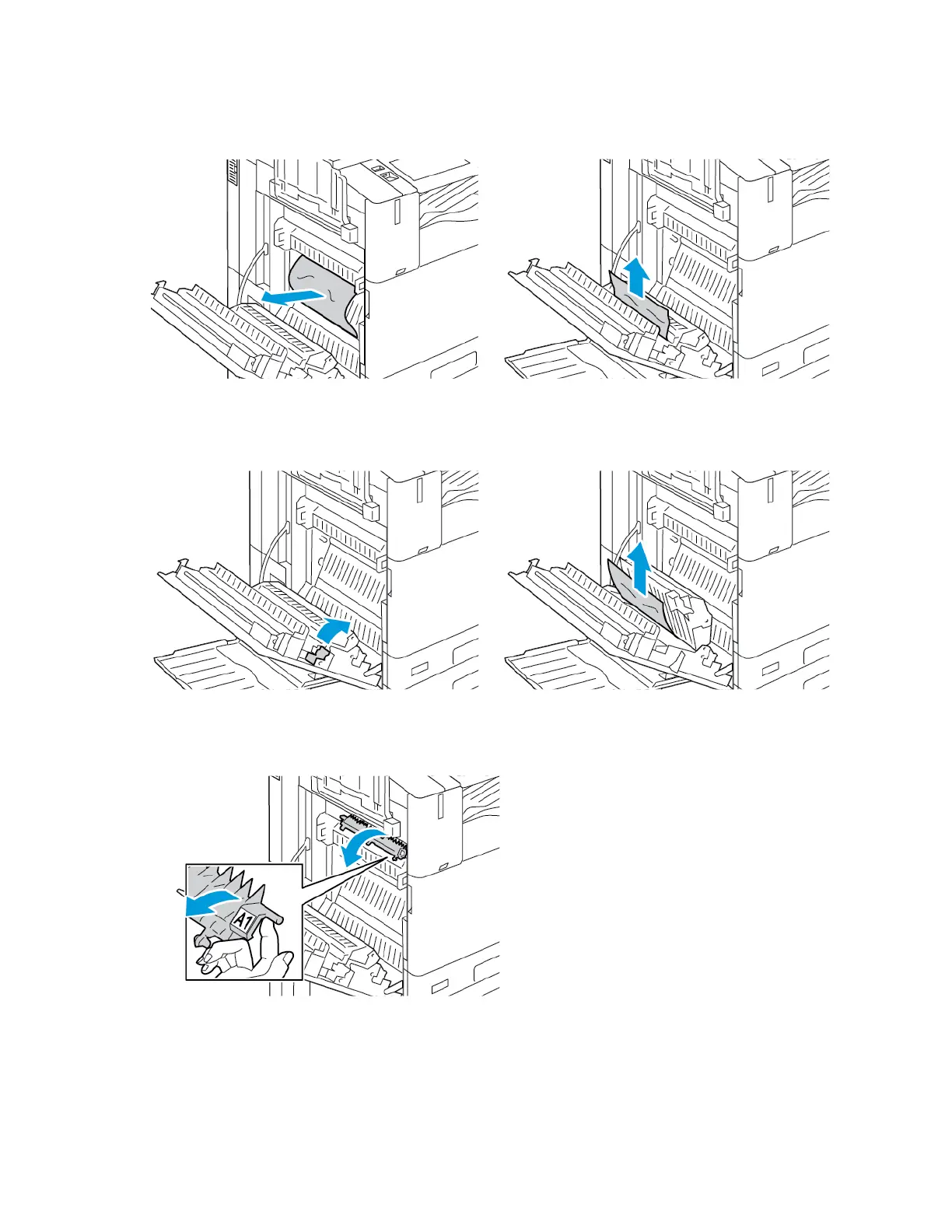

3. Remove the jammed paper.
4. If paper is jammed on the inside of door A, lift handle A3, then remove the jammed paper. Return handle A3 to
the original position.
5. If paper is jammed in the fuser, remove the jammed paper from areas A1 and A2.
a. To open the paper guide, pull handle A1 toward you.
Xerox
®
AltaLink
®
B8145/B8155/B8170 Series Multifunction Printer User Guide 301
Troubleshooting
