User’s Guide
100
SMTP Link Log Viewer

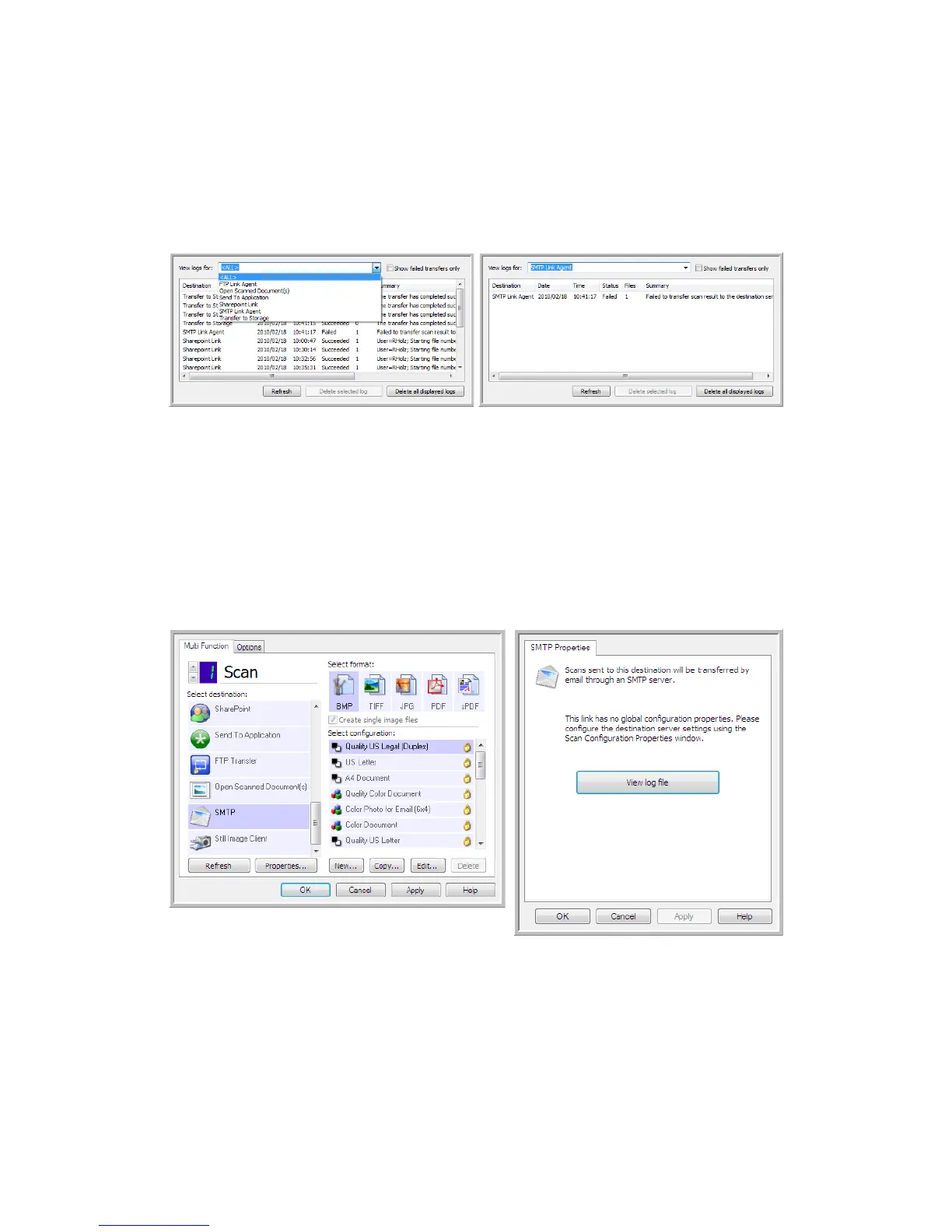

The OneTouch Link Log Viewer opens automatically when scanning is complete. Click on the menu
arrow next to View logs for and select
SMTP Link Agent from the list to display the transfer history for
the SMTP link only.
Double-click on any of the line items to open the selected log file in the Log File Detail View. If you
open a failed transfer, the log file may contain the information you need to determine why the transfer
failed. After you address the failure indicated in this log file, you can click the Retry button to resend
the document to the server.
Click on the Properties button to open the Log Viewer from the SMTP OneTouch Link Properties
window. There are no global configuration properties for the SMTP destination application, all
configuration is done using the Scan Configuration Properties window as described in the previous
section.

Xerox DocuMate 3115 Specifications

General

Film scanning	No
Color scanning	-
Duplex scanning	Yes
Input color depth	- bit
Maximum scan size	- mm
Output color depth	24 bit
ADF scan speed (b/w, A4)	15 ppm
Optical scanning resolution	600 x 600 DPI
Duplex ADF scan speed (b/w, A4)	30 ipm
Scanner type	ADF scanner
Product color	Black, Grey
Scan drivers	TWAIN, WIA
Daily duty cycle (max)	500 pages
Maximum scan area (ADF)	216 x 356 mm
ISO A-series sizes (A0...A9)	A4
USB version	2.0
Standard interfaces	USB 2.0
Power supply type	AC
Mac operating systems supported	Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	86 mm
Width	298 mm
Height	71 mm
Weight	1600 g
