Xerox
®
DocuMate
®
3115
User’s Guide
170

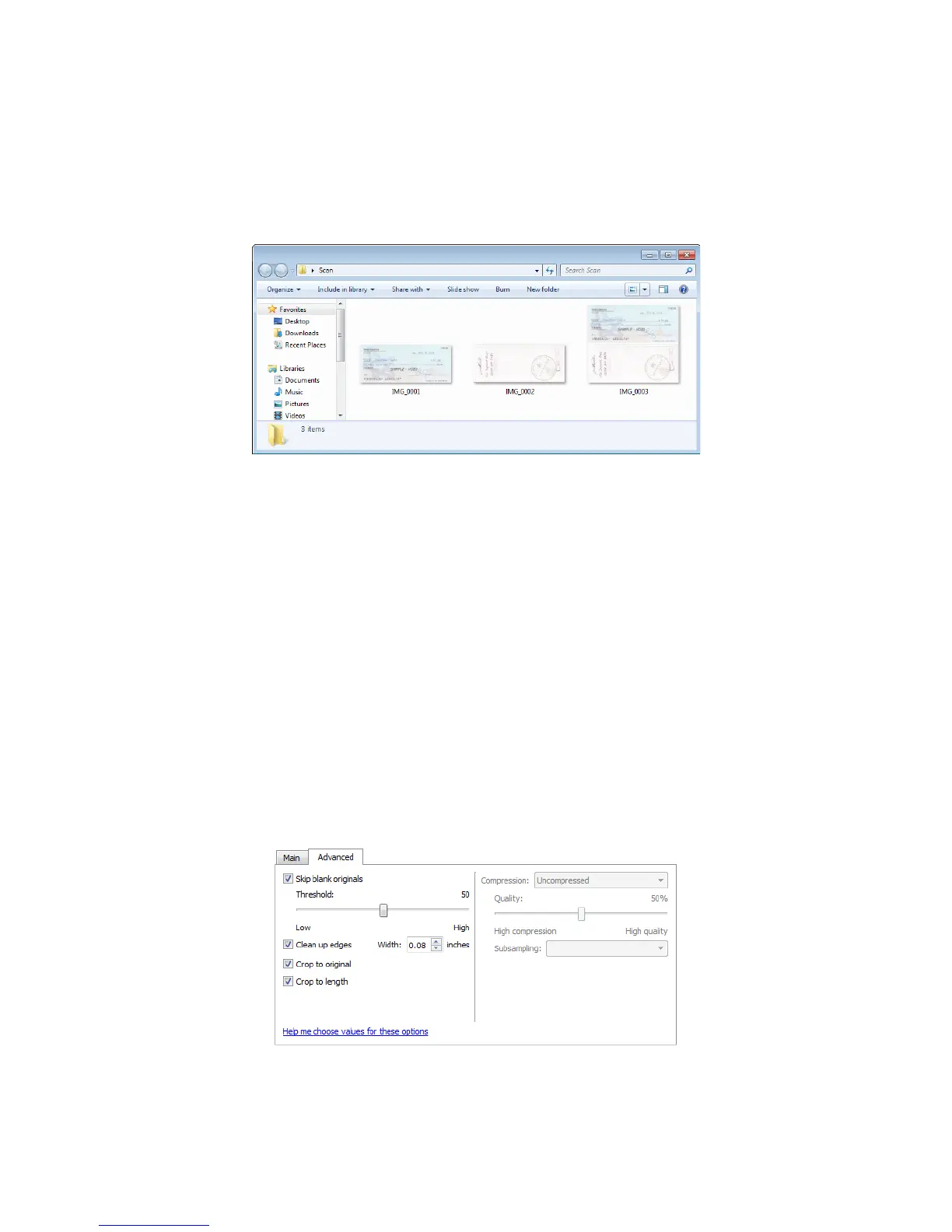

The following image shows a cheque scanned in duplex mode without Merge two sides enabled, and
the same cheque scanned with Merge two sides enabled. When Merge two sides is not enabled, side 1
and side 2 of the cheque are saved in two separate files (IMG_0001 and IMG_0002 respectively).
With Merge two sides enabled, both sides of the cheque are in a single file (IMG_0003). If you are
scanning a stack of items using a multipage file format, such as a PDF file, then each page in the final
file will have both the front and back images of the scanned items.
Height threshold
Input the maximum height of images to be merged. The sides will not be merged if the height of
either the front or rear image exceeds this value. For example, if you are scanning a batch of mixed
documents such as cheques and statements, you may want both sides of the cheques merged into one
image but not the statements. The Height threshold needs to be lower than the length of the
documents you do not want merged into a single file.
Select one of the options in the Merge two sides list to enable this field. Note that you will also need to
enable
Long document if you want to have the maximum height threshold be longer than 17 inches
(431 mm).
Advanced Panel Options
The options in this panel may also appear in the Main panel, but with additional settings for you to
fine-tune the feature you've selected. Select the
Advanced source configuration mode to show this
panel.
To Next Page
