5. Discard the worn roller. It cannot be repaired.
6. Before installing the new roller, clean any dust that may have gotten on it during shipping.

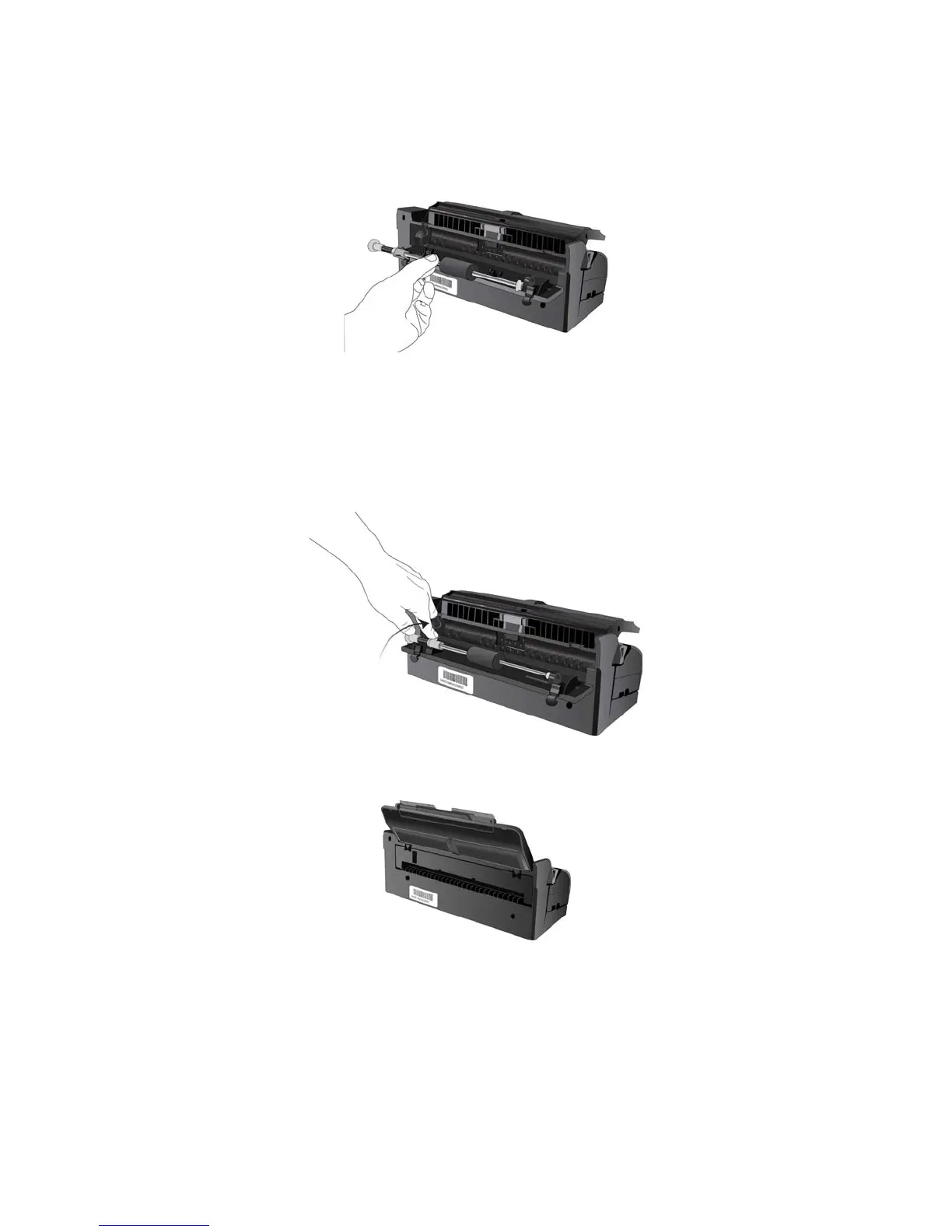

7. Insert the right end of the roller into its housing socket in the scanner.
8. Align the lock tab, on the orange lock flange, with the slot in the scanner.
9. Rotate the lock tab into the slot on the scanner.
10. Press down on the lever to lock the roller in place.
The lock will “click” into place when it is secure. However, if it does not rotate easily into the
housing, make sure the flange is properly seating in its latch.
11. Close the rear cover when you’re finished.
